Auto-Latching Pocket Door Locks

1-3/8" [35mm] Door Thickness

2-3/8" [60mm] Standard Backset

2-1/8" [54mm] Lock Bore

15/16" [24mm] End Bore

Privacy Lock Function

Self-Latching Lock Operation

US3, US15, Black Available Finishes

Residential Product Grade

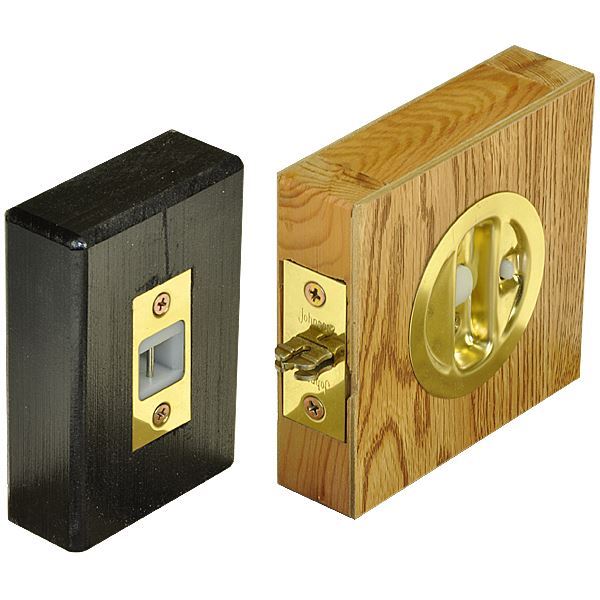

The perfect complement for any pocket door installation. Lock features automatic latching, just slide the door closed and it is latched. Push button latch disengagement for easy door opening. Simple touch-of-a-button privacy locking with emergency release. Universal handing, one lock functions in both right or left slide direction. Ideal for both single or converging pocket door applications.

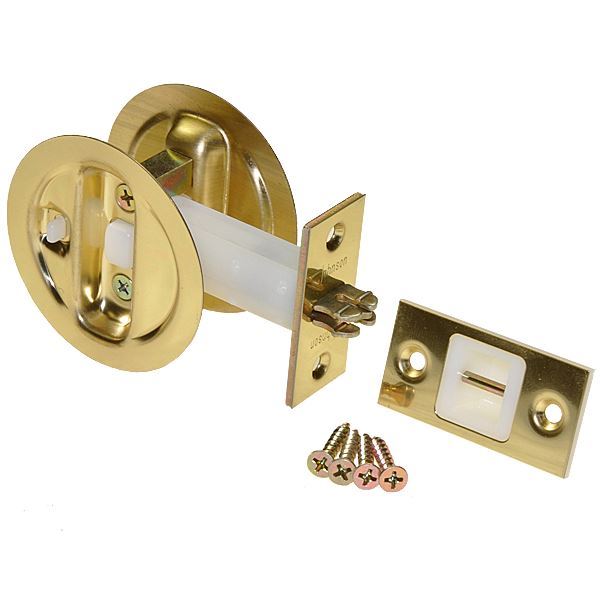

15213PK1 Auto-Latching Pocket Door Lock Set, 1-3/8" Door

$31.98

1-3/8" [35mm] Door Thickness

2-3/8" [60mm] Backset

2-1/8" [54mm] Lock Bore

15/16" [24mm] Cross Bore

Privacy Lock Function

Auto-Latching Lock Operation

US3 Bright Brass Finish

Manufacturer part number: 15213PK1

Qty:

21-3PPK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door

$10.71

1-3/8" [35mm] Door Thickness

2-1/8" [28mm] Lock Bore

Dummy Lock Function

US3 Bright Brass Finish

Manufacturer part number: 21-3PPK2

Qty:

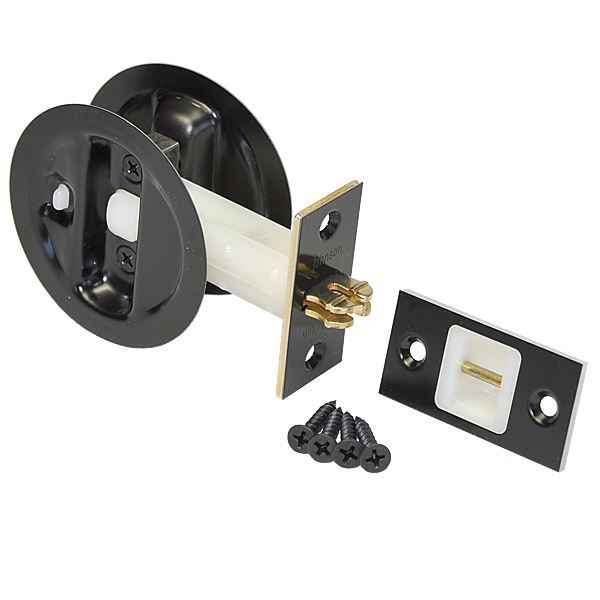

1521-BLK Auto-Latching Pocket Door Lock Set, 1-3/8" Door

$31.98

1-3/8" [35mm] Door Thickness

2-3/8" [60mm] Backset

2-1/8" [54mm] Lock Bore

15/16" [24mm] Cross Bore

Privacy Lock Function

Auto-Latching Lock Operation

Black Finish

Manufacturer part number: 1521-BLK

Qty:

121BLK 1-3/8" Pocket Door Dummy Pull Set

$10.83

1-3/8" [35mm] Door Thickness

2-1/8" [28mm] Cross Bore Door Prep

Black Finish

Manufacturer part number: 121BLK

Qty:

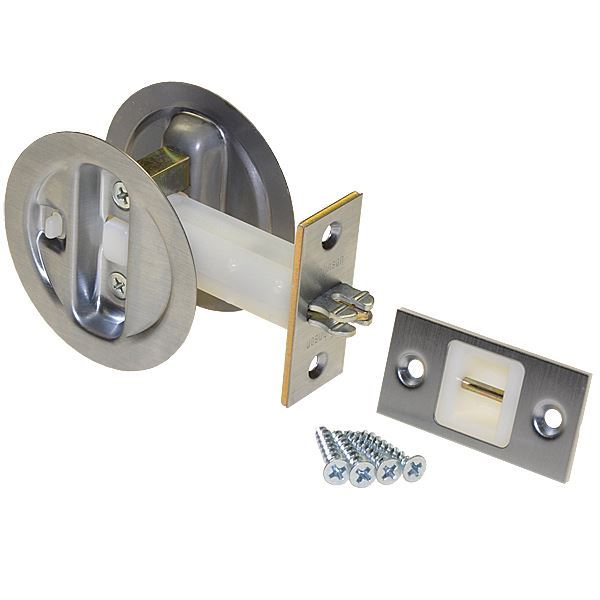

152115P1 Auto-Latching Pocket Door Lock Set, 1-3/8" Door

$32.73

1-3/8" [35mm] Door Thickness

2-3/8" [60mm] Backset

2-1/8" [54mm] Lock Bore

15/16" [24mm] Cross Bore

Privacy Lock Function

Auto-Latching Lock Operation

US15 Satin Nickel Finish

Manufacturer part number: 152115P1

Qty:

21-15PK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door

$10.93

1-3/8" [35mm] Door Thickness

2-1/8" [28mm] Lock Bore

Dummy Lock Function

US15 Satin Nickel Finish

Manufacturer part number: 21-15PK2

Qty:

134US3 1-3/4" Dummy Pocket Door Pull Set

$14.71

1-3/4" [44mm] Door Thickness

2-1/8" [28mm] Cross Bore Door Prep

US3 Bright Brass Finish

Manufacturer part number: 134US3

Qty:

134BLK 1-3/4" Pocket Door Dummy Pull Set

$14.71

1-3/4" [44mm] Door Thickness

2-1/8" [28mm] Cross Bore Door Prep

Dummy Function

Black Finish

Manufacturer part number: 134BLK

Qty:

134US15 1-3/4" Dummy Pocket Door Pull Set

$14.71

1-3/4" [44mm] Door Thickness

2-1/8" [28mm] Cross Bore Door Prep

US15 Satin Nickel Finish

Manufacturer part number: 134US15

Qty:

Overview
Specifications

Products specifications

Door Thickness	1-3/8" [35mm]
Lock Back Set	2-3/8" [60mm]
Lock Bore	2-1/8" [54mm]
Cross Bore	15/16" [24mm]
Lock Type	Pocket Door Tube Latch
Lock Function	Privacy Pocket
Lock Operation	Self-Latching, Push Button Release
Product Grade	Residential
Country of Origin	U.S.A.

Products specifications

Door Thickness	1-3/8" [35mm]
Lock Back Set	2-3/8" [60mm]
Lock Bore	2-1/8" [54mm]
Cross Bore	15/16" [24mm]
Lock Type	Pocket Door Tube Latch
Lock Function	Privacy Pocket
Lock Operation	Self-Latching, Push Button Release
Product Grade	Residential
Country of Origin	U.S.A.
