Picture of 2610F Wall Mount Sliding Door Hardware
Picture of 2610F Wall Mount Sliding Door Hardware Picture of 2610F Wall Mount Sliding Door Hardware Picture of 2610F Wall Mount Sliding Door Hardware Picture of 2610F Wall Mount Sliding Door Hardware

2610F Wall Mount Sliding Door Hardware

  • 200lbs [91kg] Max Weight Per Door

  • 1" [25mm] to 1-3/4" [44mm] Door Thickness
  • 192" 16/0 [4877mm] Max. Track Length
  • Top Mount Hanger Type

  • Extruded Aluminum Box Track W/Fascia Track Type

  • Mill Grade or Anodized Aluminum Track Finish

  • Commercial Grade Top Hung Wall Mount Sliding Door Hardware

    • Standard Wheel Hangers 125lbs. (57kg) max per door

    Soft Close Hangers 165lbs. (75kg) max per door

    Ball Bearing Wheel Hangers 200lbs. (91kg) max per door

    2610F Installation Instructions

    Products specifications
    Max. Weight Per Door200lbs. [91kg] (W/1125 Ball Bearing Door Hanger)
    ApplicationInterior Residential/Commercial
    Door Thickness1" [25mm] to 1-3/4" [44mm]
    Series Track2610F
    Track FinishMill Grade Aluminum or Anodized Aluminum
    Track Material6063T6 Extruded Aluminum

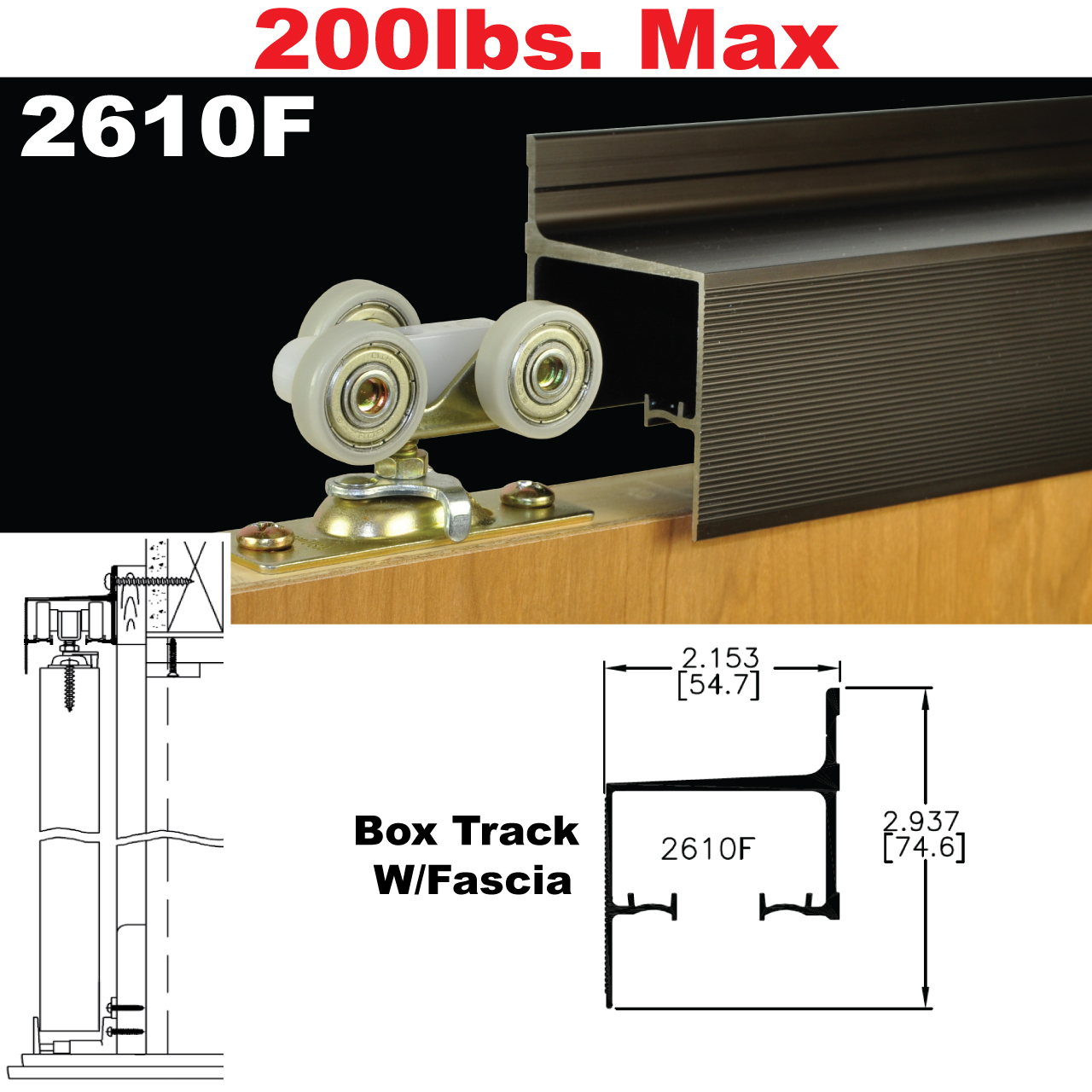

    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door200lbs. [91kg] (W/1125 Ball Bearing Door Hanger)
    ApplicationInterior Residential/Commercial
    Door Thickness1" [25mm] to 1-3/4" [44mm]
    Series Track2610F
    Track FinishMill Grade Aluminum or Anodized Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
