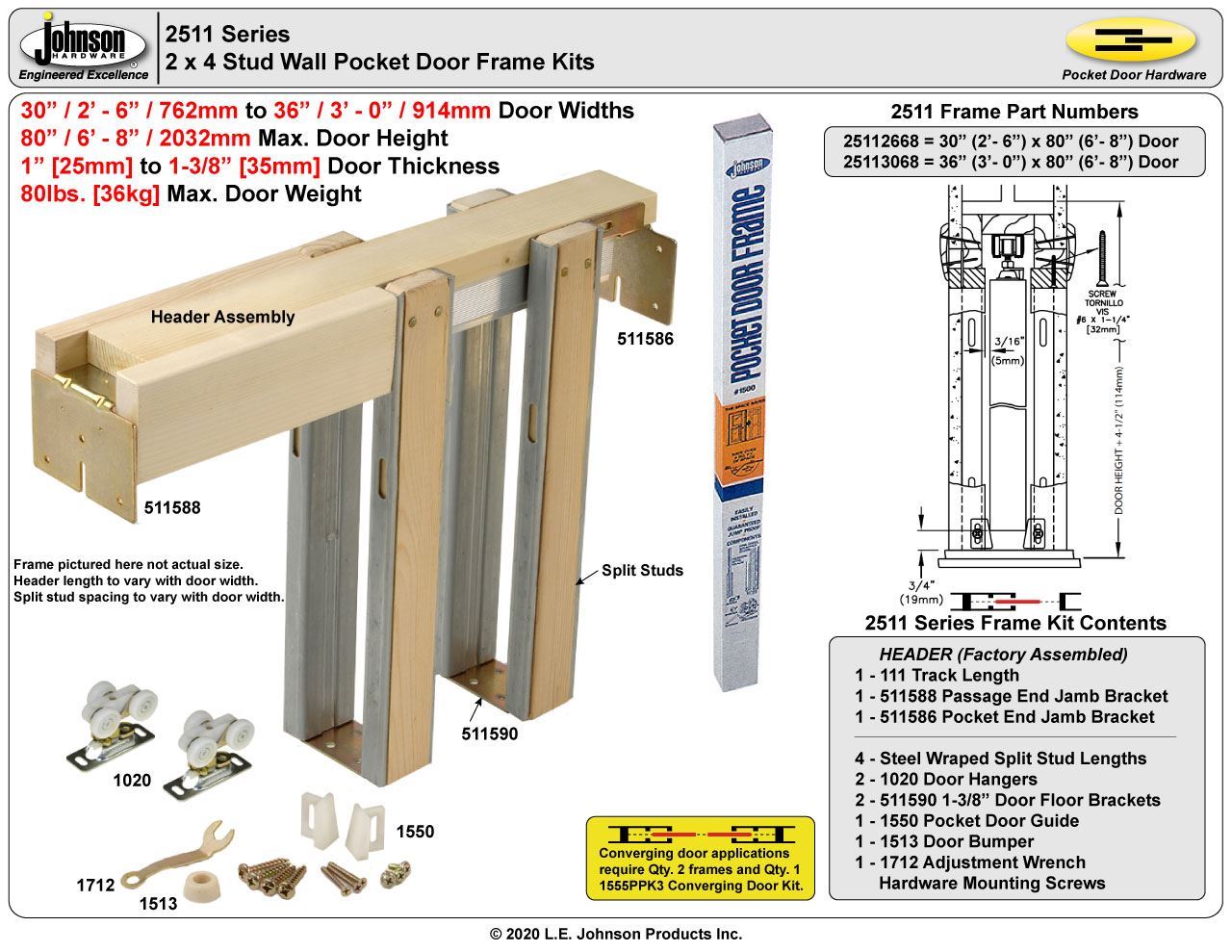

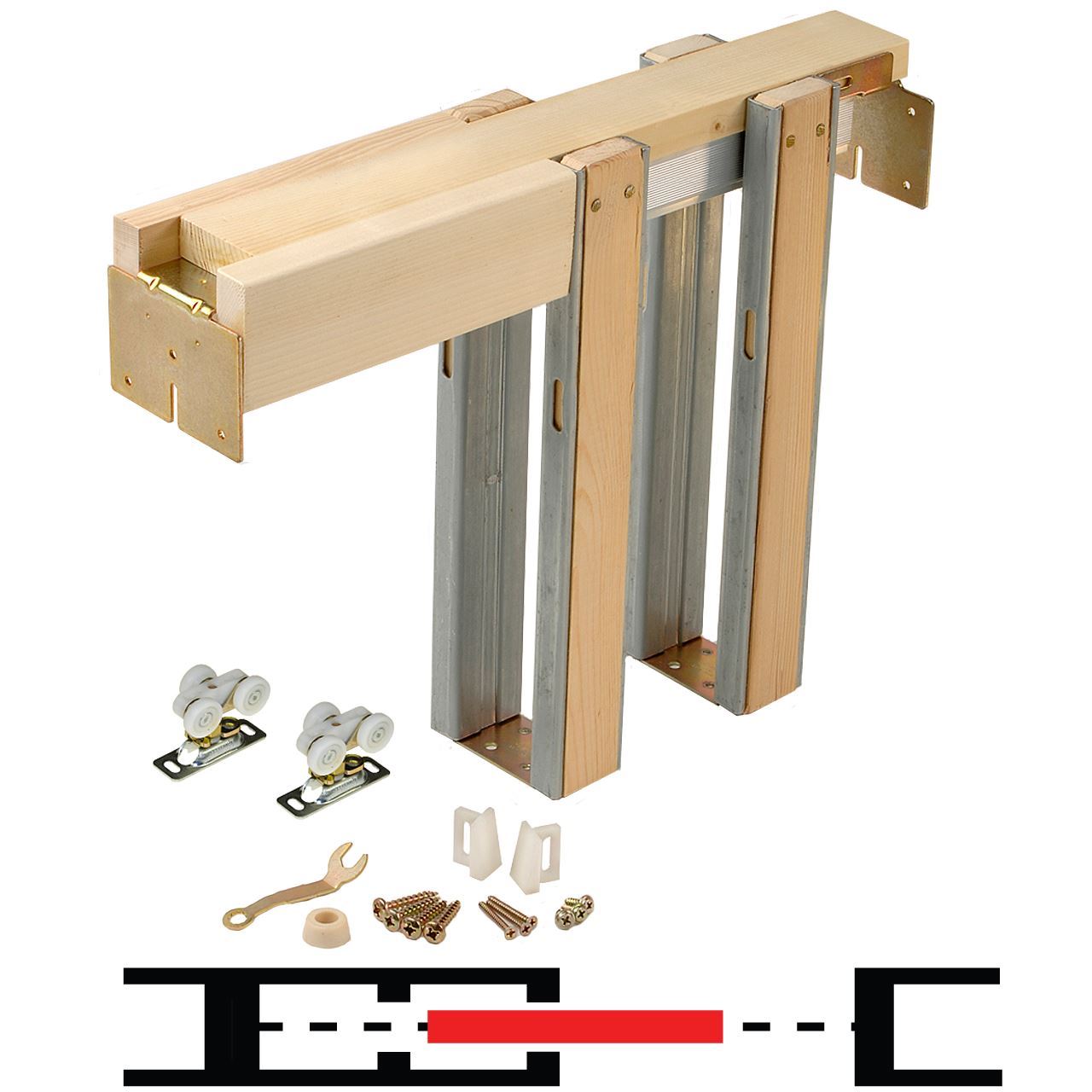

Picture of 2511 Series 30" x 80" Pocket Door Frame
Picture of 2511 Series 30" x 80" Pocket Door Frame Picture of 2511 Series 30" x 80" Pocket Door Frame

2511 Series 30" x 80" Pocket Door Frame

$99.99
$158.08
DISCONTINUED - FACTORY CLOSEOUT
Once they are gone, they are GONE!
  • 80lbs [36kg] Max. Weight Per Door

  • 30" [762mm] x 80" [2032mm] Max. Door Size

  • 1" [25mm] to 1-3/4" [44mm]* Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

    • *1-3/4" [44mm] Doors Require 1575PPK3 Adaptor Kit
    Manufacturer part number: 25112668
    Availability: 66 in stock
    Products specifications
    Max. Weight Per Door80lbs. [36kg]
    Max. Door Width30" (2'- 6") [762mm]
    Max. Door Height80" (6'- 8") [2032mm]
    Door Thickness3/4" [19mm] to 1-3/8" [35mm]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
    Pocket Door FramesStandard Wheel Hanger
    Products specifications
    Max. Weight Per Door80lbs. [36kg]
    Max. Door Width30" (2'- 6") [762mm]
    Max. Door Height80" (6'- 8") [2032mm]
    Door Thickness3/4" [19mm] to 1-3/8" [35mm]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
    Pocket Door FramesStandard Wheel Hanger

    Related Products

    Picture of 1575PPK3 1-3/4" [44mm] Door Adaptor Kit (DISCONTINUED)

    1575PPK3 1-3/4" [44mm] Door Adaptor Kit (DISCONTINUED)

    $8.20
    NO LONGER IN PRODUCTION AND NO LONGER REQUIRED. NEW ALL STEEL Split Stud Pocket Door Frame (Series 1500SC/HD/PF and 2000) accept 1-3/4" doors WITHOUT requiring adaptor kit.
  • Frame Series Compatibility: DISCONTINUED 1500PF Series and DISCONTINUED 2511 SERIES

  • Spaces Split Studs to accept 1-3/4" [44mm] in 2x4 wood stud wall.

  • Only compatible with steel wrapped wood split studs.

  • 1575PPK3 Installation Instructions
    • Picture of 1555PPK3 Converging Door Kit

    1555PPK3 Converging Door Kit

    $10.08
  • Frame Series Compatibility: 1500, 1500HD, 1500SC, 1560, 1560SC, 2511

    • The 1555PPK3 Converging Door Kit connects 2 pocket door frame headers together allowing for 2 door (converging) pocket door installations.
