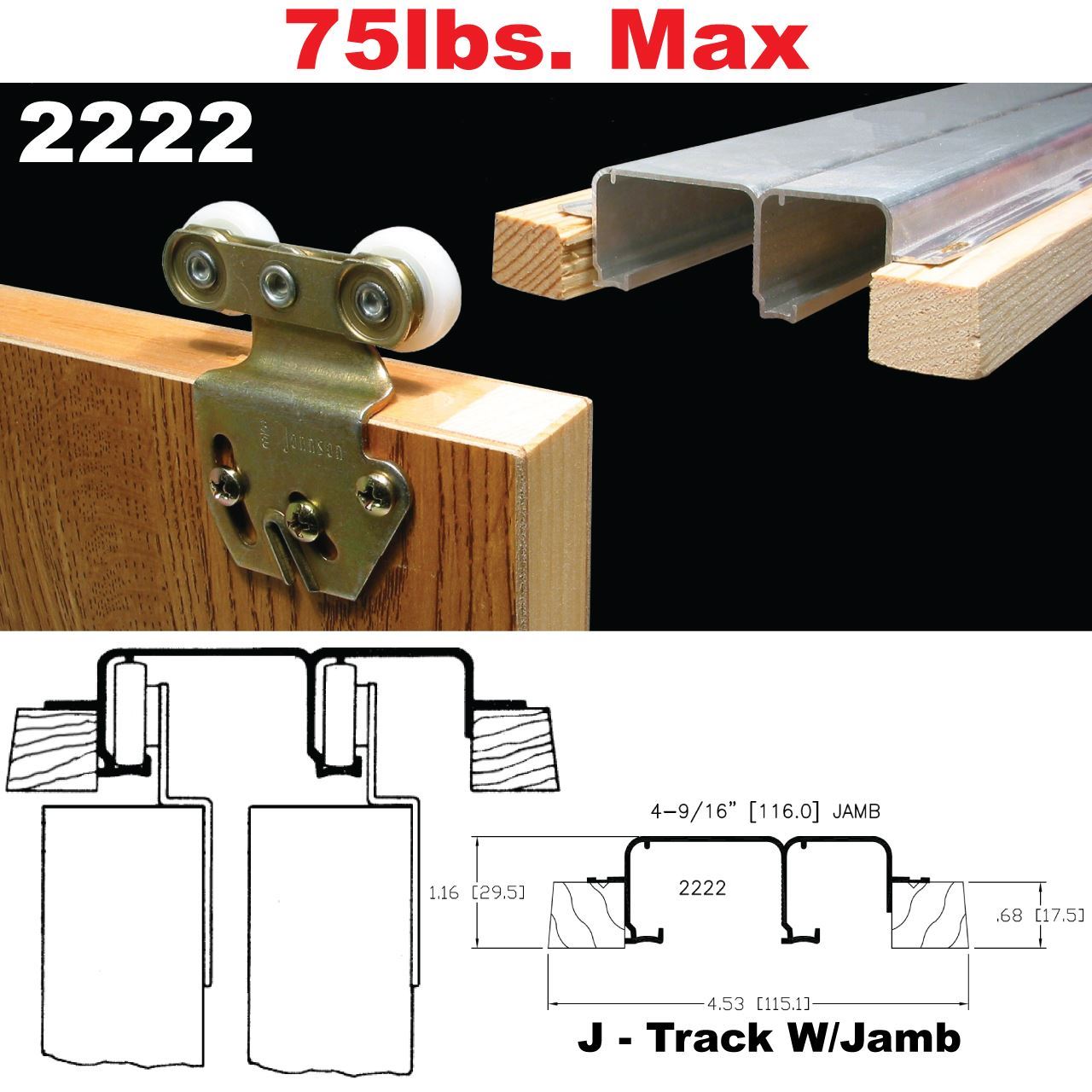

Picture of 2222 Sliding Bypass Door Hardware

2222 Sliding Bypass Door Hardware

  • 75lbs [34kg] Max Weight Per Door

  • 1-3/8" [35mm] Door Thickness
  • 4-9/16" [115mm] Wall Structure Thickness

  • Side Mount Hanger Type

  • Single Extrusion Twin Rail Header Mount Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Residential Grade Top Hung Sliding Door Hardware

    • 2222 Installation Instructions

    Products specifications
    Max. Weight Per Door75lbs. [34kg] (W/Twin Wheel Hangers)
    ApplicationInterior Residential
    Door Thickness1-3/8" [35mm]
    Series Track2222
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileDouble Leg J-Track
    Hanger TypeSide Mount
    Wheel Dia.7/8"
    Wheel TypeMachine Turned and Balanced Nylon, Factory Greased
    Steel Components12-14 Gauge
    Product GradeResidential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door75lbs. [34kg] (W/Twin Wheel Hangers)
    ApplicationInterior Residential
    Door Thickness1-3/8" [35mm]
    Series Track2222
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileDouble Leg J-Track
    Hanger TypeSide Mount
    Wheel Dia.7/8"
    Wheel TypeMachine Turned and Balanced Nylon, Factory Greased
    Steel Components12-14 Gauge
    Product GradeResidential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
