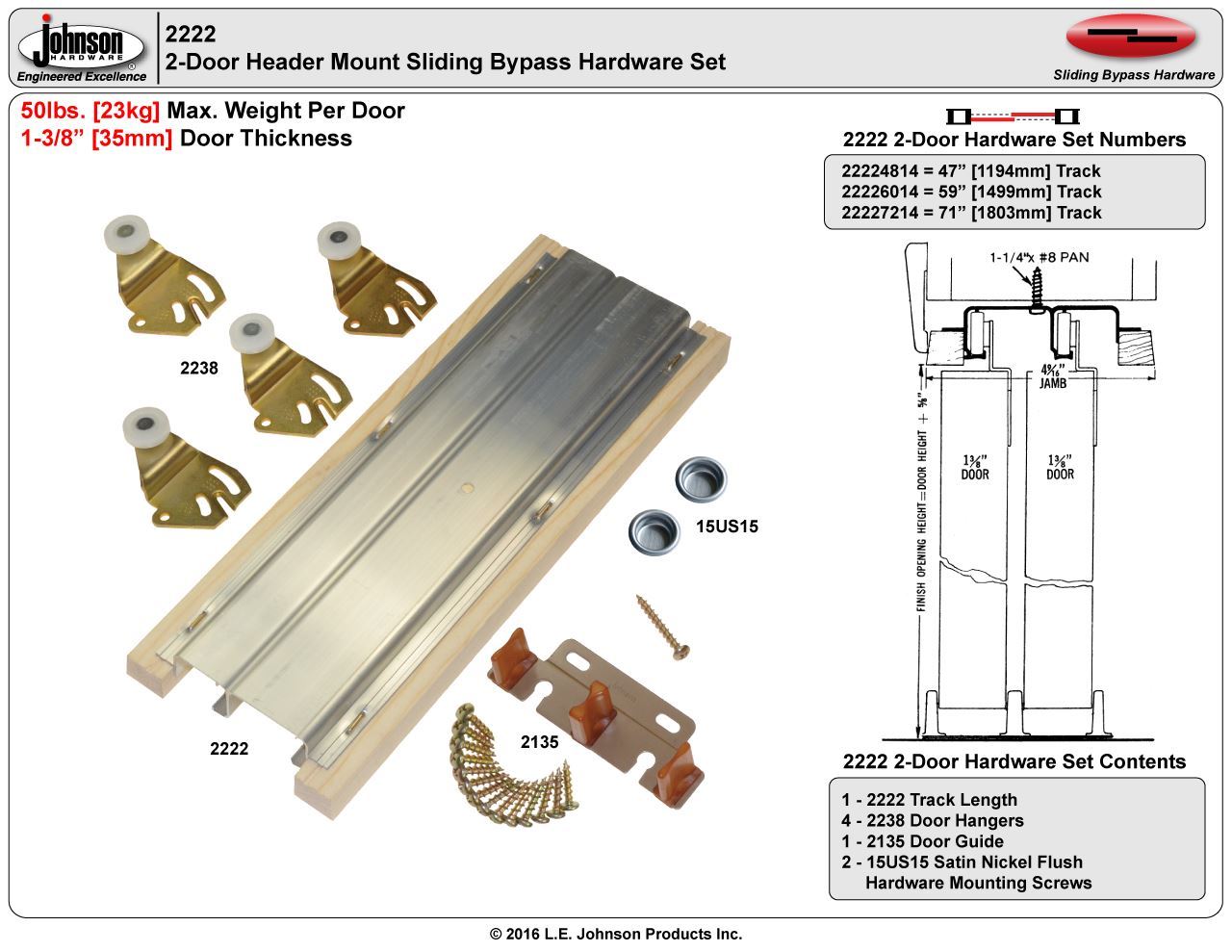

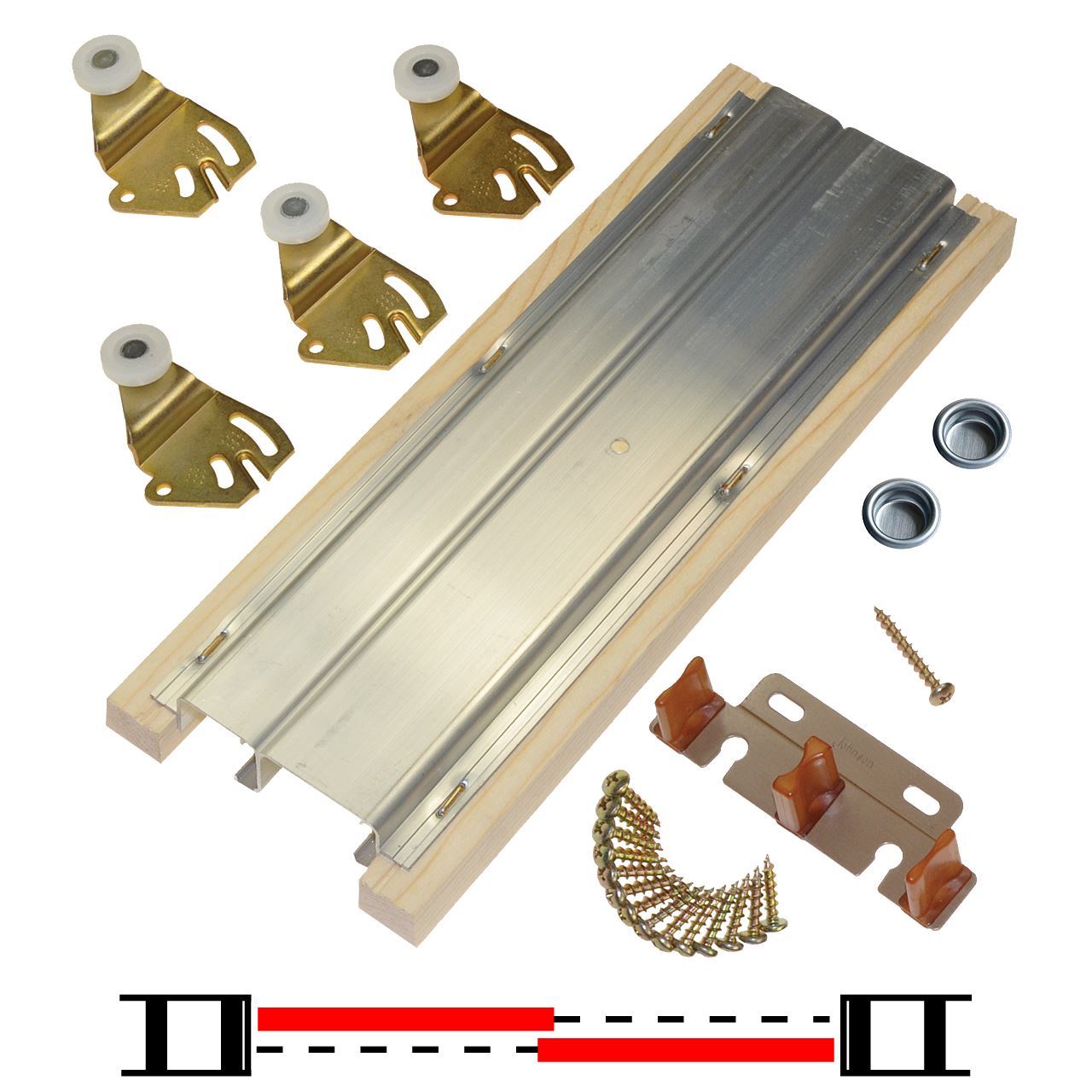

22224814 2222 2-Door Hardware Set, 47" 3/11 [1194mm] Track Length

$46.96
  • 75lbs [34kg] Max. Per Door

  • 47" 3/11 [1194mm] Track Length
  • 24" 2/0 [610mm] x 2 Max. Door Width

  • 1-3/8" [35mm] Door Thickness
  • 4-9/16" [115mm] Finish Wall Thickness

  • Single Extrusion Twin Rail Header Mount Track Type

  • Nylon Wheel Hanger Type

  • Residential Grade Sliding Bypass Door Hardware

    • 2222 Installation Instructions
    Manufacturer part number: 22224814
    Products specifications
    Hardware SetsSingle Wheel
    Max. Door Width24" X 2 (2' - 0" X 2) [610mm X 2]
    Track Length47" (3' - 11") [1194mm]
    Doors2 - Doors
    Max. Weight Per Door50lbs. [23kg]
    Products specifications
    Hardware SetsSingle Wheel
    Max. Door Width24" X 2 (2' - 0" X 2) [610mm X 2]
    Track Length47" (3' - 11") [1194mm]
    Doors2 - Doors
    Max. Weight Per Door50lbs. [23kg]
