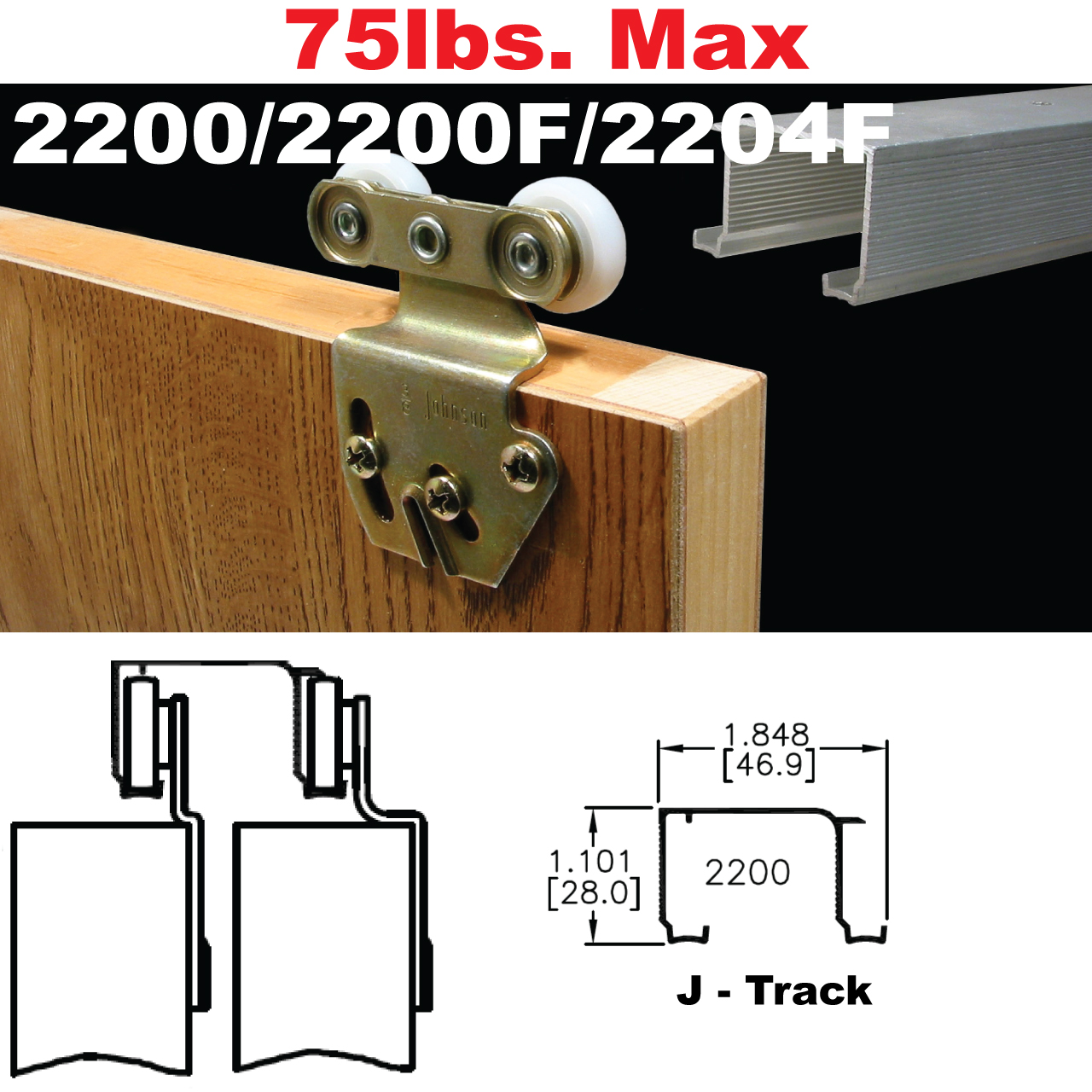

Picture of 2200 / 2200F / 2204F Sliding Bypass Door Hardware

2200 / 2200F / 2204F Sliding Bypass Door Hardware

  • 75lbs [34kg] Max Weight Per Door

  • 3/4" [19mm] OR 1-3/8" [35mm] Door Thickness
  • Side Mount Hanger Type

  • Single Extrusion Twin Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Residential Grade Top Hung Sliding Door Hardware

    • 2200/1166 Installation Instructions

    Products specifications
    Max. Weight Per Door75lbs. [34kg] (W/Twin Wheel Hangers)
    ApplicationInterior Residential
    Door Thickness3/4" [19mm] or 1-3/8" [35mm]
    Series Track2200
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileDouble Leg J-Track
    Hanger TypeSide Mount
    Wheel Dia.7/8"
    Wheel TypeMachine Turned and Balanced Nylon, Factory Greased
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeResidential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door75lbs. [34kg] (W/Twin Wheel Hangers)
    ApplicationInterior Residential
    Door Thickness3/4" [19mm] or 1-3/8" [35mm]
    Series Track2200
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileDouble Leg J-Track
    Hanger TypeSide Mount
    Wheel Dia.7/8"
    Wheel TypeMachine Turned and Balanced Nylon, Factory Greased
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeResidential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
