Picture of 2066 DAMPER/ACTIVATOR SET
Picture of 2066 DAMPER/ACTIVATOR SET Picture of 2066 DAMPER/ACTIVATOR SET

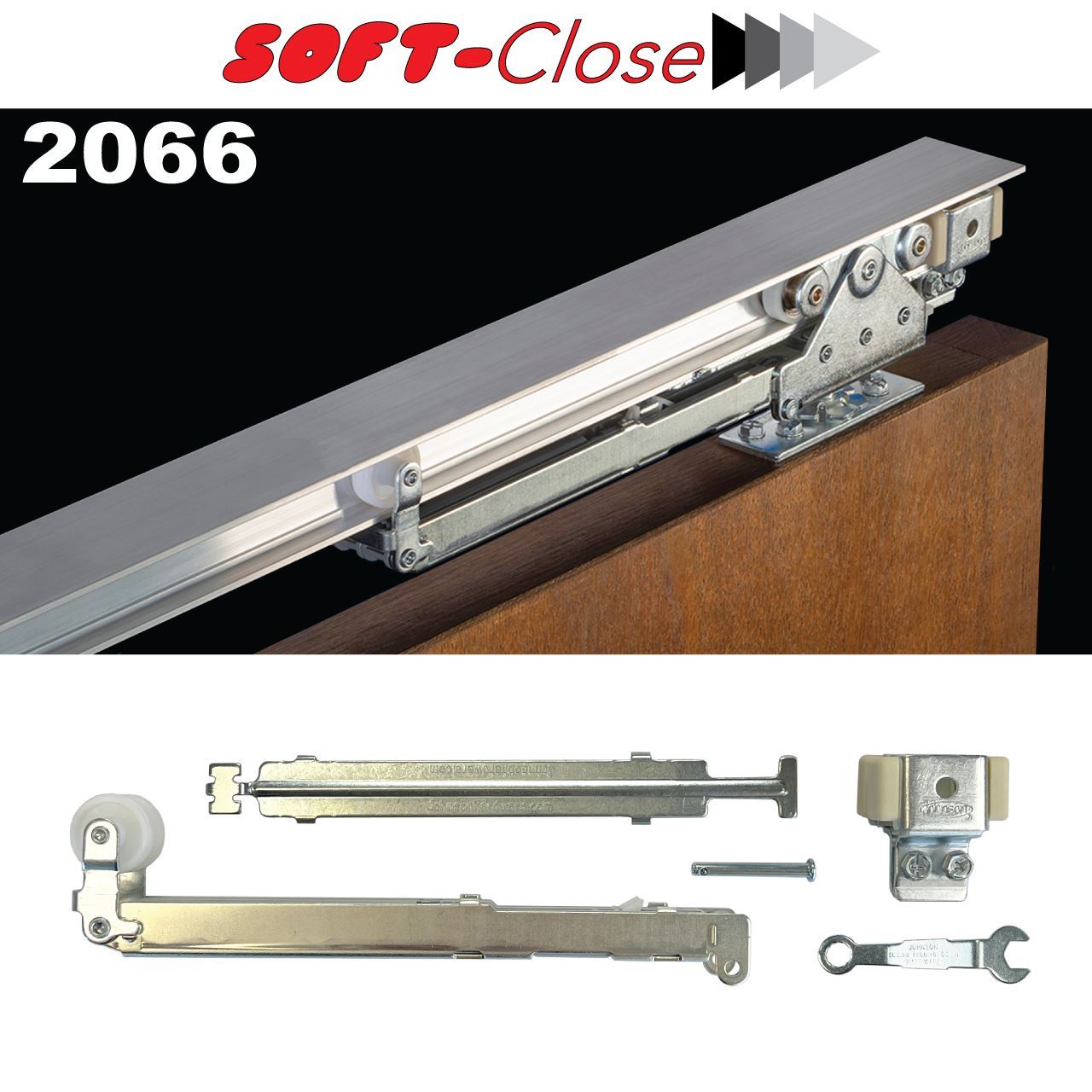

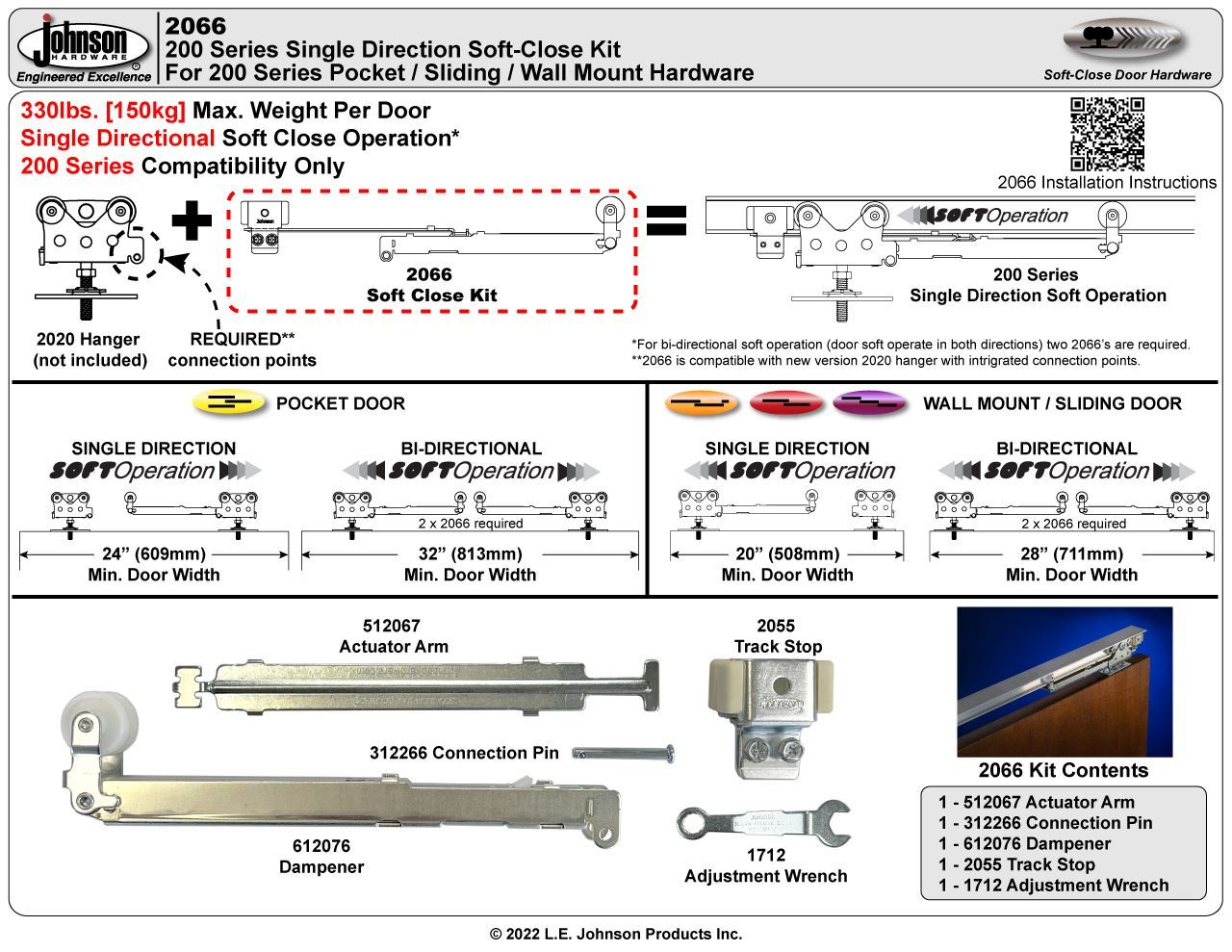

2066 DAMPER/ACTIVATOR SET

$73.95
Single Direction Soft Close Kit (2020 Door Hanger NOT included)
  • Single Direction Soft Operation

  • 330lbs. [150kg] Max. Door Weight

  • 200 Series Track Compatibility

  • Compatible with new version 2020 Door Hanger ONLY

  • 2000, 2060 Series Pocket Door Frame Compatibility

  • 200PD, 200BP, 200MP, 200MD, 200SD, 200SM, 200WM, 200WF, 200WG Series Hardware Compatibility

    • 2066 Installation Instructions
    Manufacturer part number: 2066

    Related Products

    Picture of 200 Series Track

    200 Series Track

    From $47.22
  • 192" 16/0 [4877mm] Max. Length

  • Commercial/Residential Application

  • I-Beam Track Profile

  • 6063T6 Extruded Aluminum Track Material

  • Mill Grade Aluminum Track Finish

    • Picture of 2020 SLIDING HANGER W/SCREWS

    2020 SLIDING HANGER W/SCREWS

    $35.12
  • 400lbs [181kg] Weight capacity

  • 1" [25mm] Wheel Diameter

  • Nylon Encapsulated Ball Bearing Wheel

  • Top Mount Hanger Plate

  • Commercial Grade

  • Compatible with 200 Series Track Only

    • Picture of 2055 TRACK BUMPER STOP BULK

    2055 TRACK BUMPER STOP BULK

    $8.66
    Track Stop for 200 Series Track
    Picture of 2000/SC Series Pocket Door Frames

    2000/SC Series Pocket Door Frames

    From $276.67
  • 400lbs [181kg] Max. per door standard operation

  • 335lbs [150kg] Max. per door soft operation

  • 60" 5/0 [1524mm] x 108" 9/0 [2743mm] Max. door size

  • 1-1/8" [29mm] - 1-3/4" [44mm] Door thickness

  • 3-1/2" [89mm] (2x4) Min. wall structure thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws included
  • Commercial Grade Pocket Door Frame Kit

    • 2000 Installation Instructions
    2066 Installation Instructions
    Picture of 2060/SC Series Pocket Door Frames

    2060/SC Series Pocket Door Frames

    From $355.63
  • 400lbs [181kg] Max. Per Door

  • 60" 5/0 [1524mm] x 120" 10/0 [3048mm] Max. Door Size

  • 1-1/8" [29mm] - 2-1/4" [57mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

    • 2060 Installation Instructions
    2066 Installation Instructions
    Picture of 200PD Pocket Door Hardware

    200PD Pocket Door Hardware

    From $107.54
  • 330lbs [150kg] max. per door - SC soft operation

  • 400lbs [181kg] max. per door - PD standard operation

  • 1-1/8" [29mm] min. door thickness
  • 192" 16/0 [4877mm] max. track length
  • Commercial Grade top hung pocket door hardware

    • 200PD Instructions

    2066 Soft-Close Instructions

    32" 2/8 [876mm] min. door width for bidirectional soft operation

    24" 2/0 [624mm] min. door width for single direction soft operation
    Picture of 200BP Bypass Pocket Door Hardware

    200BP Bypass Pocket Door Hardware

    From $271.22
  • 400lbs [181kg] Max. Weight Per Door

  • 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" 4/0 [1219mm] Max. Width Per Door

  • 9-1/4" (2 x 10) [235mm] Min. Wall Structure Thickness

  • *189-1/2" (15' - 3/4") [4813mm] Max. Opening Width

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

    • * 4-Door Configuration

    200BP Installation Instructions

    Picture of 200MP Tri-Pass Pocket Door Hardware

    200MP Tri-Pass Pocket Door Hardware

    From $460.49
  • 400lbs [181kg] Max. Weight Per Door

  • 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 11-1/4" [286mm] Min. Wall Structure Thickness

  • *283" (25' - 1/2") [7188mm] Max. Opening Width

  • Commercial Grade Top Hung Tri-pass Pocket Door Hardware

    • * 6-Door Configuration

    200MP Installation Instructions

    Picture of 200MD Multi-Pass Sliding Door Hardware

    200MD Multi-Pass Sliding Door Hardware

    From $434.91
  • 400lbs [181kg] Max Weight Per Door

  • 6-1/2" [165mm] Min Wall Structure Thickness*

  • 1-1/8" [29mm] Min Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

    • *Wall Structure Thickness Varies With Door Thickness

    200MD Installation Instructions

    Picture of 200SD/SM/SC Sliding Bypass Door Hardware

    200SD/SM/SC Sliding Bypass Door Hardware

    From $218.21
  • 400lbs [181kg] Max. Weight Per Door

  • 1-1/8" [29mm] Min. Door Thickness
  • Top or Side Mount Hanger Plate

  • Standard or Soft Operation Hanger Function

  • Extruded Aluminum I-Beam Track Type

  • 192" 16/0 [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

    • 200SD Installation Instructions
    Picture of 200WM Wall Mount Sliding Door Hardware

    200WM Wall Mount Sliding Door Hardware

    From $208.27
  • 400lbs [181kg] Max Weight Per Door

  • Soft Operation Available W/Optional 2066 Dampener
  • Fascia Options Available W/200WF or 2009 Bracket
  • 1-1/8" [29mm] to 1-3/4" [44mm] Door Thickness
  • Top Mount Hanger Type

  • Aluminum I-Beam Track Type

  • 192" 16/0 [4877mm] Max. Track Length
  • Commercial Grade Top Hung Wall Mount Sliding Door Hardware

    • 200WM Installation Instructions
