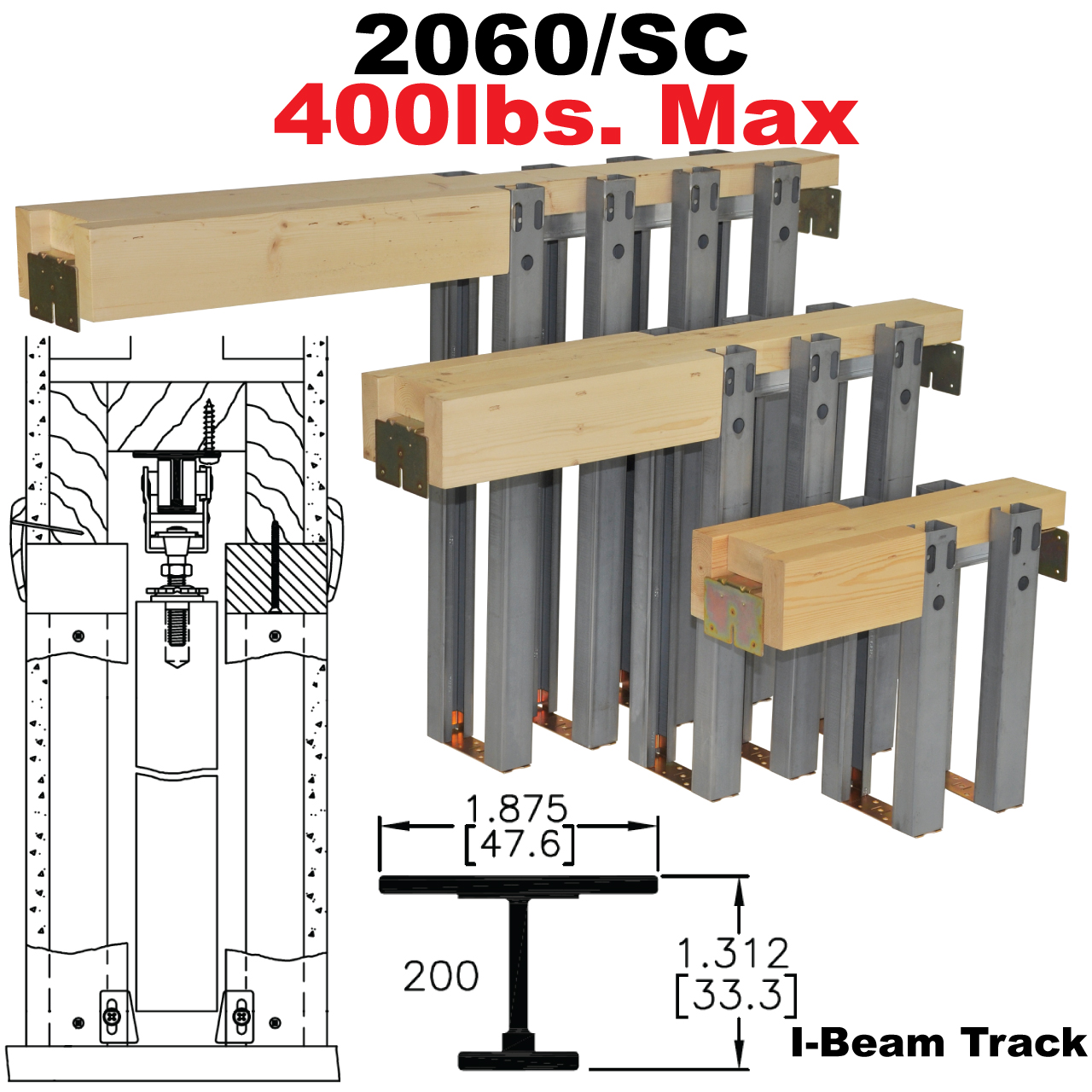

Picture of 2060 Series Pocket Door Frames

2060 Series Pocket Door Frames

  • 400lbs [181kg] Max. Per Door

  • 60" 5/0 [1524mm] x 108" 9/0 [2743mm] Max. Door Size

  • 1-1/8" [29mm] - 2-1/4" [57mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

    • 2060 Installation Instructions
    *
    *
    *
    *
    *
    *

    Products specifications
    Product GradeCommercial/Residential
    ApplicationInterior Residential/Commercial
    Door Thickness1-1/8" [29mm] to <br>2-1/4" [57mm]<br>
    Max. Door Width60" (5'- 0") [1524mm]
    Max. Door Height96" (8'-0") [2438mm]
    Min. Wall Structure Thickness5-1/2" (2 x 6) [140mm]
    Max. Weight Per Door400lbs. [181kg]
    Country of OriginU.S.A.
    Frame Header MaterialSpruce, Pine or Fir (#3 or better)
    Split Stud Construction16 Gauge Cold Rolled Galvanized Steel
    Track ProfileI-Beam
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Steel Components12-14 Gauge
    Steel Component FinishZinc Trivalent Plated
    Hanger TypeTop Mount
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Wheel Dia.1"
    PackagingSingle Packed, Reinforced Corrugated Box
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Product GradeCommercial/Residential
    ApplicationInterior Residential/Commercial
    Door Thickness1-1/8" [29mm] to <br>2-1/4" [57mm]<br>
    Max. Door Width60" (5'- 0") [1524mm]
    Max. Door Height96" (8'-0") [2438mm]
    Min. Wall Structure Thickness5-1/2" (2 x 6) [140mm]
    Max. Weight Per Door400lbs. [181kg]
    Country of OriginU.S.A.
    Frame Header MaterialSpruce, Pine or Fir (#3 or better)
    Split Stud Construction16 Gauge Cold Rolled Galvanized Steel
    Track ProfileI-Beam
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Steel Components12-14 Gauge
    Steel Component FinishZinc Trivalent Plated
    Hanger TypeTop Mount
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Wheel Dia.1"
    PackagingSingle Packed, Reinforced Corrugated Box
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
