  • 2000 Series 48" x 96" Pocket Door Frame

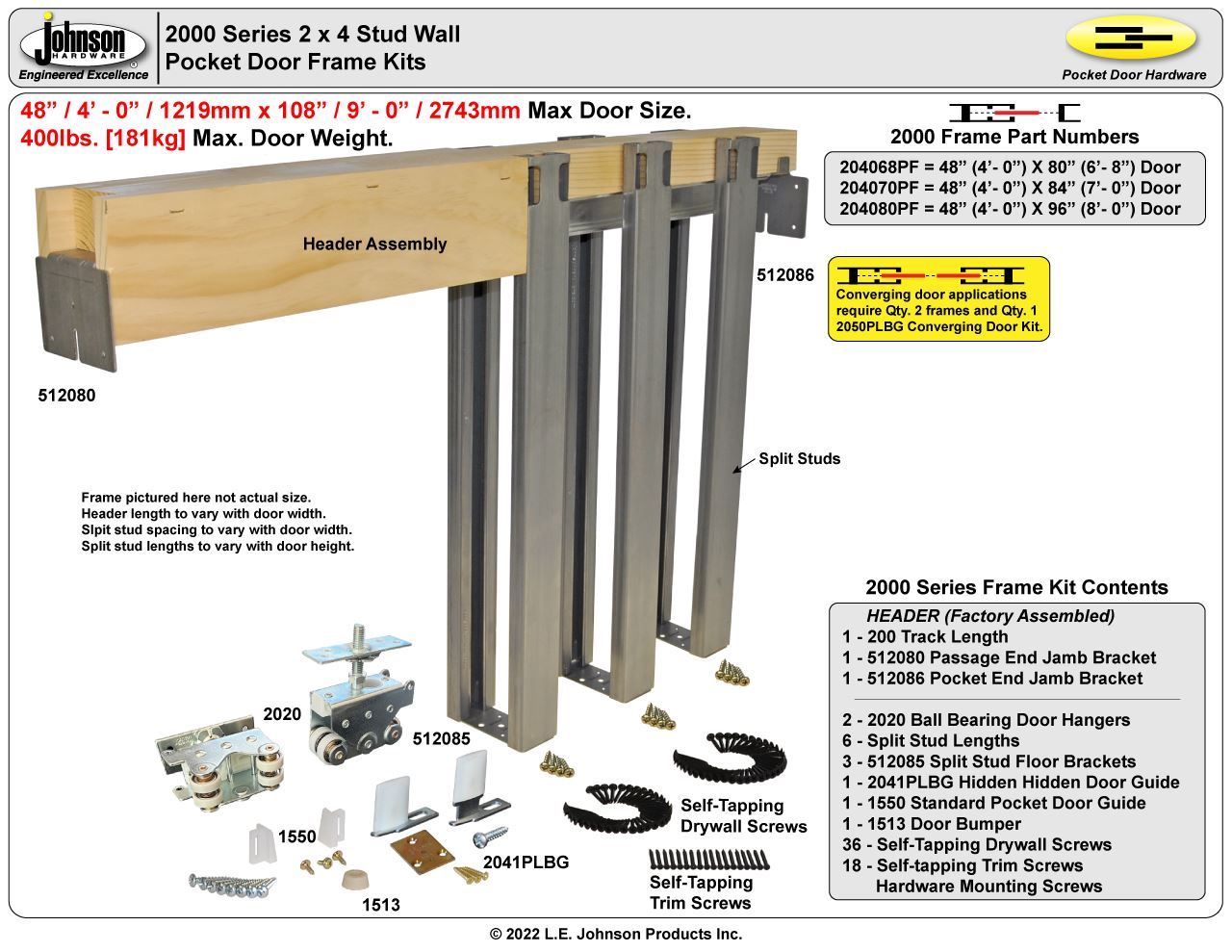

Picture of 2000 Series 48" x 96" Pocket Door Frame

2000 Series 48" x 96" Pocket Door Frame

$443.69
  • 400lbs [181kg] Max. Per Door

  • 48" 4/0 [1219mm] x 96" 8/0 [2438mm] Max. Door Size

  • 1-1/8" [29mm] - 1-3/4" [44mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

    • Manufacturer part number: 204080PF
    Products specifications
    Max. Door Height96" (8'-0") [2438mm]
    Max. Door Width48" (4'- 0") [1219mm]
    Door Thickness1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
    Max. Weight Per Door400lbs. [181kg]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
    Product GradeCommercial/Residential
    Products specifications
    Max. Door Height96" (8'-0") [2438mm]
    Max. Door Width48" (4'- 0") [1219mm]
    Door Thickness1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
    Max. Weight Per Door400lbs. [181kg]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
    Product GradeCommercial/Residential
