  • 203090PF 2000 Series 36" x 108" Pocket Door Frame

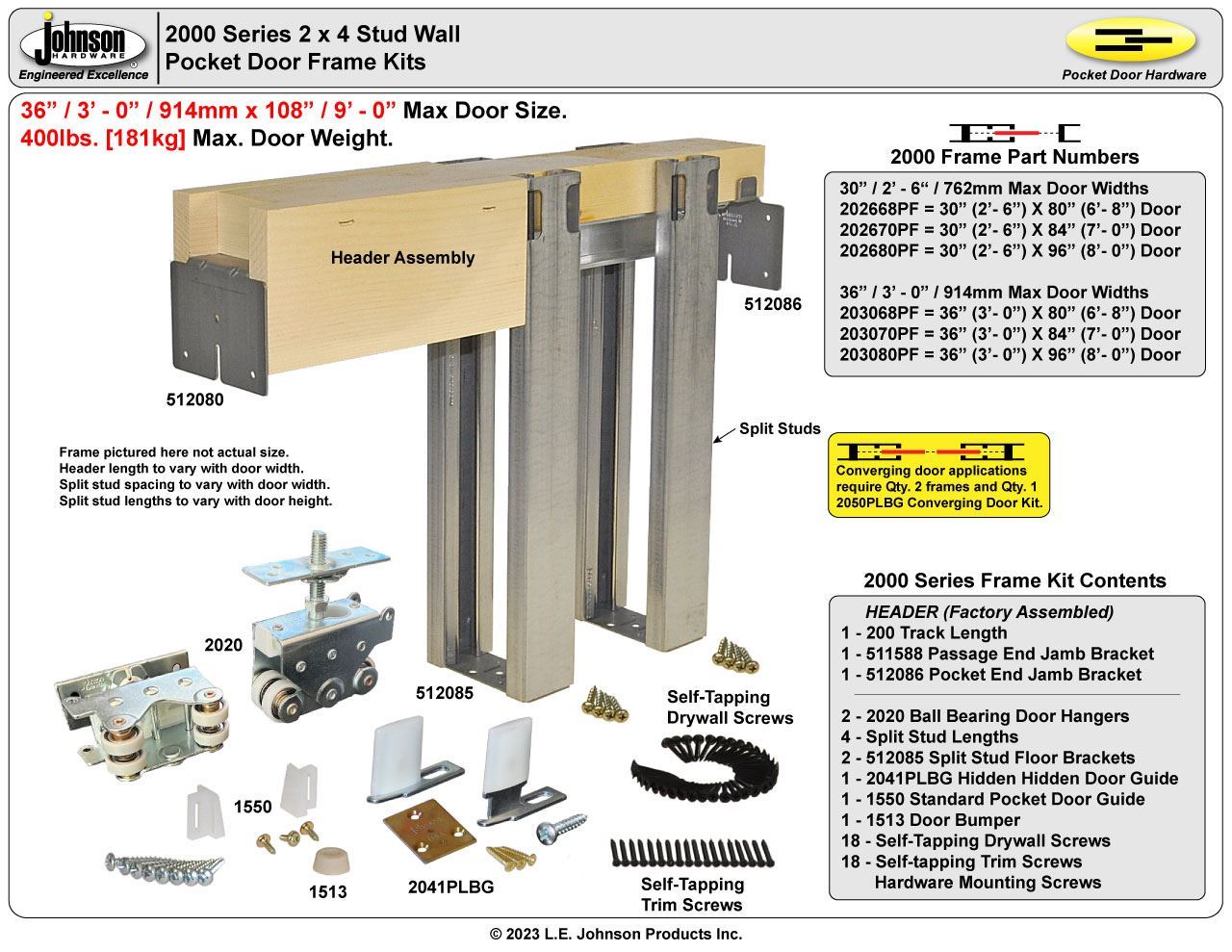

Picture of 203090PF 2000 Series 36" x 108" Pocket Door Frame

203090PF 2000 Series 36" x 108" Pocket Door Frame

  • 400lbs [181kg] Max. Per Door

  • 36" 3/0 [914mm] x 108" 9/0 [2743mm] Max. Door Size

  • 1-1/8" [29mm] - 1-3/4" [44mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

    • 2000 Installation Instructions
    Manufacturer part number: 203090PF
    Products specifications
    Max. Door Height108" (9'-0") [2743mm]
    Max. Door Width36" (3'- 0") [914mm]
    Door Thickness1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
    Max. Weight Per Door400lbs. [181kg]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
    Product GradeCommercial/Residential
    This product is sold out
    Products specifications
    Max. Door Height108" (9'-0") [2743mm]
    Max. Door Width36" (3'- 0") [914mm]
    Door Thickness1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
    Max. Weight Per Door400lbs. [181kg]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
    Product GradeCommercial/Residential
