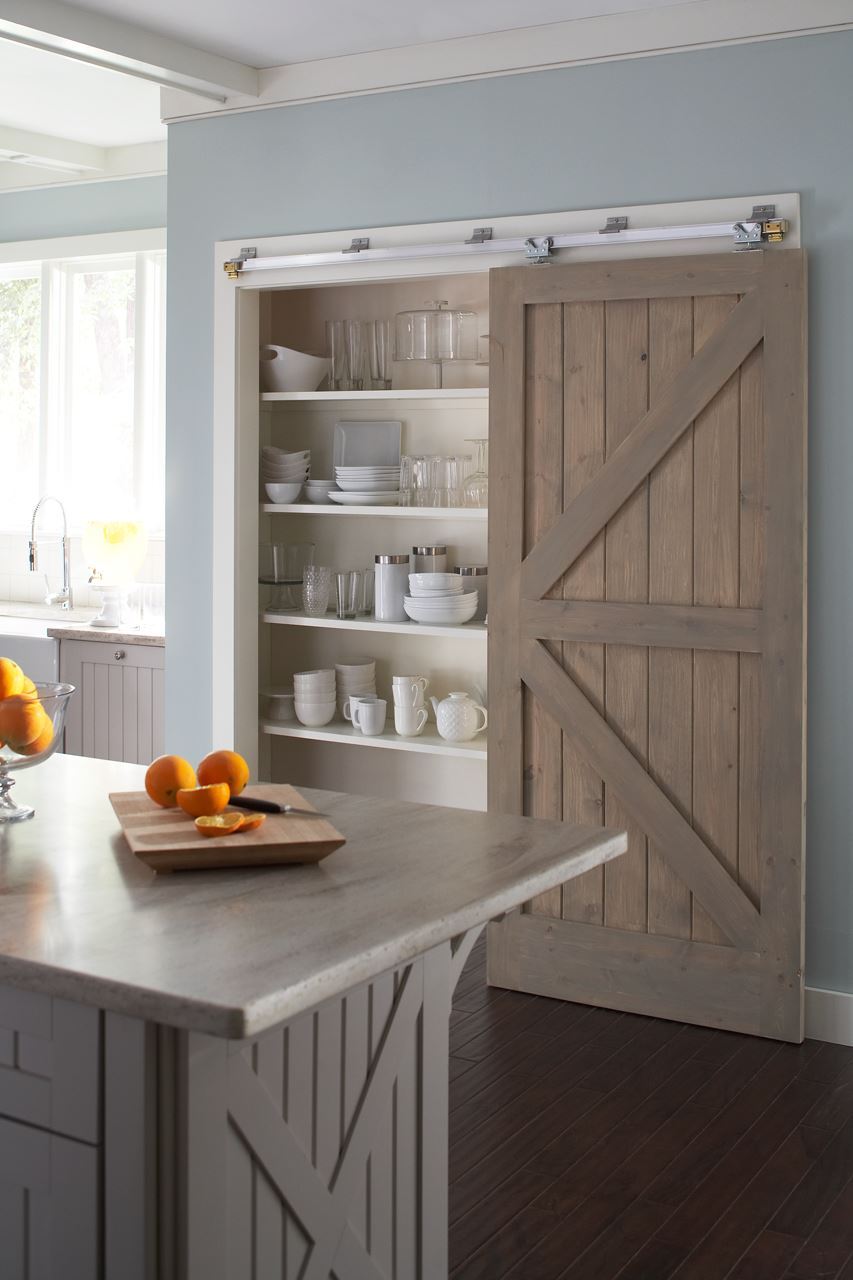

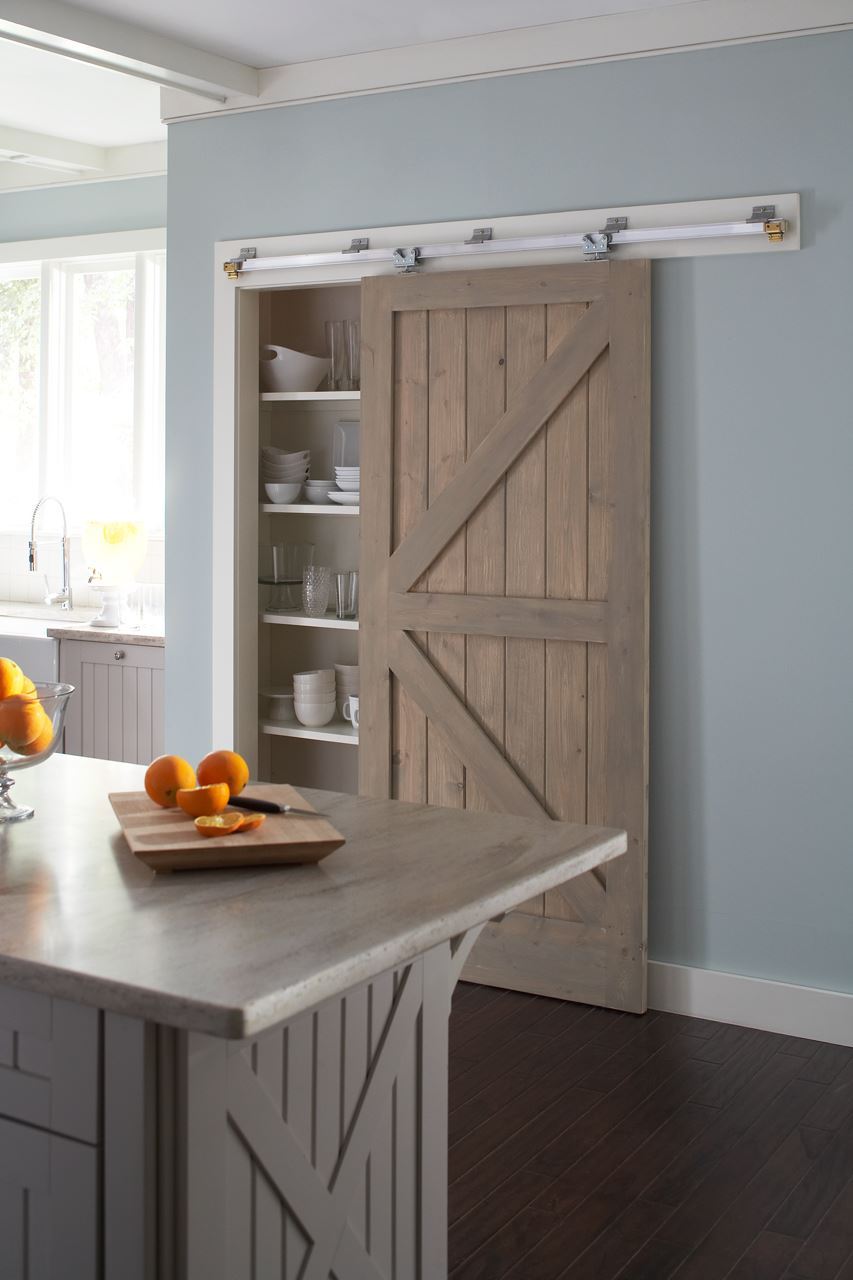

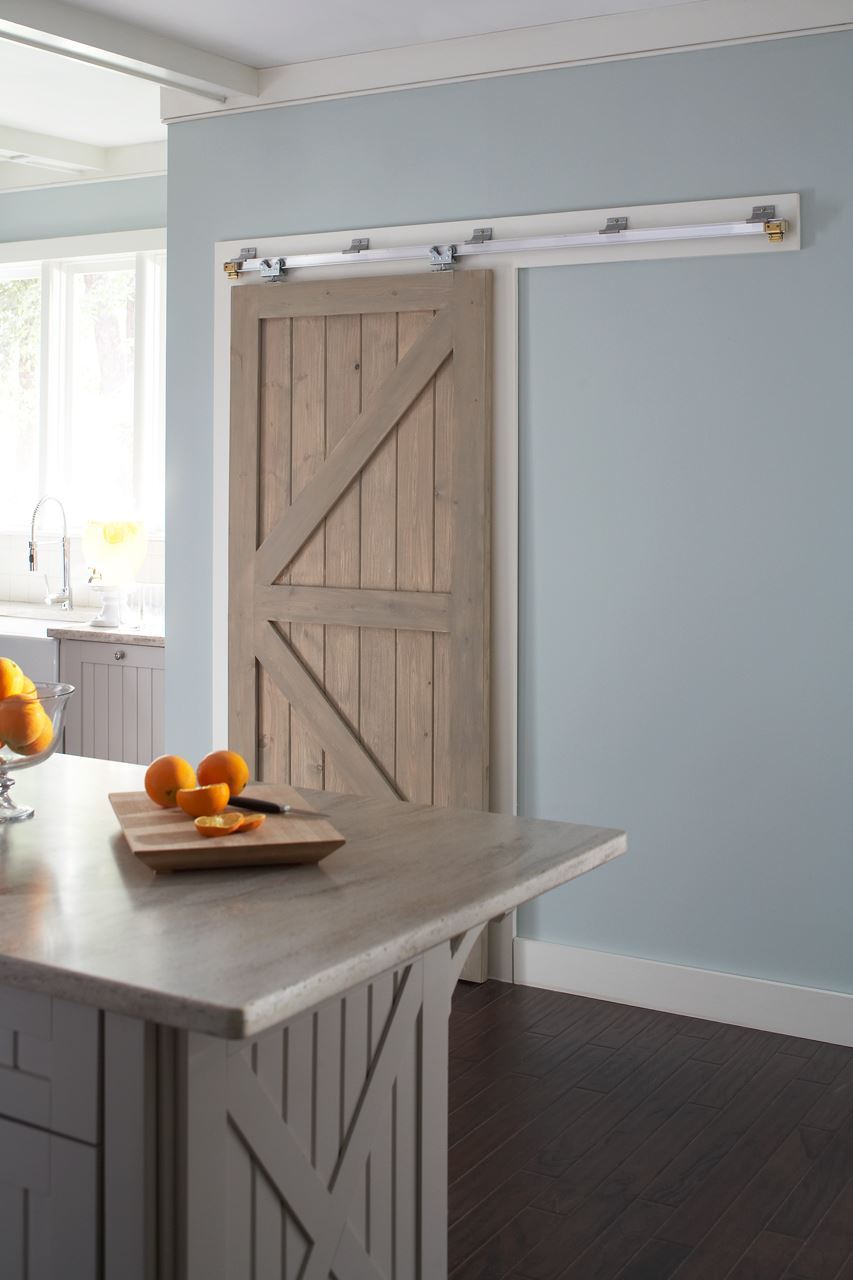

Picture of 200WM Wall Mount Sliding Door Hardware
Picture of 200WM Wall Mount Sliding Door Hardware Picture of 200WM Wall Mount Sliding Door Hardware Picture of 200WM Wall Mount Sliding Door Hardware Picture of 200WM Wall Mount Sliding Door Hardware

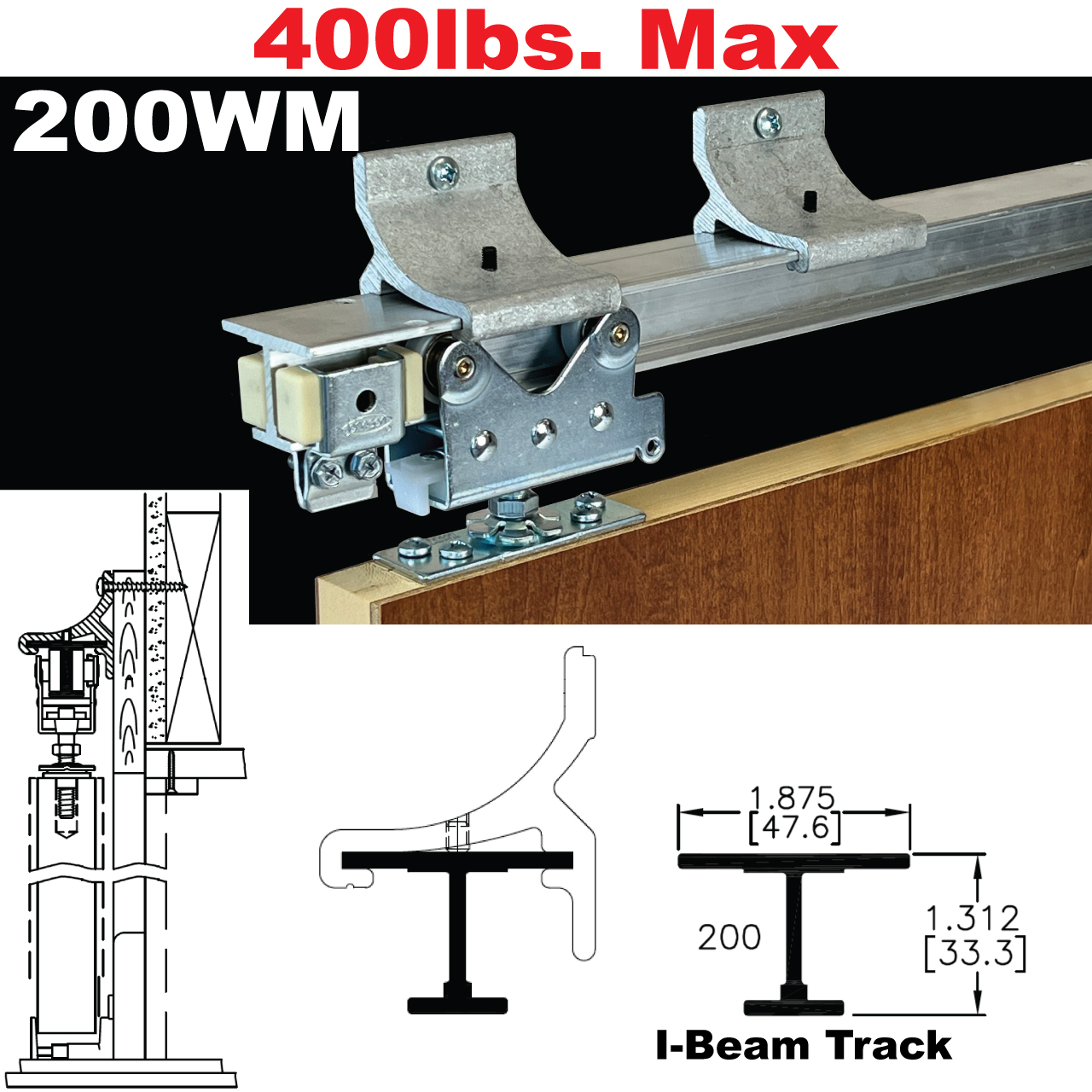

200WM Wall Mount Sliding Door Hardware

  • 400lbs [181kg] Max Weight Per Door

  • 1-1/8" [29mm] to 1-3/4" [44mm] Door Thickness
  • Top Mount Hanger Type

  • I-Beam Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Wall Mount Sliding Door Hardware

    • 200WM Installation Instructions

    Products specifications
    Max. Weight Per Door400lbs. [181kg]
    ApplicationInterior Residential/Commercial
    Door Thickness1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
    Series Track200
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileI-Beam
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
