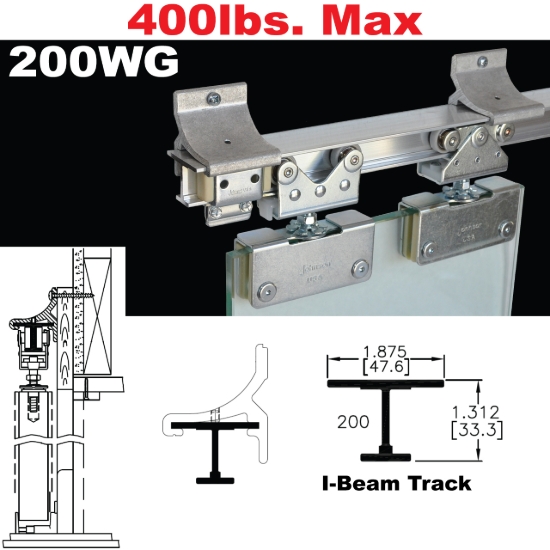

Picture of 200WG Wall Mount Sliding Glass Door Hardware

200WG Wall Mount Sliding Glass Door Hardware

  • 400lbs [181kg] Max Weight Per Door

  • Soft Operation Available W/Optional 2066 Dampener
  • Fascia Options Available W/200WF or 2009 Bracket
  • 1/2" [12mm] Tempered Glass Door Thickness
  • Side Mount Through Bolt Hanger Type

  • Aluminum I-Beam Track Type

  • 192" 16/0 [4877mm] Max. Track Length
  • Commercial Grade Top Hung Wall Mount Sliding Door Hardware

    • 200WG Installation Instructions

    Products specifications
    Max. Weight Per Door400lbs. [181kg]
    ApplicationInterior Residential/Commercial
    Door Thickness1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
    Series Track200
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileI-Beam
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door400lbs. [181kg]
    ApplicationInterior Residential/Commercial
    Door Thickness1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
    Series Track200
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileI-Beam
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
