  • 20120434 200SM 4-Door Side Mount Hardware Set, 1-3/4" [44mm] Door, 120" 10/0 [3048mm] x 2 Track Length

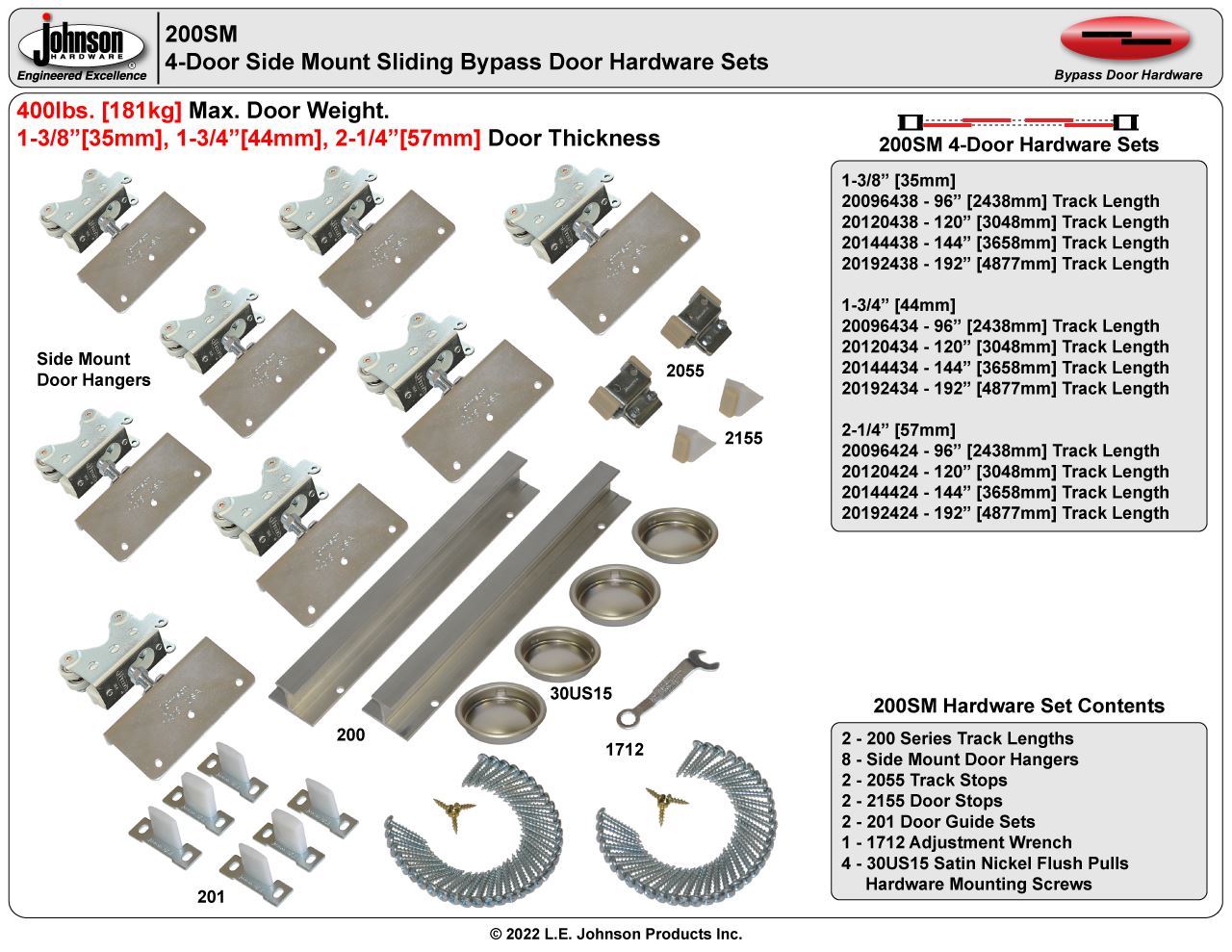

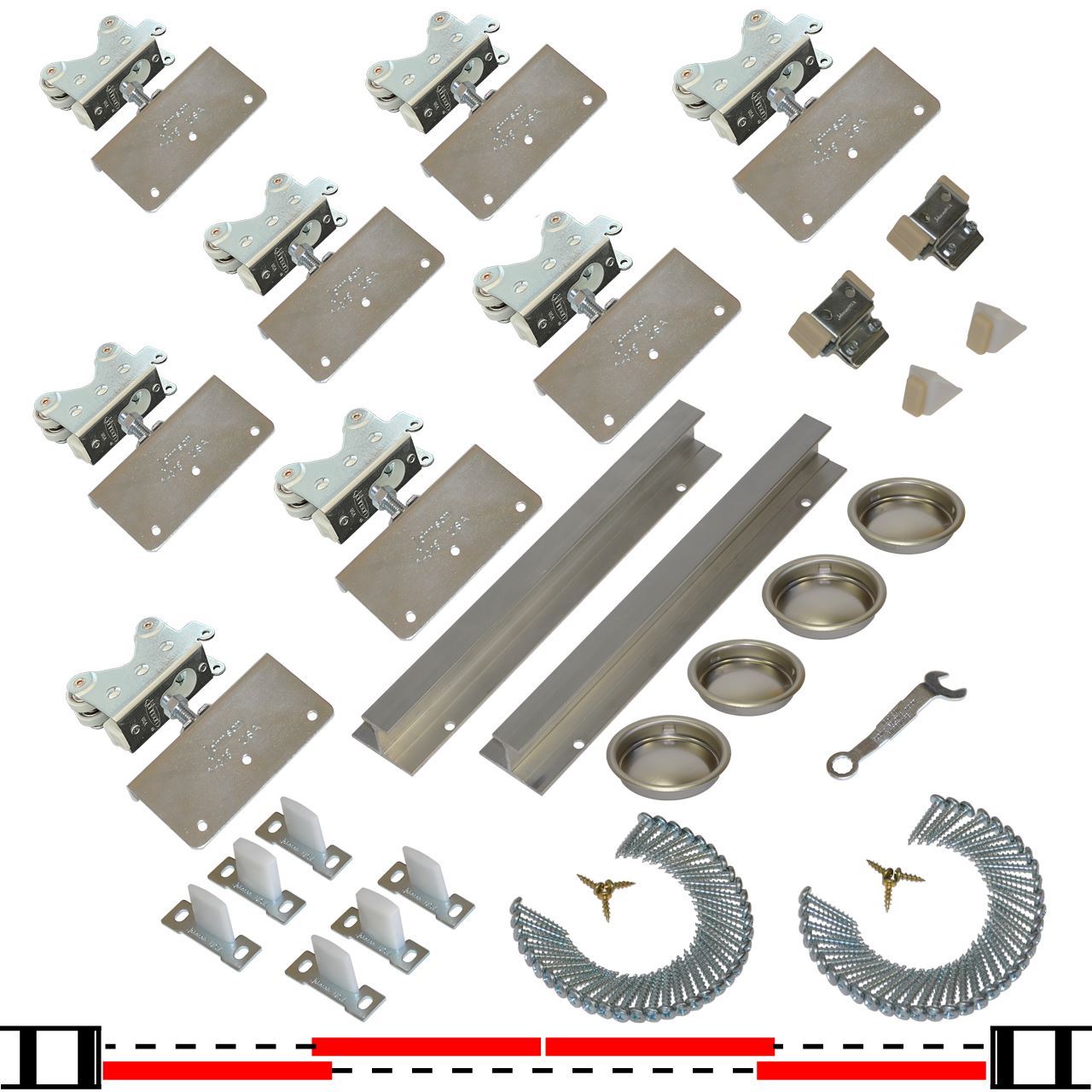

Picture of 20120434 200SM 4-Door Side Mount Hardware Set, 1-3/4" [44mm] Door, 120" 10/0 [3048mm] x 2 Track Length
Picture of 20120434 200SM 4-Door Side Mount Hardware Set, 1-3/4" [44mm] Door, 120" 10/0 [3048mm] x 2 Track Length Picture of 20120434 200SM 4-Door Side Mount Hardware Set, 1-3/4" [44mm] Door, 120" 10/0 [3048mm] x 2 Track Length

20120434 200SM 4-Door Side Mount Hardware Set, 1-3/4" [44mm] Door, 120" 10/0 [3048mm] x 2 Track Length

$563.03
400lbs. [181kg] Max. Per Door

120" 10/0 [3048mm] x 2 Track Length

30" 2/6 [762mm] x 4 Max. Door Width

1-3/4" [44mm] Door Thickness

Side Mount Hanger Mount Type

Standard Operation Hanger Type

200SD Installation Instructions

Manufacturer part number: 20120434
Products specifications
Hardware Sets4-Door
Door Thickness1-3/4" [44mm]
Max. Door Width30" X 4 (2' - 6" X 4) [762mm X 4]
Track Length120" x 2 (10' - 0" x 2) [3048mm x 2]
Max. Weight Per Door400lbs. [181kg]
Products specifications
Hardware Sets4-Door
Door Thickness1-3/4" [44mm]
Max. Door Width30" X 4 (2' - 6" X 4) [762mm X 4]
Track Length120" x 2 (10' - 0" x 2) [3048mm x 2]
Max. Weight Per Door400lbs. [181kg]
