Picture of 200SD/SM/SC Sliding Bypass Door Hardware
Picture of 200SD/SM/SC Sliding Bypass Door Hardware Picture of 200SD/SM/SC Sliding Bypass Door Hardware Picture of 200SD/SM/SC Sliding Bypass Door Hardware Picture of 200SD/SM/SC Sliding Bypass Door Hardware

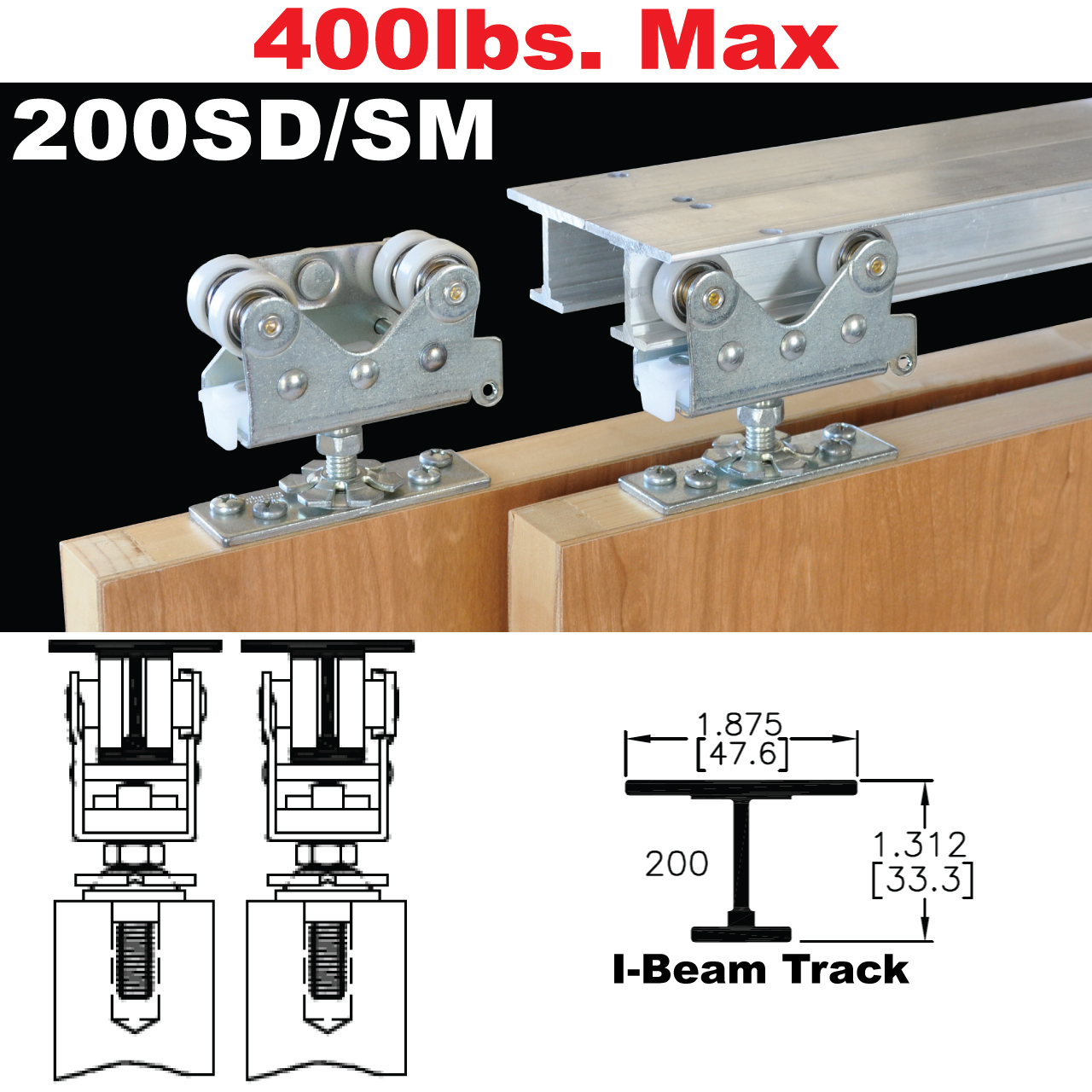

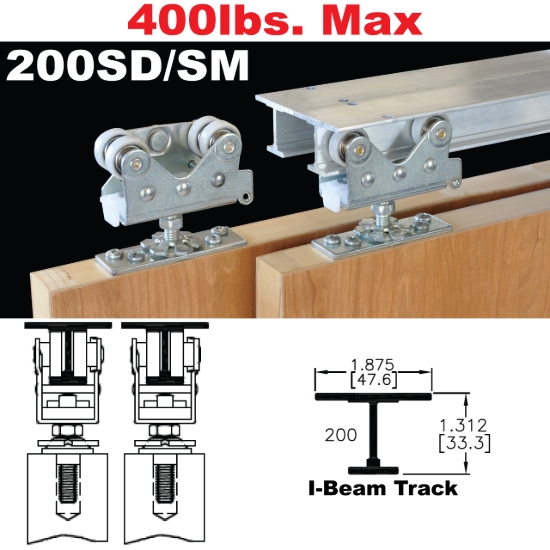

200SD/SM/SC Sliding Bypass Door Hardware

  • 400lbs [181kg] Max. Weight Per Door

  • 1-1/8" [29mm] Min. Door Thickness
  • Top or Side Mount Hanger Plate

  • Standard or Soft Operation Hanger Function

  • Extruded Aluminum I-Beam Track Type

  • 192" 16/0 [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

    • 200SD Installation Instructions

    Products specifications
    ApplicationInterior Residential/Commercial
    Max. Weight Per Door400lbs. [181kg]
    Min. Door Thickness1-1/8"
    Max. Door HeightUnlimited
    Series Track200
    Track Material6063T6 Extruded Aluminum
    Track ProfileI-Beam
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    ApplicationInterior Residential/Commercial
    Max. Weight Per Door400lbs. [181kg]
    Min. Door Thickness1-1/8"
    Max. Door HeightUnlimited
    Series Track200
    Track Material6063T6 Extruded Aluminum
    Track ProfileI-Beam
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
