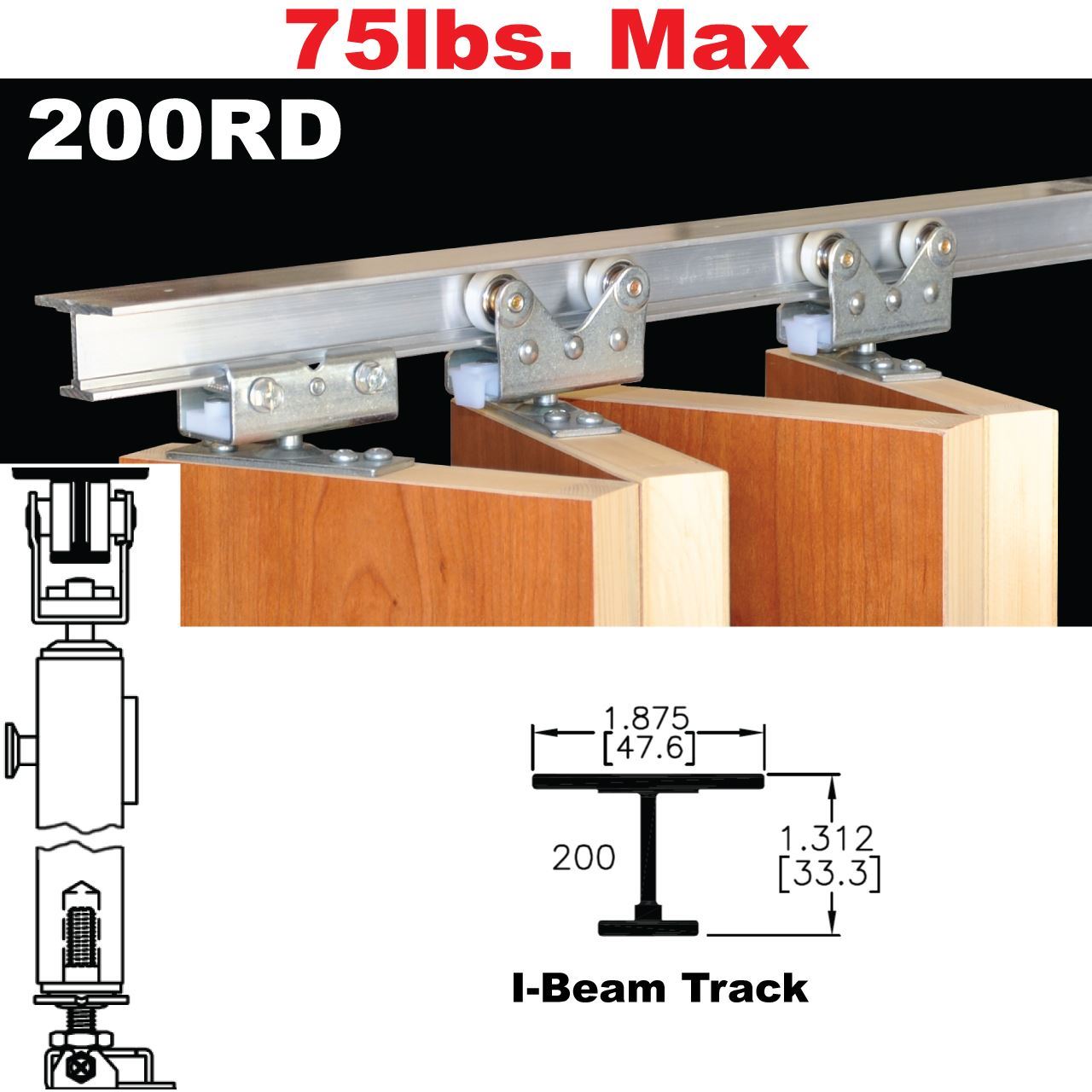

200RD Multi-Fold Door Hardware

75lbs [34kg] Max Weight Per Panel

36" 3/0 [914mm] Nominal Max Width Per Panel

108" 9/0 [2743mm] Max Panel Height

1-1/8" [29mm] to 1-3/4" [44mm] Panel Thickness

Commercial Grade Top Hung, Top Mount Multi-Fold Door Hardware

4 or 6 Panel Configurations Only

All Panels Fold in Single Direction

200RD Installation Instructions

Products specifications

Max. Weight Per Panel	75 lbs. [34kg]
Application	Interior Residential
Panel Thickness	1-1/8" [29mm] to 1-3/4" [44mm]
Series Track	200
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	I-Beam
Hanger Type	Top Mount
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Commercial/Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

Products specifications

Max. Weight Per Panel	75 lbs. [34kg]
Application	Interior Residential
Panel Thickness	1-1/8" [29mm] to 1-3/4" [44mm]
Series Track	200
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	I-Beam
Hanger Type	Top Mount
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Commercial/Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
