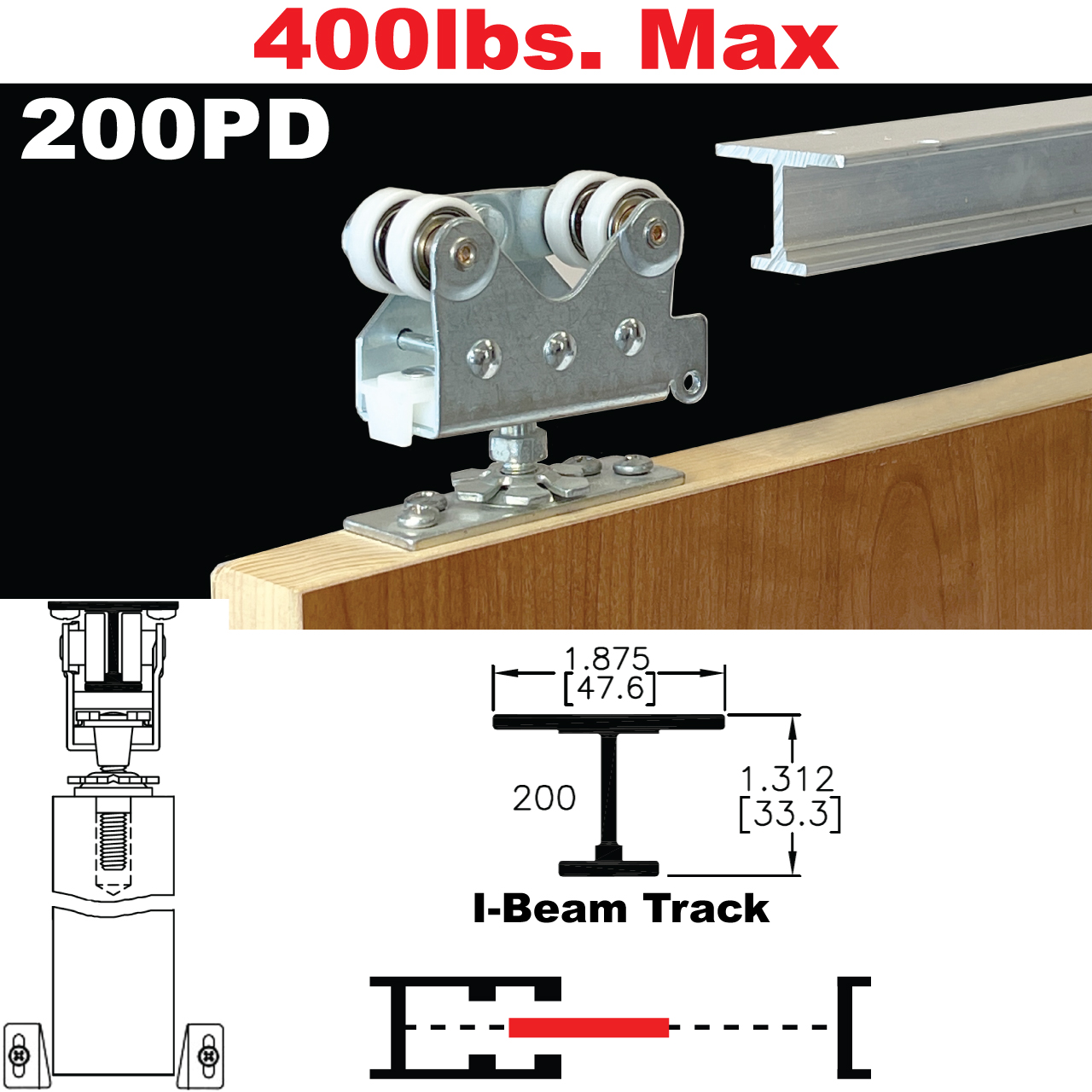

Picture of 200PD Pocket Door Hardware

200PD Pocket Door Hardware

  • 330lbs [150kg] max. per door - SC soft operation

  • 400lbs [181kg] max. per door - PD standard operation

  • 1-1/8" [29mm] min. door thickness
  • 192" 16/0 [4877mm] max. track length
  • Commercial Grade top hung pocket door hardware

    • 200PD Instructions

    2066 Soft-Close Instructions

    32" 2/8 [876mm] min. door width for bidirectional soft operation

    24" 2/0 [624mm] min. door width for single direction soft operation
    *
    *
    *
    *
    *

    Products specifications
    Max. Weight Per Door400lbs. [181kg]
    ApplicationInterior Residential/Commercial
    Min. Door Thickness1-1/8"
    Series Track200
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileI-Beam
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door400lbs. [181kg]
    ApplicationInterior Residential/Commercial
    Min. Door Thickness1-1/8"
    Series Track200
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileI-Beam
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
