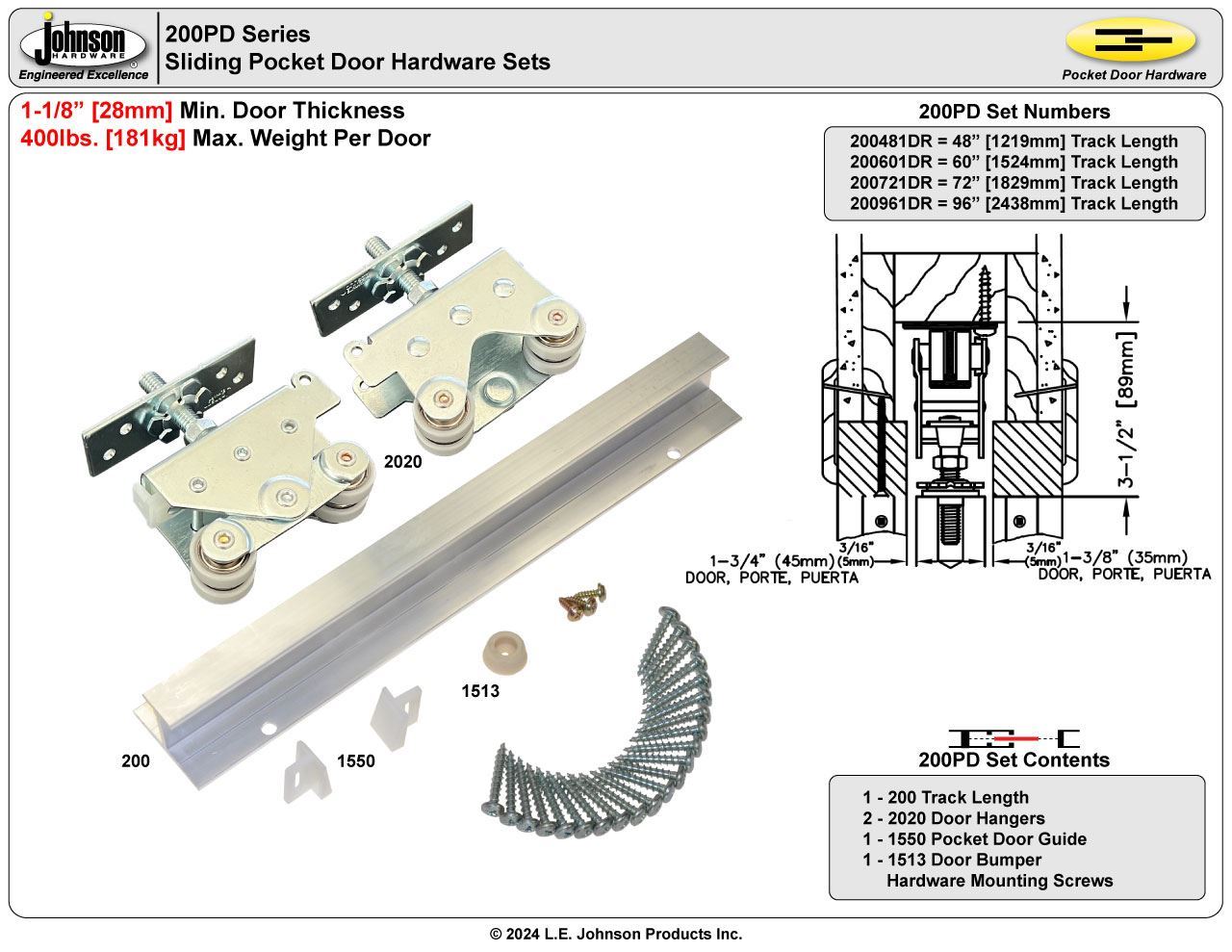

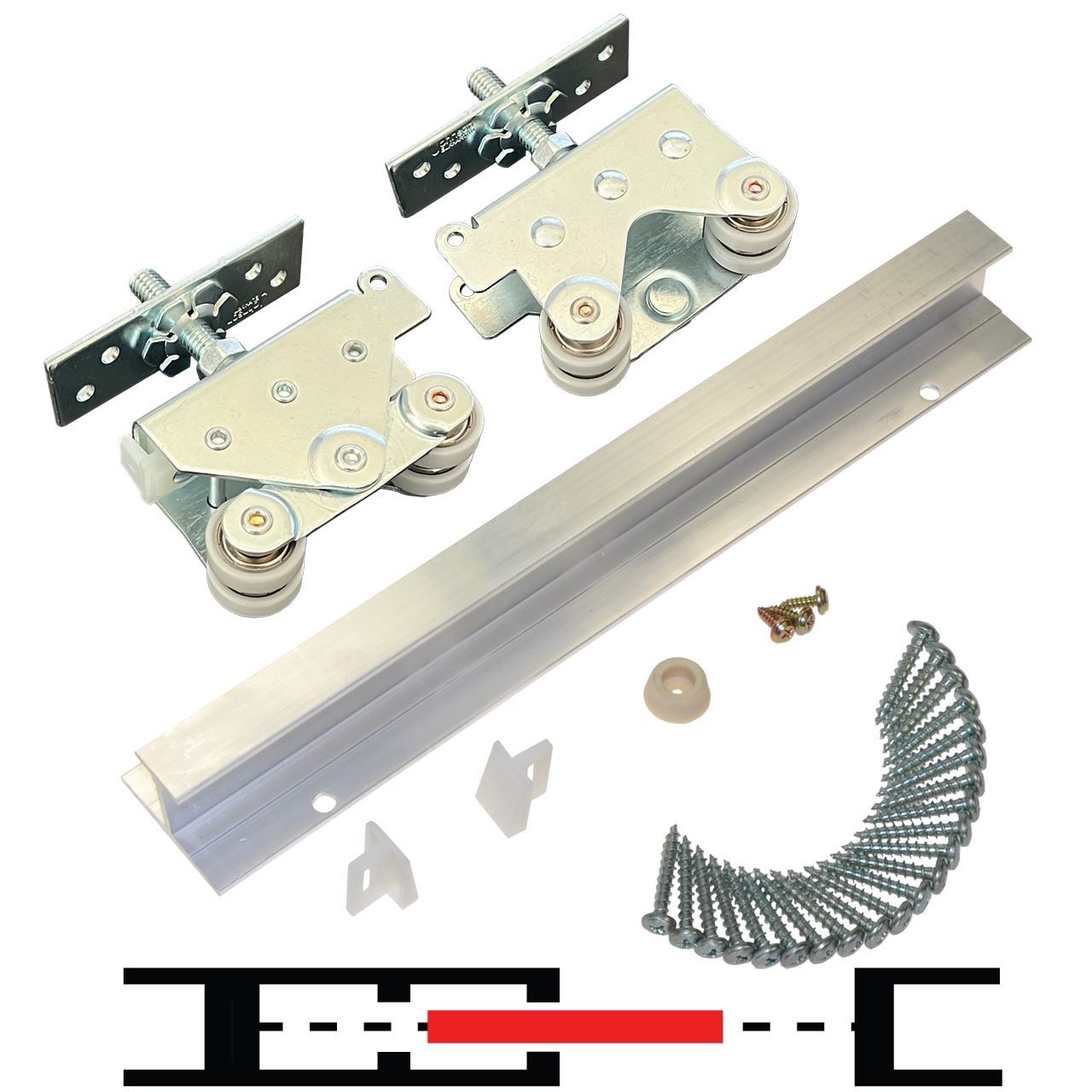

200PD 1-Door Hardware Set, 96" Track

$155.85
  • 400lbs [181kg] Max. Per Door

  • 96" 8/0 [2438mm] Track Length
  • 48" 4/0 [1219mm] Door Width
  • 1-1/8" [29mm] Min. Door Thickness
  • Commercial Grade Top Hung Pocket Door Hardware

    • Manufacturer part number: 200961DR
    Products specifications
    Product GradeCommercial/Residential
    ApplicationInterior Residential/Commercial
    Max. Weight Per Door400lbs. [181kg]
    Country of OriginU.S.A.
    Track Material6063T6 Extruded Aluminum
    Track FinishMill Aluminum
    Steel Components12-14 Gauge
    Steel Component FinishZinc Trivalent Plated
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    PackagingSingle Packed, Reinforced Corrugated Box
    Track ProfileI-Beam
    Max. Door Width48" (4'- 0") [1219mm], 48" (4'- 0") [1219mm]
    Hardware Sets1-Door
    Track Length96” (8' - 0") [2438mm]
    Min. Door Thickness1-1/8"
    Products specifications
    Product GradeCommercial/Residential
    ApplicationInterior Residential/Commercial
    Max. Weight Per Door400lbs. [181kg]
    Country of OriginU.S.A.
    Track Material6063T6 Extruded Aluminum
    Track FinishMill Aluminum
    Steel Components12-14 Gauge
    Steel Component FinishZinc Trivalent Plated
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    PackagingSingle Packed, Reinforced Corrugated Box
    Track ProfileI-Beam
    Max. Door Width48" (4'- 0") [1219mm], 48" (4'- 0") [1219mm]
    Hardware Sets1-Door
    Track Length96” (8' - 0") [2438mm]
    Min. Door Thickness1-1/8"
