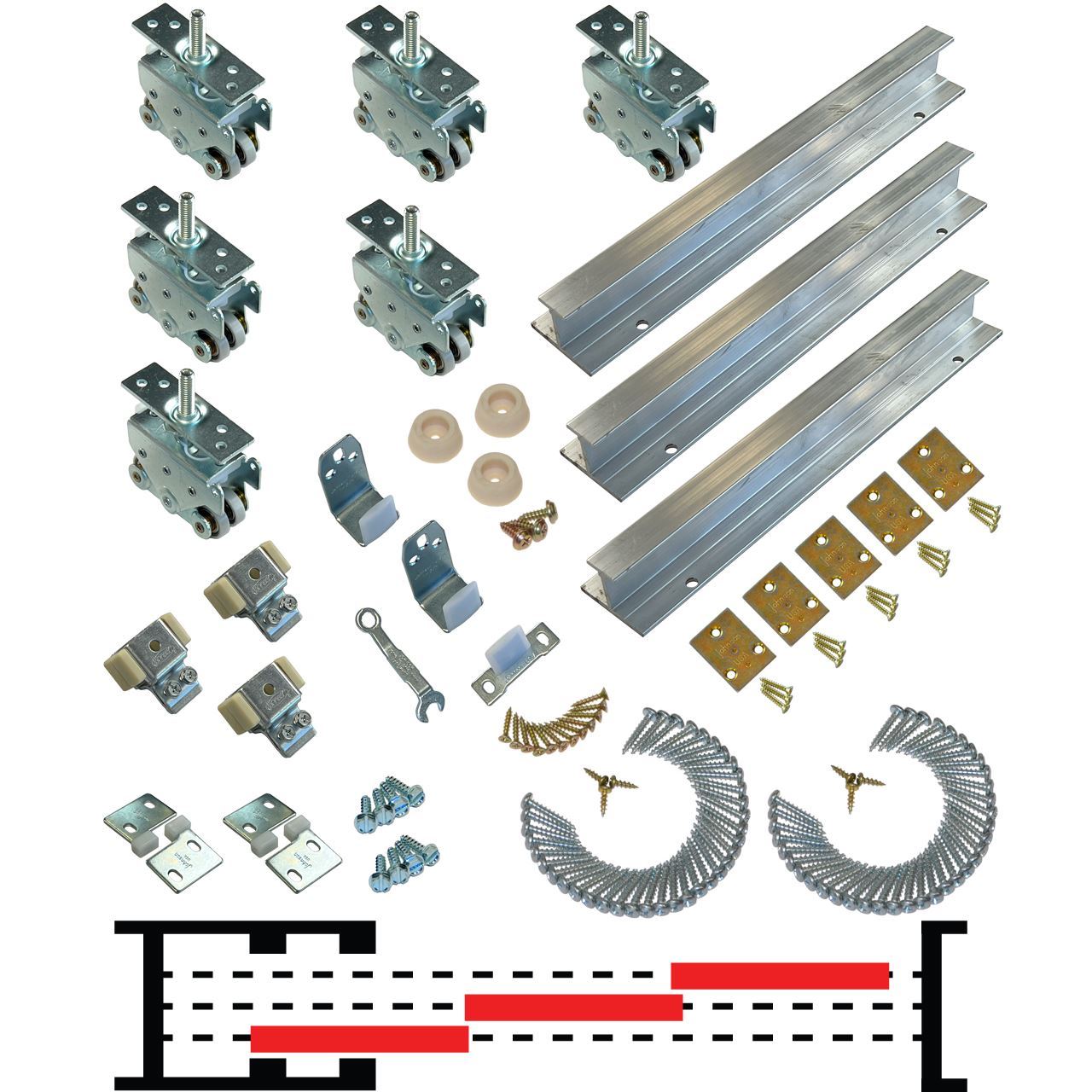

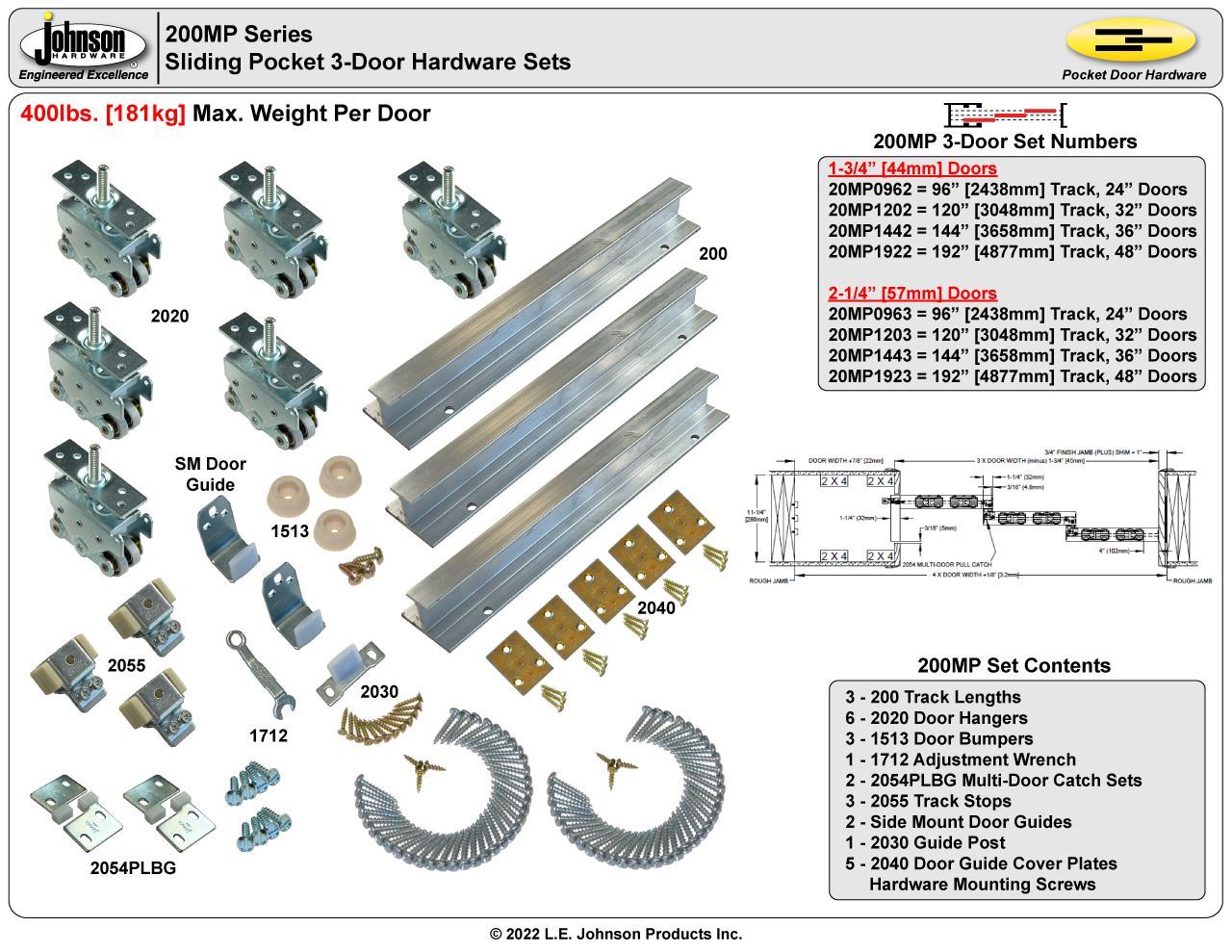

The 200MP is one of the finest heavy duty sliding door systems made. The 200MP is designed to carry heavy solid core doors in both residential or commercial applications where quality counts and trouble-free long life operation is a necessity. The heavy gauge 6063T6 I-beam aluminum track is extruded to the most precise specification, and the fully adjustable jump proof 4-wheel ball bearing hangers glide effortlessly with feather touch operation. Heavy gauge steel components are zinc trivalent plated for a quality appearance.
Products specifications
| Min. Wall Structure Thickness | 11-1/4" (2 x 12) [286mm] |
| Hardware Sets | 3-Door |
| Max. Door Width | 48" X 3 (4' - 0" X 3) [1219mm X 3] |
| Track Length | 192" x 3 (16' - 0" x 3) [4877mm x 3] |
| Door Thickness | 2-1/4" [57mm] |
| Max. Weight Per Door | 400lbs. [181kg] |
| Track Material | 6063T6 Extruded Aluminum |
| Track Finish | Mill Aluminum |
| Track Profile | I-Beam |
| Wheel Type | Nylon Encapsulated Sealed Ball Bearing |
| Wheel Dia. | 1" |
| Steel Components | 12-14 Gauge |
| Steel Component Finish | Zinc Trivalent Plated |
| Product Grade | Commercial/Residential |
| Application | Interior Residential/Commercial |
