Products specifications

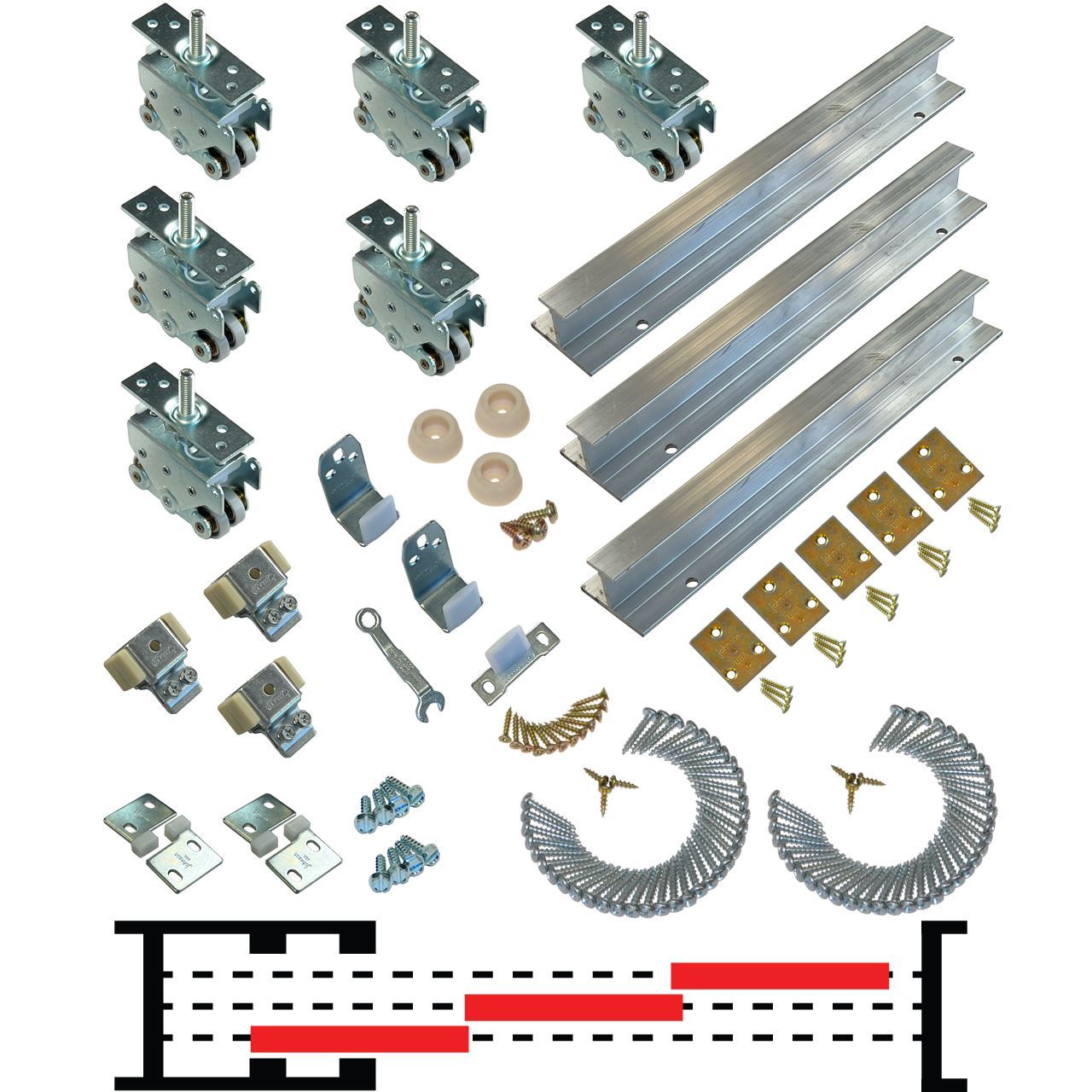

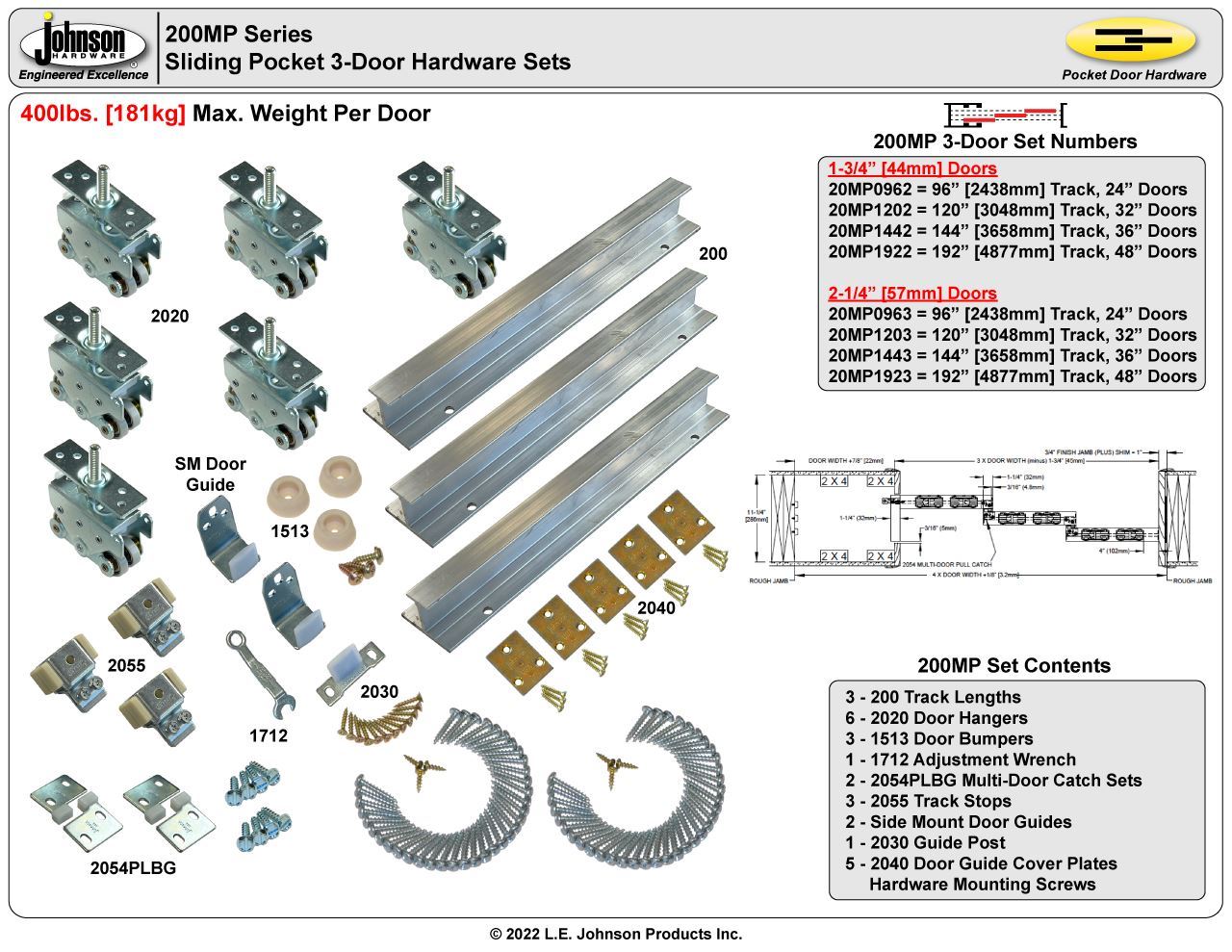

| Hardware Sets | 3-Door |
| Max. Door Width | 24" X 3 (2' - 0" X 3) [610mm X 3] |
| Track Length | 96” x 3 (8' - 0" x 3) [2438mm x 3] |
| Door Thickness | 1-3/4" [44mm] |
| Min. Wall Structure Thickness | 11-1/4" (2 x 12) [286mm] |
| Max. Weight Per Door | 400lbs. [181kg] |
| Track Material | 6063T6 Extruded Aluminum |
| Track Finish | Mill Aluminum |
| Track Profile | I-Beam |
| Wheel Type | Nylon Encapsulated Sealed Ball Bearing |
| Wheel Dia. | 1" |
| Steel Components | 12-14 Gauge |
| Steel Component Finish | Zinc Trivalent Plated |
| Product Grade | Commercial/Residential |
| Application | Interior Residential/Commercial |
