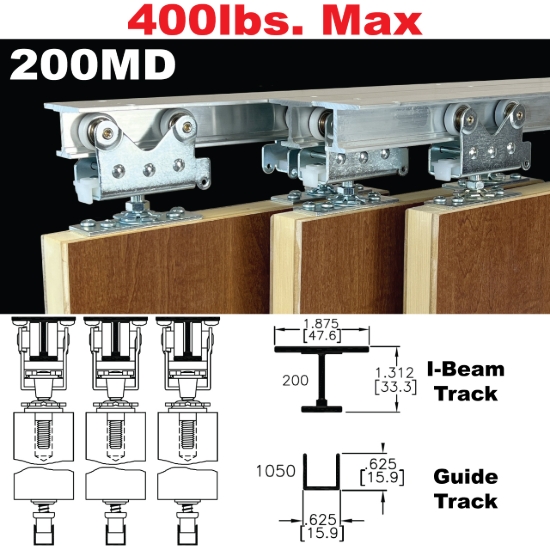

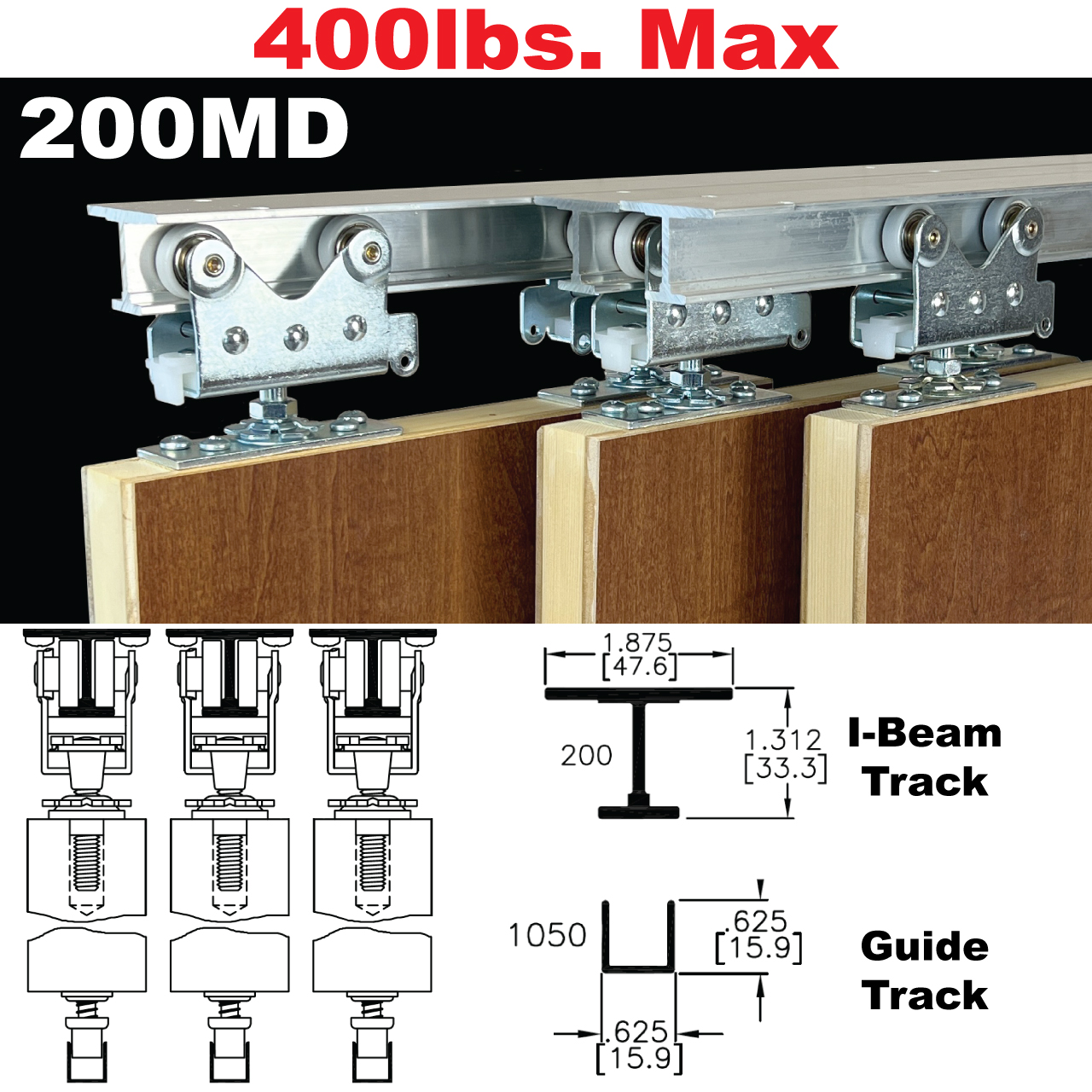

Picture of 200MD Multi-Pass Sliding Door Hardware
Picture of 200MD Multi-Pass Sliding Door Hardware Picture of 200MD Multi-Pass Sliding Door Hardware Picture of 200MD Multi-Pass Sliding Door Hardware Picture of 200MD Multi-Pass Sliding Door Hardware

200MD Multi-Pass Sliding Door Hardware

  • 400lbs [181kg] Max Weight Per Door

  • 6-1/2" [165mm] Min Wall Structure Thickness*

  • 1-1/8" [29mm] Min Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

    • *Wall Structure Thickness Varies With Door Thickness

    200MD Installation Instructions

    Products specifications
    Max. Weight Per Door400lbs. [181kg]
    ApplicationInterior Residential/Commercial
    Min. Door Thickness1-1/8"
    Series Track200
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileI-Beam
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door400lbs. [181kg]
    ApplicationInterior Residential/Commercial
    Min. Door Thickness1-1/8"
    Series Track200
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileI-Beam
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
