  • 20038484 200FS 4-Panel Hardware Set, 1-3/8" [35mm] Door, 48" 4/0 [1219mm] Track Length
Picture of 20038484 200FS 4-Panel Hardware Set, 1-3/8" [35mm] Door, 48" 4/0 [1219mm] Track Length
Picture of 20038484 200FS 4-Panel Hardware Set, 1-3/8" [35mm] Door, 48" 4/0 [1219mm] Track Length Picture of 20038484 200FS 4-Panel Hardware Set, 1-3/8" [35mm] Door, 48" 4/0 [1219mm] Track Length

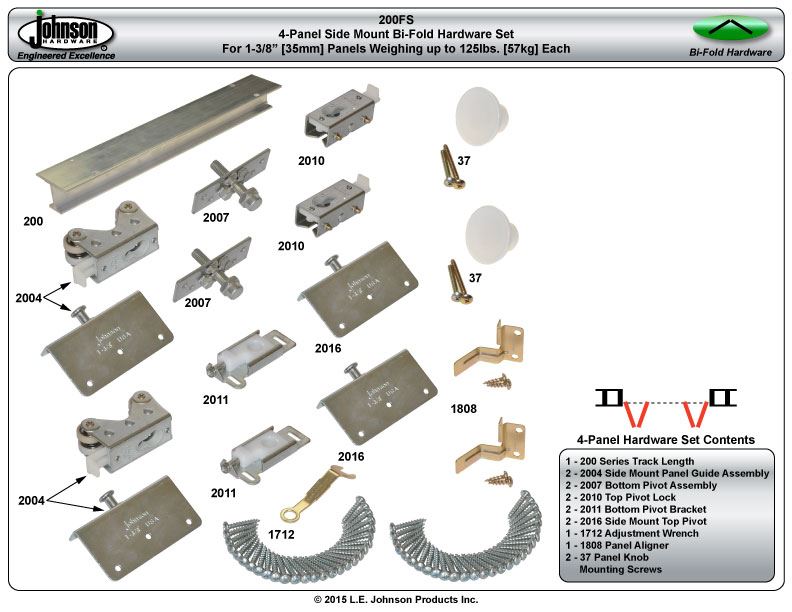

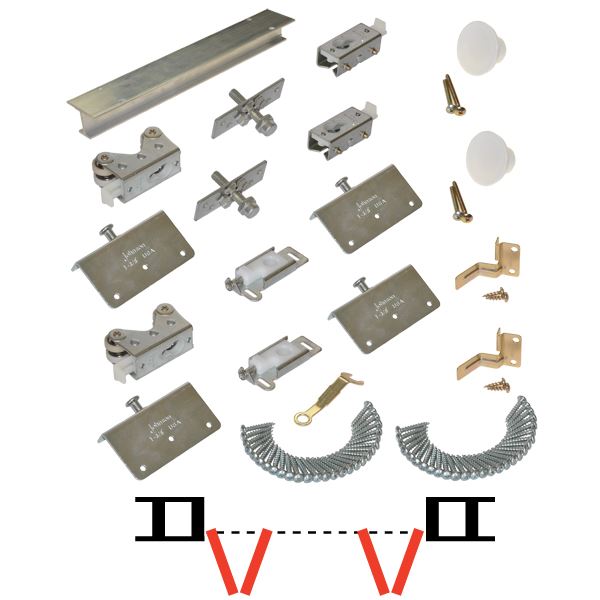

20038484 200FS 4-Panel Hardware Set, 1-3/8" [35mm] Door, 48" 4/0 [1219mm] Track Length

$234.92
  • 125lbs [57kg] Max Weight Per Panel

  • 48" 4/0 [1219mm] Track Length

  • 12" 1/0 [305mm] x 4 Nominal Max Width Per Panel

  • 1-3/8" [35mm] Panel Thickness
  • Side Mount Hardware Attachment

  • Commercial Grade Top Hung, Top Mount Bi-Fold Door Hardware

    • 200FS Installation Instructions
    Manufacturer part number: 20038484
    Products specifications
    Hardware Sets4-Panel
    Max. Panel Width12" x 4 (1' - 0" x 4) [305mm x 4]
    Track Length48" (4' - 0") [1219mm]
    Panel Thickness1-3/8" [35mm]
    Max. Weight Per Panel125 lbs. [57kg]
    Products specifications
    Hardware Sets4-Panel
    Max. Panel Width12" x 4 (1' - 0" x 4) [305mm x 4]
    Track Length48" (4' - 0") [1219mm]
    Panel Thickness1-3/8" [35mm]
    Max. Weight Per Panel125 lbs. [57kg]
