  • 200BP 48" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door

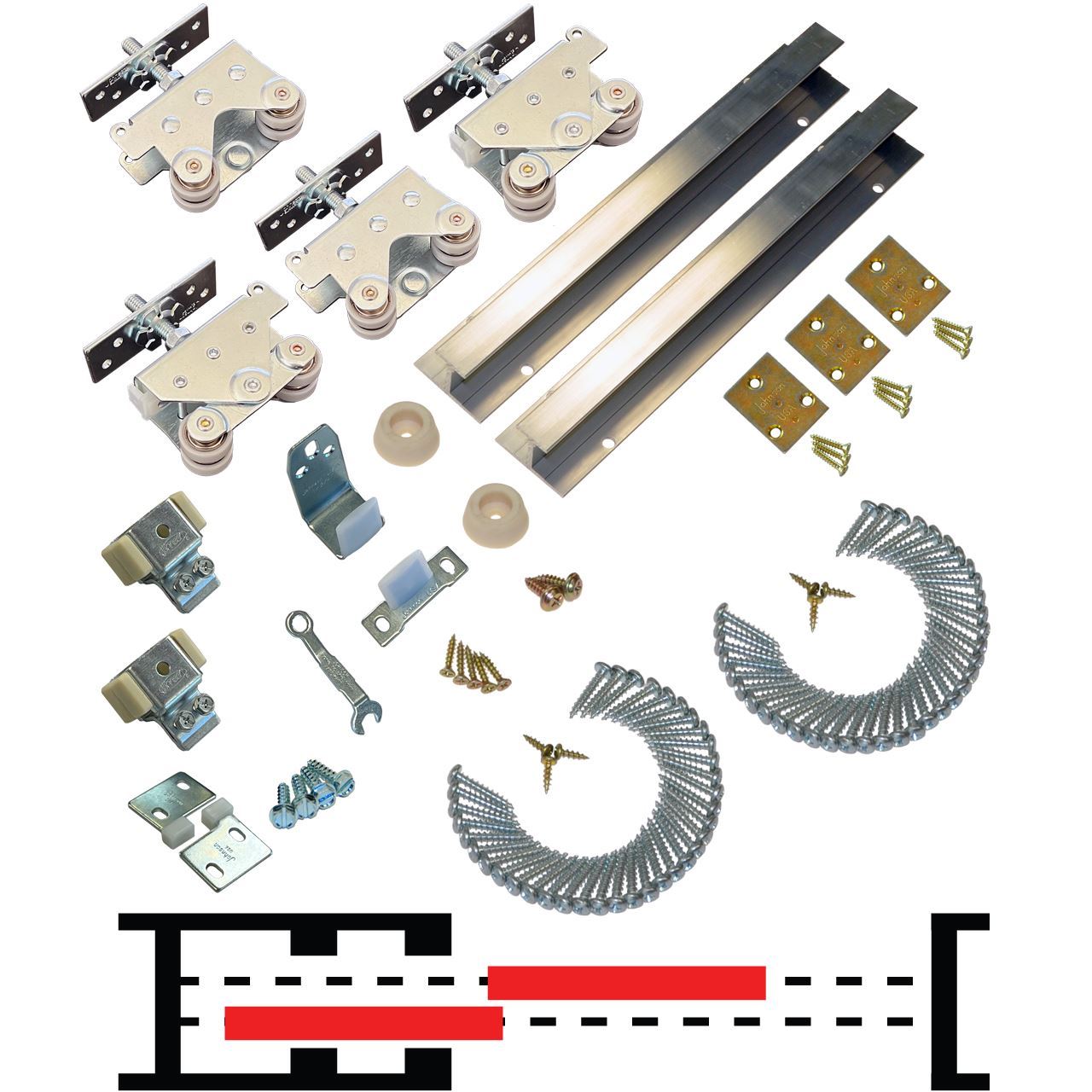

Picture of 200BP 48" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door
Picture of 200BP 48" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door Picture of 200BP 48" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door

200BP 48" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door

$379.81
  • 400lbs [181kg] Max. Weight Per Door

  • 144" (12'- 0") [3658mm] x 2 Track Length
  • 48" [1219mm] Max. Width Per Door

  • 2-1/4" [57mm] Door Thickness
  • 9-1/4" [235mm] Min. Wall Structure Thickness

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • Trackless Door Guiding
    • Manufacturer part number: 20BP1443
    Products specifications
    Hardware Sets2-Door
    Max. Weight Per Door400lbs. [181kg]
    Track Length144" x 2 (12' - 0" x 2) [3658mm x 2]
    Max. Door Width48" X 2 (4' - 0" X 2) [1219mm X 2]
    Max. Door HeightUnlimited
    Door Thickness2-1/4" [57mm]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]
    Products specifications
    Hardware Sets2-Door
    Max. Weight Per Door400lbs. [181kg]
    Track Length144" x 2 (12' - 0" x 2) [3658mm x 2]
    Max. Door Width48" X 2 (4' - 0" X 2) [1219mm X 2]
    Max. Door HeightUnlimited
    Door Thickness2-1/4" [57mm]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]
