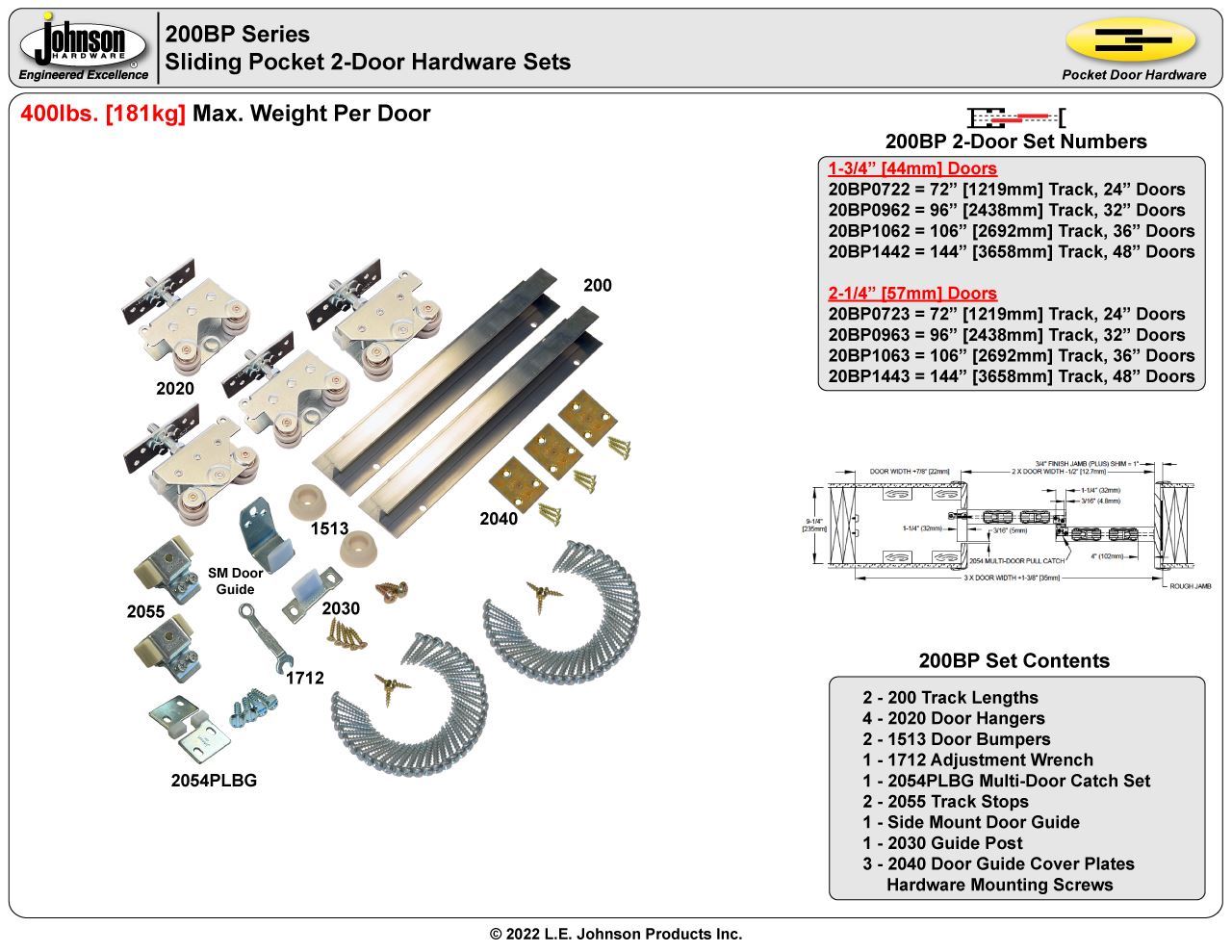

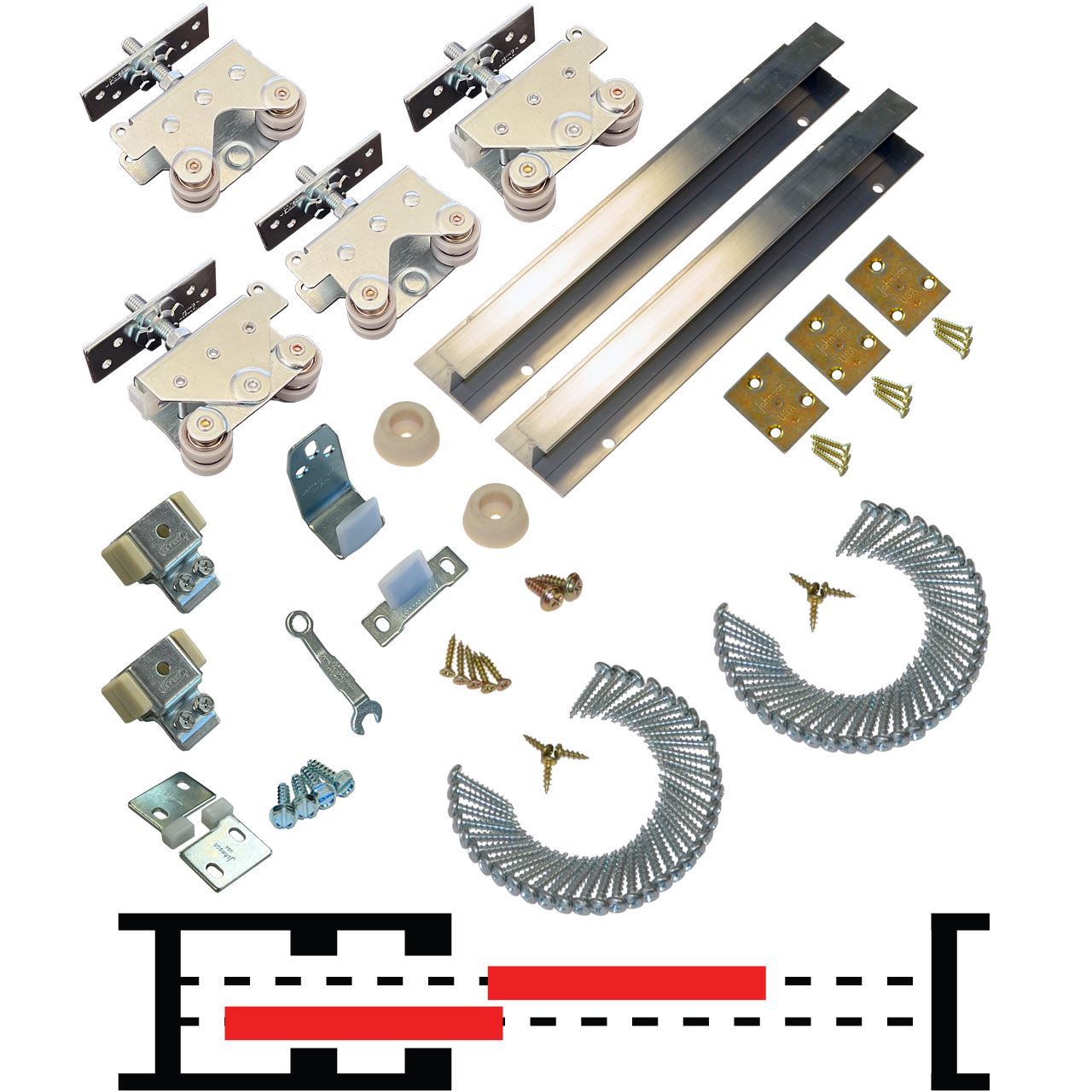

  • 200BP 36" x 2-Door Bypass Pocket Door Hardware Set, 1-3/4" Door
Picture of 200BP 36" x 2-Door Bypass Pocket Door Hardware Set, 1-3/4" Door
Picture of 200BP 36" x 2-Door Bypass Pocket Door Hardware Set, 1-3/4" Door Picture of 200BP 36" x 2-Door Bypass Pocket Door Hardware Set, 1-3/4" Door

200BP 36" x 2-Door Bypass Pocket Door Hardware Set, 1-3/4" Door

$346.35
  • 400lbs [181kg] Max. Weight Per Door

  • 106" (8'- 10") [2692mm] x 2 Track Length
  • 36" [914mm] Max. Width Per Door

  • 1-3/4" [44mm] Door Thickness
  • 9-1/4" [235mm] Min. Wall Structure Thickness

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • Trackless Door Guiding
    • Manufacturer part number: 20BP1062
    Products specifications
    Hardware Sets2-Door
    Max. Weight Per Door400lbs. [181kg]
    Track Length106" x 2 (8' - 10" x 2) [2692mm x 2]
    Max. Door Width36" X 2 (3' - 0" X 2) [914mm X 2]
    Max. Door HeightUnlimited
    Door Thickness1-3/4" [44mm]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]
    Products specifications
    Hardware Sets2-Door
    Max. Weight Per Door400lbs. [181kg]
    Track Length106" x 2 (8' - 10" x 2) [2692mm x 2]
    Max. Door Width36" X 2 (3' - 0" X 2) [914mm X 2]
    Max. Door HeightUnlimited
    Door Thickness1-3/4" [44mm]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]
