  • 200BP 32" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door

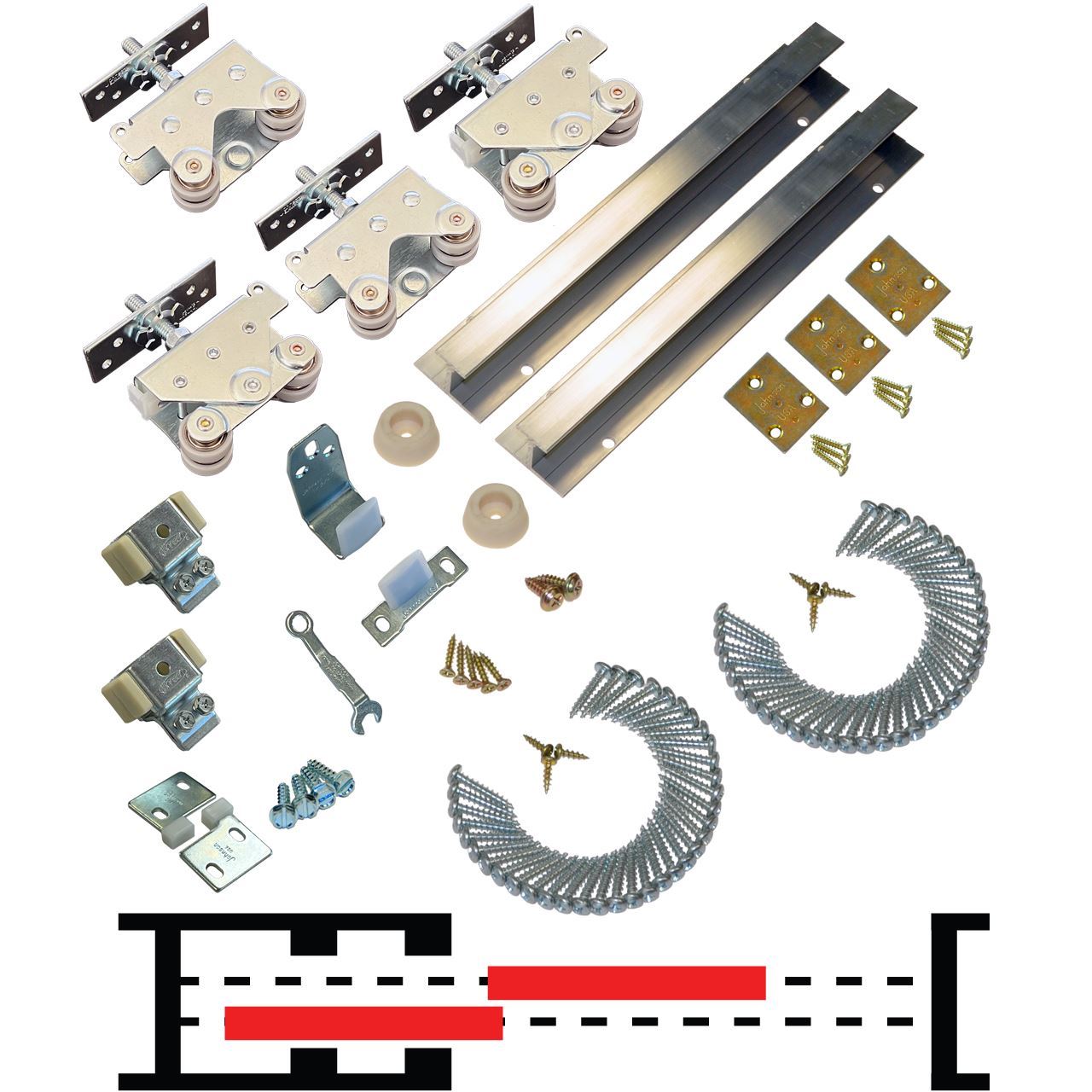

Picture of 200BP 32" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door
Picture of 200BP 32" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door Picture of 200BP 32" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door

200BP 32" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door

$306.39
  • 400lbs [181kg] Max. Weight Per Door

  • 96" (8'- 0") [2438mm] x 2 Track Length
  • 32" [813mm] Max. Width Per Door

  • 2-1/4" [57mm] Door Thickness
  • 9-1/4" [235mm] Min. Wall Structure Thickness

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • Trackless Door Guiding
    • Manufacturer part number: 20BP0963
    Products specifications
    Hardware Sets2-Door
    Max. Weight Per Door400lbs. [181kg]
    Track Length96” x 2 (8' - 0" x 2) [2438mm x 2]
    Max. Door Width32" X 2 (2' - 8" X 2) [813mm X 2]
    Max. Door HeightUnlimited
    Door Thickness2-1/4" [57mm]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]
    Products specifications
    Hardware Sets2-Door
    Max. Weight Per Door400lbs. [181kg]
    Track Length96” x 2 (8' - 0" x 2) [2438mm x 2]
    Max. Door Width32" X 2 (2' - 8" X 2) [813mm X 2]
    Max. Door HeightUnlimited
    Door Thickness2-1/4" [57mm]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]

    Related Products

    Picture of 200BP Bypass Pocket Door Hardware

    200BP Bypass Pocket Door Hardware

    From $271.22
  • 400lbs [181kg] Max. Weight Per Door

  • 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 9-1/4" [235mm] Min. Wall Structure Thickness

  • *189-1/2" (15' - 3/4") [4813mm] Max. Opening Width

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

    • * 4-Door Configuration

    200BP Installation Instructions
