  • 200BP 24" x 4-Door Bypass Pocket Door Hardware Set, 2-1/4" Door

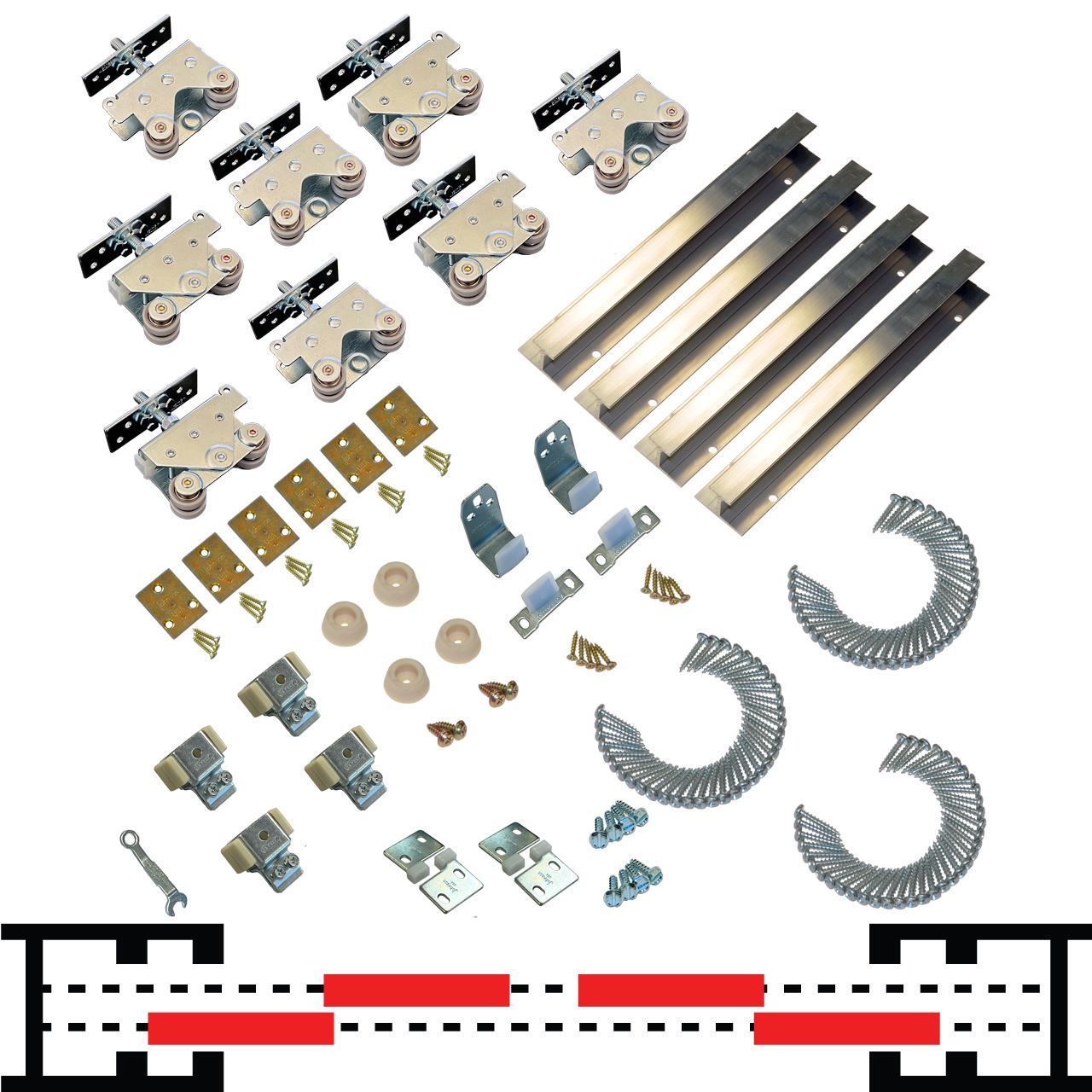

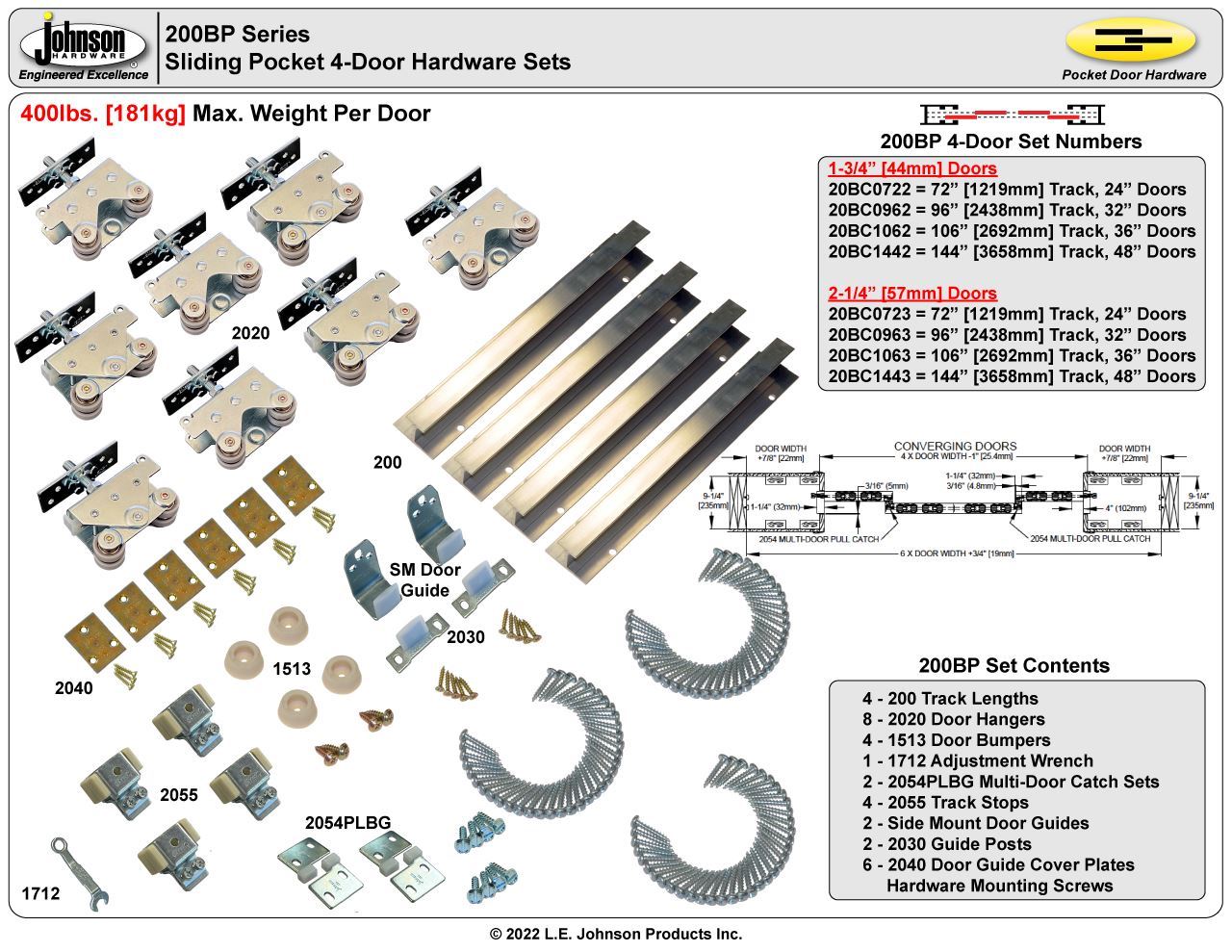

Picture of 200BP 24" x 4-Door Bypass Pocket Door Hardware Set, 2-1/4" Door
Picture of 200BP 24" x 4-Door Bypass Pocket Door Hardware Set, 2-1/4" Door Picture of 200BP 24" x 4-Door Bypass Pocket Door Hardware Set, 2-1/4" Door

200BP 24" x 4-Door Bypass Pocket Door Hardware Set, 2-1/4" Door

$542.43
  • 400lbs [181kg] Max. Weight Per Door

  • 72" (6'- 0") [1829mm] x 4 Track Length
  • 24" [610mm] Max. Width Per Door

  • 2-1/4" [57mm] Door Thickness
  • 9-1/4" [235mm] Min. Wall Structure Thickness

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • Trackless Door Guiding
    • Manufacturer part number: 20BC0723
    Products specifications
    Hardware Sets4-Door
    Max. Weight Per Door400lbs. [181kg]
    Track Length72" x 4 (6' - 0" x 4) [1829mm x 4]
    Max. Door Width24" X 4 (2' - 0" X 4) [610mm X 4]
    Max. Door HeightUnlimited
    Door Thickness2-1/4" [57mm]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]
    Products specifications
    Hardware Sets4-Door
    Max. Weight Per Door400lbs. [181kg]
    Track Length72" x 4 (6' - 0" x 4) [1829mm x 4]
    Max. Door Width24" X 4 (2' - 0" X 4) [610mm X 4]
    Max. Door HeightUnlimited
    Door Thickness2-1/4" [57mm]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]
