  • 20BP0723 200BP 24" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door
Picture of 20BP0723 200BP 24" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door
Picture of 20BP0723 200BP 24" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door Picture of 20BP0723 200BP 24" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door

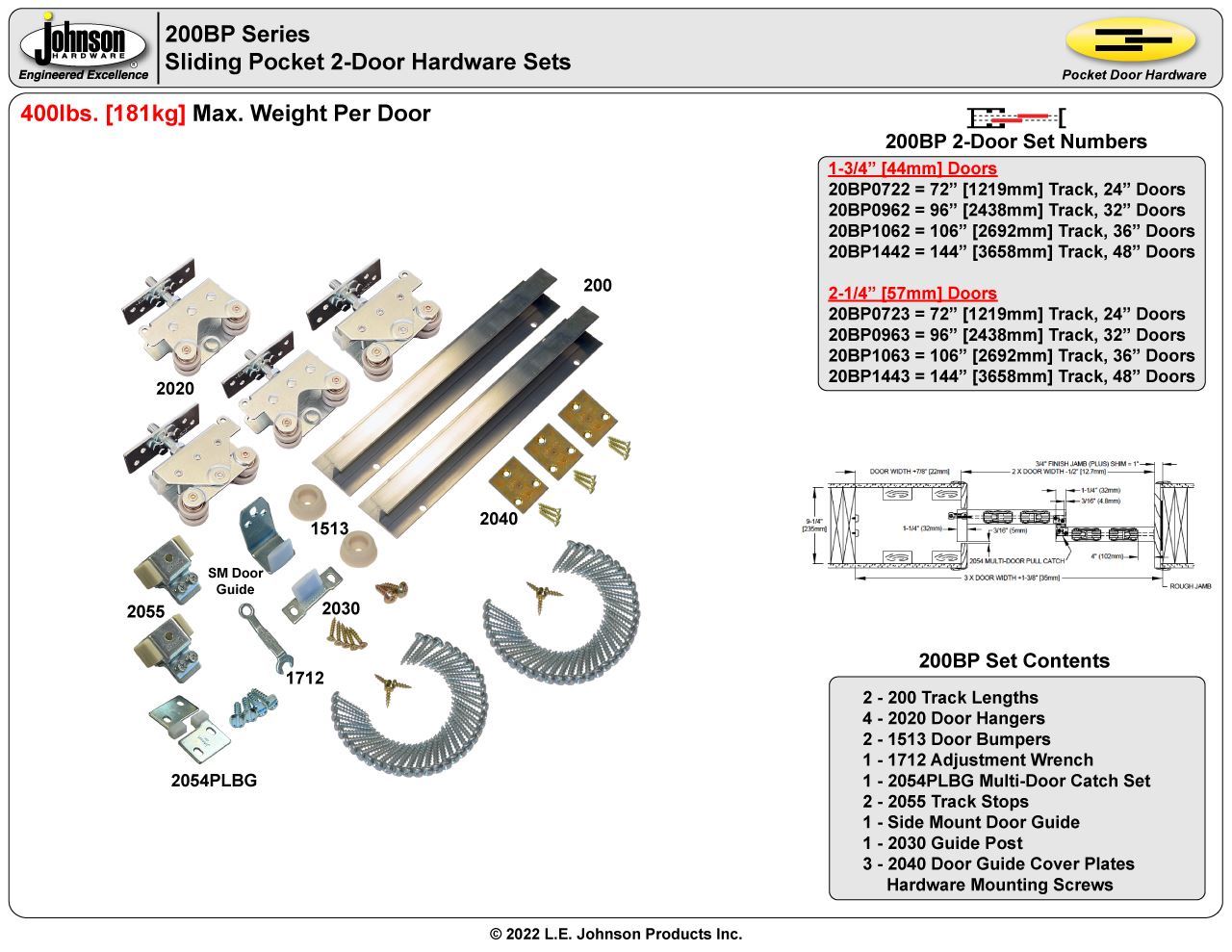

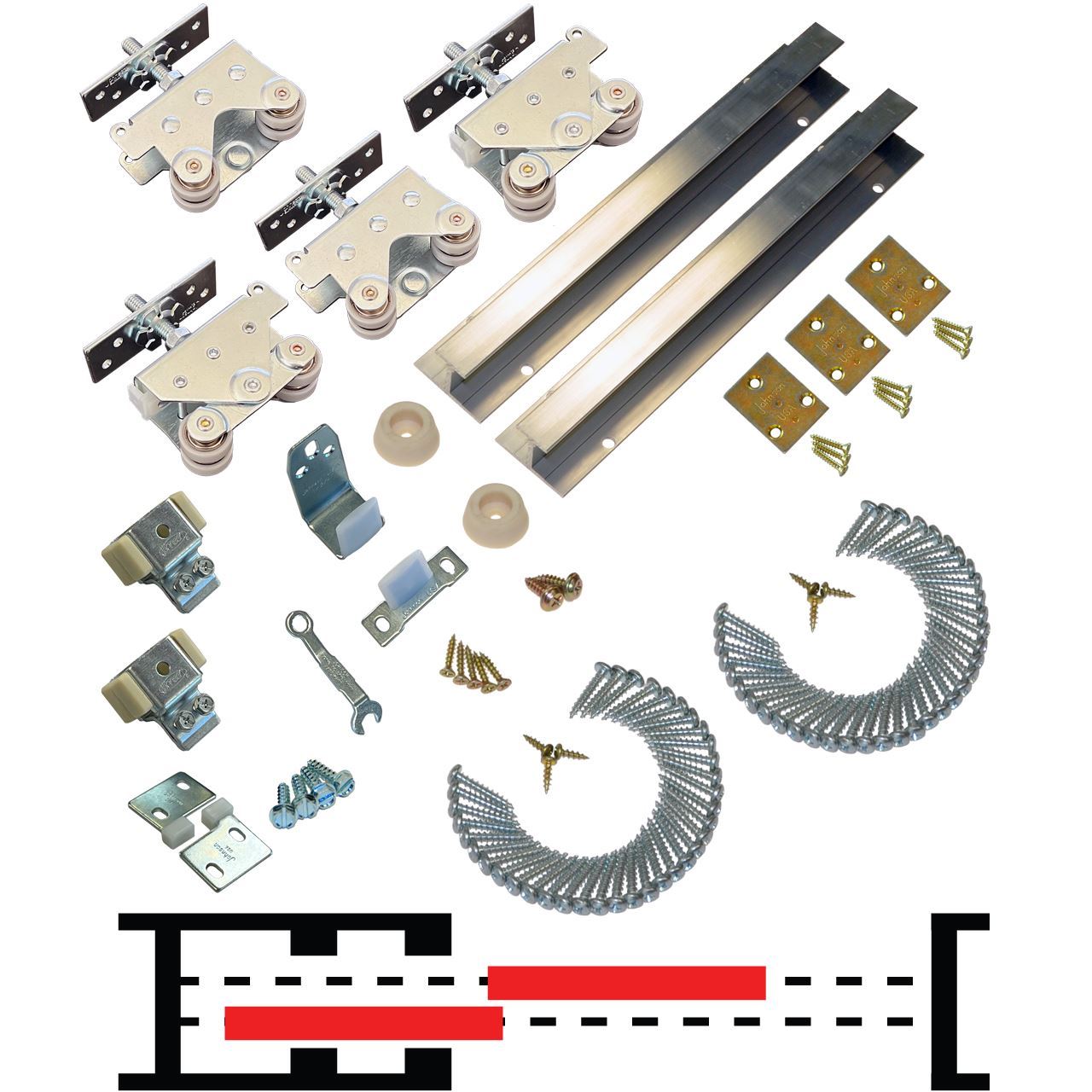

20BP0723 200BP 24" x 2-Door Bypass Pocket Door Hardware Set, 2-1/4" Door

$271.22
  • 400lbs [181kg] Max. Weight Per Door

  • 72" 6/0 [1829mm] x 2 Track Length
  • 24" 2/0 [610mm] x 2 Max. Width Per Door

  • 2-1/4" [57mm] Door Thickness
  • 9-1/4" (2 x 10) [235mm] Min. Wall Structure Thickness

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • Trackless Door Guiding
    • 200BP Installation Instructions
    Manufacturer part number: 20BP0723
    Products specifications
    Hardware Sets2-Door
    Max. Weight Per Door400lbs. [181kg]
    Track Length72" x 2 (6' - 0" x 2) [1829mm x 2]
    Max. Door Width24" X 2 (2' - 0" X 2) [610mm X 2]
    Max. Door HeightUnlimited
    Door Thickness2-1/4" [57mm]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]
    Products specifications
    Hardware Sets2-Door
    Max. Weight Per Door400lbs. [181kg]
    Track Length72" x 2 (6' - 0" x 2) [1829mm x 2]
    Max. Door Width24" X 2 (2' - 0" X 2) [610mm X 2]
    Max. Door HeightUnlimited
    Door Thickness2-1/4" [57mm]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]
