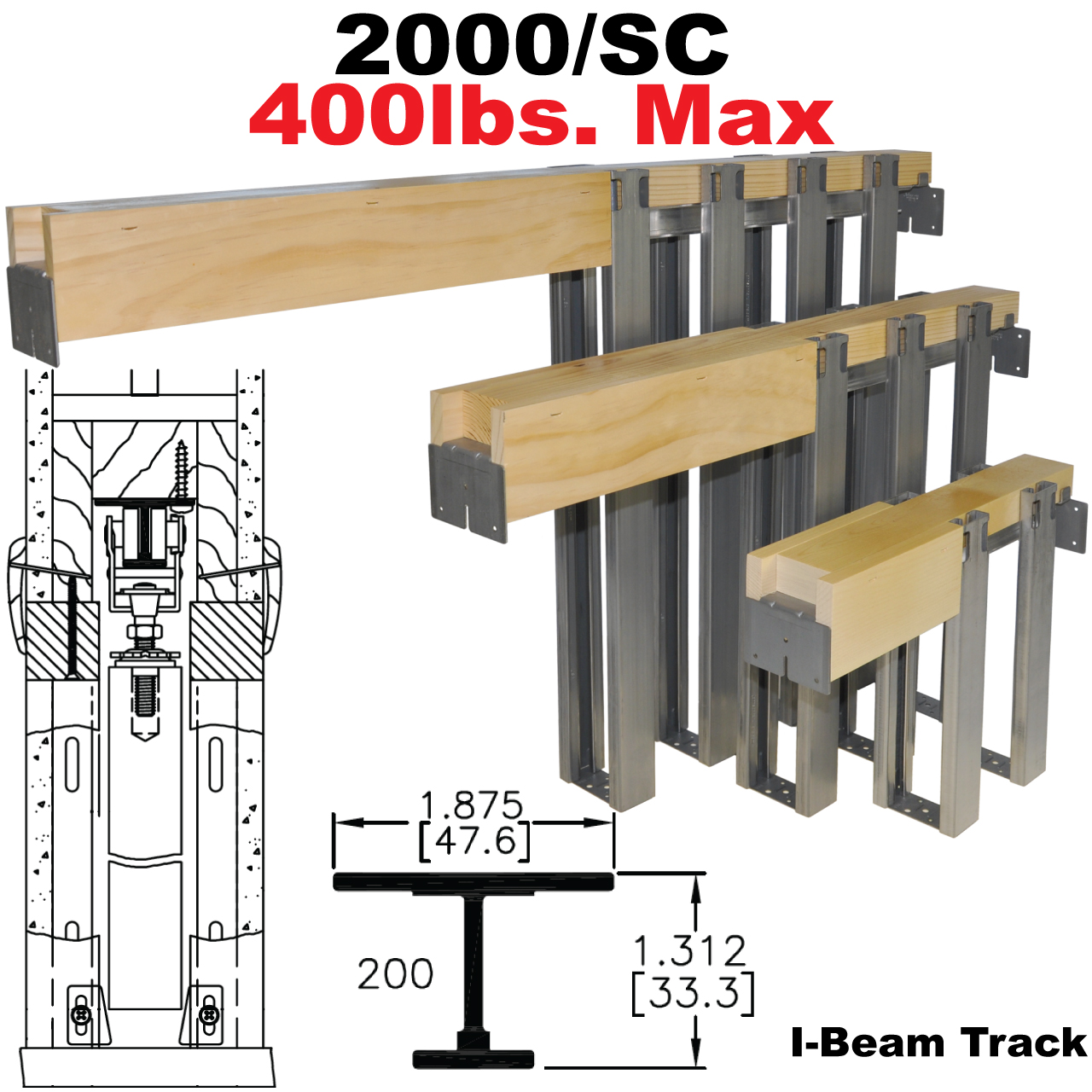

2000 Series Pocket Door Frames

  • 400lbs [181kg] Max. per door standard operation

  • 335lbs [150kg] Max. per door soft operation

  • 60" 5/0 [1524mm] x 108" 9/0 [2743mm] Max. door size

  • 1-1/8" [29mm] - 1-3/4" [44mm] Door thickness

  • 3-1/2" [89mm] (2x4) Min. wall structure thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws included
  • Commercial Grade Pocket Door Frame Kit

    • 2000 Installation Instructions
    *
    *
    *

    Related Products

    Picture of 2066 200 Series Soft Close Kit

    2066 200 Series Soft Close Kit

    $73.95
    Single Direction Soft Close Kit (2020 Door Hanger NOT included)
  • Single Direction Soft Operation

  • 330lbs. [150kg] Max. Door Weight

  • 200 Series Track Compatibility

  • Compatible with new version 2020 Door Hanger ONLY

  • 2000, 2060 Series Pocket Door Frame Compatibility

  • 200PD, 200BP, 200MP, 200MD, 200SD, 200SM, 200WM, 200WF, 200WG Series Hardware Compatibility

    • 2066 Installation Instructions
    Picture of 2050PLBG Converging Door Kit

    2050PLBG Converging Door Kit

    $17.83
    2000/2060 Series Pocket Door Frame Converging Door Kit.
    Hardware required to convert 2 single Pocket Door Frames into 1 Converging Pocket Door Installation.
    Picture of 1515-PLY Pocket Door Frame Plywood Clip Set

    1515-PLY Pocket Door Frame Plywood Clip Set

    $29.43
    The 1515-PLY clips 5/8" (19/32" Nominal) plywood panels (not Included) into ANY Johnson Hardware Pocket Door Frame resulting in a stronger pocket wall.
  • Replaces ALL previous versions of Johnson Plywood clips

  • Compatible With ALL Johnson Pocket Door Frames

  • Add Strength and Rigidity to Pocket Door Walls

  • Solid Mounting Structure To Hang Objects or Tile

  • Requires 5/8" (19/32" Nominal) Plywood (NOT INCLUDED)


    • 1515-PLY Installation Instructions
    Picture of 2041PLBG Hidden Pocket Door Guide Kit

    2041PLBG Hidden Pocket Door Guide Kit

    $11.72
    2041PLBG Hidden Pocket Door Guide Installation Instructions
    Picture of 2020 Door Hanger

    2020 Door Hanger

    $36.89
  • 400lbs [181kg] Weight capacity

  • 1" [25mm] Wheel Diameter

  • Nylon Encapsulated Ball Bearing Wheel

  • Top Mount Hanger Plate

  • Commercial Grade

  • Compatible with 200 Series Track Only

    • Picture of 2021 Hanger Plate Assembly

    2021 Hanger Plate Assembly

    $9.71
  • Hanger Plate Assembly Only, Carrier NOT Included.

  • Compatible with 2020 Hanger Type Only.

    • Picture of 2027SD-1 Pocket Door Part Set

    2027SD-1 Pocket Door Part Set

    $84.84
    200PD, 200PDSC, 2000, 2000SC, 2060, 2060SC Series Pocket Door Part Set
    Picture of 2055 Track Stop

    2055 Track Stop

    $9.09
    Track Stop for 200 Series Track
    Picture of 2000 Series Split Stud Sets

    2000 Series Split Stud Sets

    From $59.56
    2000 Series Split Stud Sets For Standard Door Heights
  • 1-3/4 Max. Door Thickness

    • Picture of 512085 Floor Bracket

    512085 Floor Bracket

    $1.90
    2 x 4 Wall Steel Stud Floor Bracket
    Picture of 1574 4" [100mm] Steel Stud Wall Adaptor Kit

    1574 4" [100mm] Steel Stud Wall Adaptor Kit

    $9.16
  • Frame Series Compatibility: 1500SC, 2000

  • Spaces Split Studs for 4" [100mm] Steel Stud Wall.

  • Accepts doors up to 1-3/4" [44mm] Thick.

  • 1574PLBG Installation Instructions
    • Picture of 1550 Pocket Door Guide Set

    1550 Pocket Door Guide Set

    $0.63
    Jamb Mount Pocket Door Guide Set
    Picture of 2081PLBG Pocket Glass Door Guide Set

    2081PLBG Pocket Glass Door Guide Set

    $9.21
    Guide Set for 1/2" Glass Pocket Door.
    Compatible with 2000 and 2060 Pocket Door Frames only.
    2081PLBG Hidden Pocket Door Guide Installation Instructions
    Picture of 2087 Pocket Glass Door Guide (Sub Floor)

    2087 Pocket Glass Door Guide (Sub Floor)

    $4.52
    Picture of 2088 Pocket Glass Door Guide (Finish Floor)

    2088 Pocket Glass Door Guide (Finish Floor)

    $4.48
    Picture of 2071 Glass Door Plate

    2071 Glass Door Plate

    $42.18
  • SINGLE PLATE, 2 PLATES REQUIRED PER DOOR

  • 1/2" [12mm] Door Thickness

  • Compatible with 2020 Hanger Only

  • Convert 2000 and 2060 Pocket Door Frames to Accept Glass Door

    • Picture of 1513 Door Bumper

    1513 Door Bumper

    $0.41
    Sliding Door Bumper
    Picture of 2083 Pocket Door Guide (finished floor)

    2083 Pocket Door Guide (finished floor)

    $4.14
    Picture of 2084 Pocket Door Guide (sub floor)

    2084 Pocket Door Guide (sub floor)

    $4.16
    Picture of 2040 Door Guide Cover Plate

    2040 Door Guide Cover Plate

    $3.52
    Plate used to cover guide grooves routed in door bottom.
    Picture of 200 Series Track

    200 Series Track

    From $49.59
  • 192" (16'- 0") [4877mm] Max. Length

  • Commercial/Residential Application

  • I-Beam Track Profile

  • 6063T6 Extruded Aluminum Track Material

  • Mill Grade Aluminum Track Finish

    • Picture of 512086 Pocket End Jamb Bracket

    512086 Pocket End Jamb Bracket

    $2.71
    2000 Series Pocket Door Header Jamb Bracket, Pocket End
    Picture of 512080 Passage End Jamb Bracket, Steel Stud Frame

    512080 Passage End Jamb Bracket, Steel Stud Frame

    $1.58
    Passage End Pocket Door Header Bracket
    Picture of 322066 Self Tapping Drywall Screw Set

    322066 Self Tapping Drywall Screw Set

    $2.90
    Self Tapping Drywall Screw Set for All Steel Split Studs.
    Picture of 322061 Self Tapping Trim Screw Set

    322061 Self Tapping Trim Screw Set

    $2.16
    Self Tapping Trim Screw Set for All Steel Split Studs. Uses #1 Square Drive Bit
    Picture of 20312006 Replacement Header Bag

    20312006 Replacement Header Bag

    $21.25
    Hardware Set (Header Bag) delivered with 2000/2060 Pocket Door Frame from the factory.
    Picture of Auto-Latching Pocket Door Locks

    Auto-Latching Pocket Door Locks

    From $10.71
  • 1-3/8" [35mm] Door Thickness
  • 2-3/8" [60mm] Standard Backset

  • 2-1/8" [54mm] Lock Bore

  • 15/16" [24mm] End Bore

  • Privacy Lock Function

  • Self-Latching Lock Operation

  • US3, US15, Black Available Finishes

  • Residential Product Grade

    • Picture of Pocket Door Edge Pulls

    Pocket Door Edge Pulls

    From $7.55
    Pocket Door Edge Pulls provide a finger grip when pulling doors out of a pocket. Edge Pulls are mortised into the door edge and finger grips retract into the door edge when not in use for a clean look.
