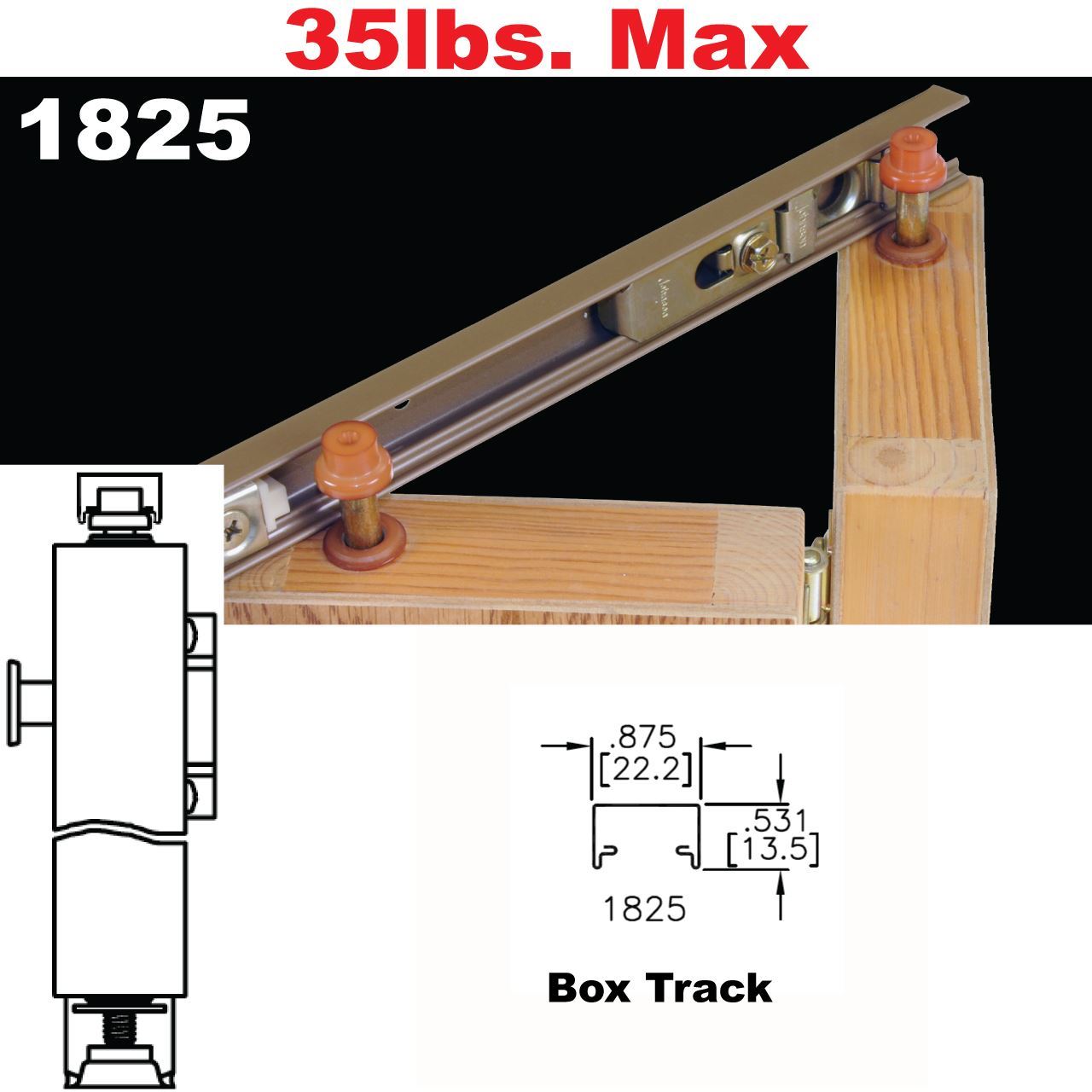

Picture of 1825 "Tap-In" Bi-Fold Door Hardware

1825 "Tap-In" Bi-Fold Door Hardware

  • 35lbs [16kg] Max Panel Weight Each

  • 17-3/4" [451mm] Max Width per Panel

  • 96" [2438mm] Max Panel Height

  • 1-1/8" [29mm] to 1-3/4" [44mm] Panel Thickness
  • Tap In Pivot/Guide Type

  • Residential Grade Bi-Fold Door Hardware

    • 1825 Installation Instructions
    *
    *
    *
    *

    Products specifications
    Max. Weight Per Panel35 lbs. [16kg]
    ApplicationInterior Residential
    Panel Thickness1-1/8" [29mm] to 1-3/4" [44mm]
    Series Track1825
    Track FinishBrown
    Track MaterialRolled Steel
    Track ProfileBox Track
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeResidential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Panel35 lbs. [16kg]
    ApplicationInterior Residential
    Panel Thickness1-1/8" [29mm] to 1-3/4" [44mm]
    Series Track1825
    Track FinishBrown
    Track MaterialRolled Steel
    Track ProfileBox Track
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeResidential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

    Related Products

    Picture of 18310002 1825 3 HG HDWE W/1/2 1808

    18310002 1825 3 HG HDWE W/1/2 1808

    $15.10
    Picture of 18310005 1825 3 HG W/#37-1/2 1808

    18310005 1825 3 HG W/#37-1/2 1808

    $14.69
    Picture of 18310014 1825 2 DR W/1/2 ALIGNER

    18310014 1825 2 DR W/1/2 ALIGNER

    $8.56
    Picture of 18310015 1825 2 DR W/#37-1/2 1808

    18310015 1825 2 DR W/#37-1/2 1808

    $8.56
    Picture of 1825 Series Track (bi-fold doors)

    1825 Series Track (bi-fold doors)

    From $6.83
  • 96" 8/0 [2438mm] Max. Length

  • Box Track Profile

  • Rolled Steel Track Material

  • Enamel Paint Track Finish

    • Picture of 1703 HINGE BULK W/SCREWS

    1703 HINGE BULK W/SCREWS

    $2.30
    Spring Assist Non-Mortise Panel Hinge
    Picture of 1712 WRENCH BULK

    1712 WRENCH BULK

    $0.57
    Adjustment Wrench
    Picture of 1713 SNUBBER BULK

    1713 SNUBBER BULK

    $1.05
    Track Stop for 1700/170A/1800 Series Track
    Picture of 1801 TOP PIVOT GUIDE 7/16" DIA

    1801 TOP PIVOT GUIDE 7/16" DIA

    $1.38
    Picture of 1804 FLOOR BRKT BULK

    1804 FLOOR BRKT BULK

    $2.54
    Picture of 1805 HINGE BULK W/SCREWS

    1805 HINGE BULK W/SCREWS

    $2.12
    Picture of 1807 BOTTOM PIVOT 7/16" DIA

    1807 BOTTOM PIVOT 7/16" DIA

    $1.26
    Picture of 1808 ALIGNER BULK W/SCREWS

    1808 ALIGNER BULK W/SCREWS

    $1.13
    Picture of 1810 TOP PIVOT SOCKET BULK

    1810 TOP PIVOT SOCKET BULK

    $1.84
    Picture of 1811 JAMB BRKT BULK

    1811 JAMB BRKT BULK

    $1.92
    Picture of 1823 WINDOW HINGE BULK W/SCRS

    1823 WINDOW HINGE BULK W/SCRS

    $1.95
    Picture of 1836 CARPET RISER BULK

    1836 CARPET RISER BULK

    $2.14
    Folding Door Bottom Pivot Carpet Riser
  • 1836 Carpet Riser Application Guide
    • Picture of 33--PPK2 33 KNOB PEEK PAK

    33--PPK2 33 KNOB PEEK PAK

    $2.58
    Woodtone Styrene Plastic

    Size: 1-3/4" [44mm] Dia.

    Picture of 37--PLBG KNOB WHITE POLYBAGGED

    37--PLBG KNOB WHITE POLYBAGGED

    $1.27
    White Styrene Plastic

    Size: 1-3/4" [44mm] Dia.
