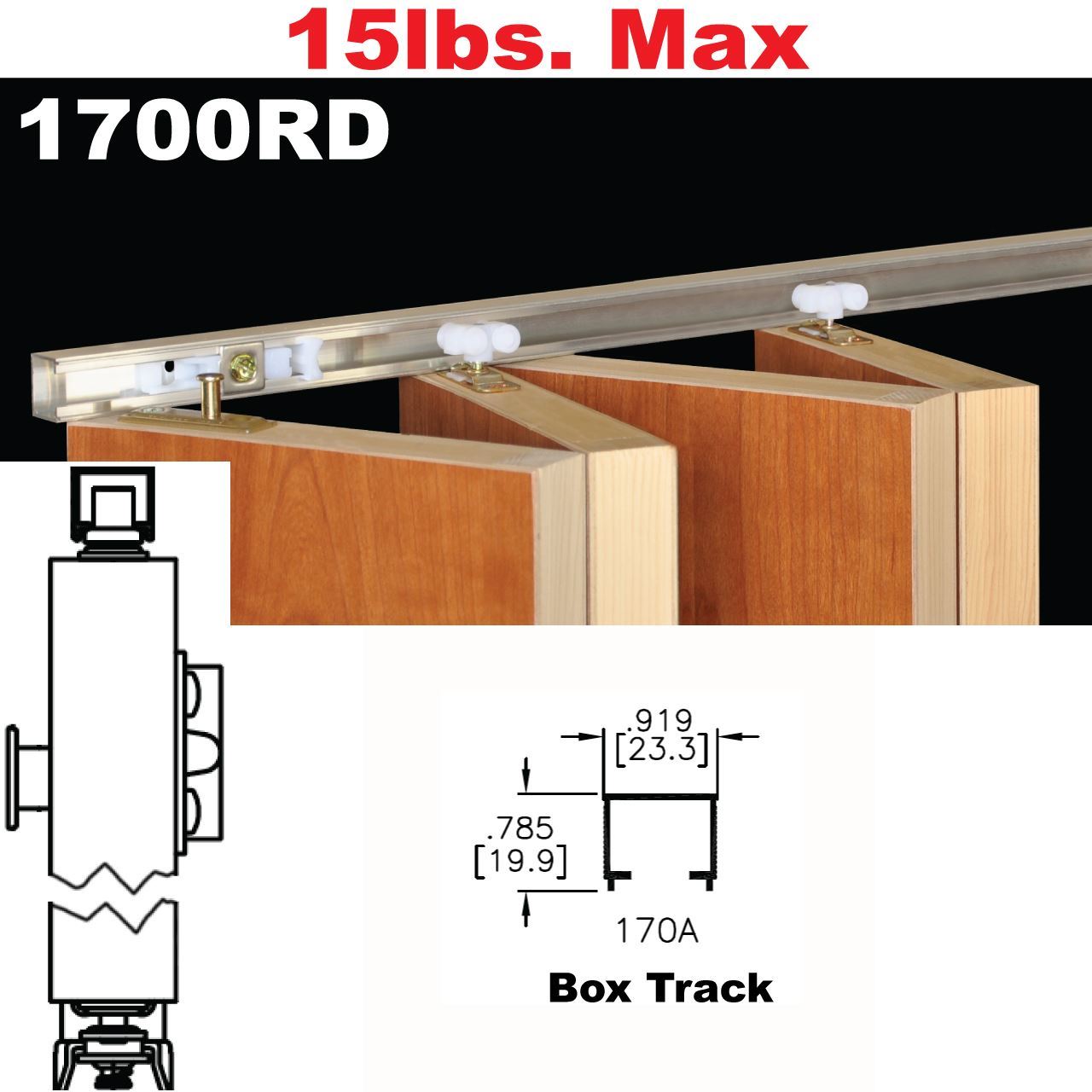

Picture of 1700RD Multi-Fold Door Hardware

1700RD Multi-Fold Door Hardware

  • 15lbs [7kg] Max Panel Weight Each

  • 18" [457mm] Max Panel Width Each

  • 80" [2032mm] Max Panel Height

  • 1" [25mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount Hanger Type

  • Residential Grade Top Hung Multi-Fold Door Hardware

    • 1700RD Installation Instructions
    Products specifications
    Max. Weight Per Panel15 lbs. [7kg]
    ApplicationInterior Residential
    Panel Thickness1" [25mm] to 1-3/4" [44mm]
    Series Track170A
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel TypeMachine Turned and Balanced Nylon, Factory Greased
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeResidential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Panel15 lbs. [7kg]
    ApplicationInterior Residential
    Panel Thickness1" [25mm] to 1-3/4" [44mm]
    Series Track170A
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel TypeMachine Turned and Balanced Nylon, Factory Greased
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeResidential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
