  • 1734726H 1700FS 4-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 72" 6/0 [1829mm] Track Length

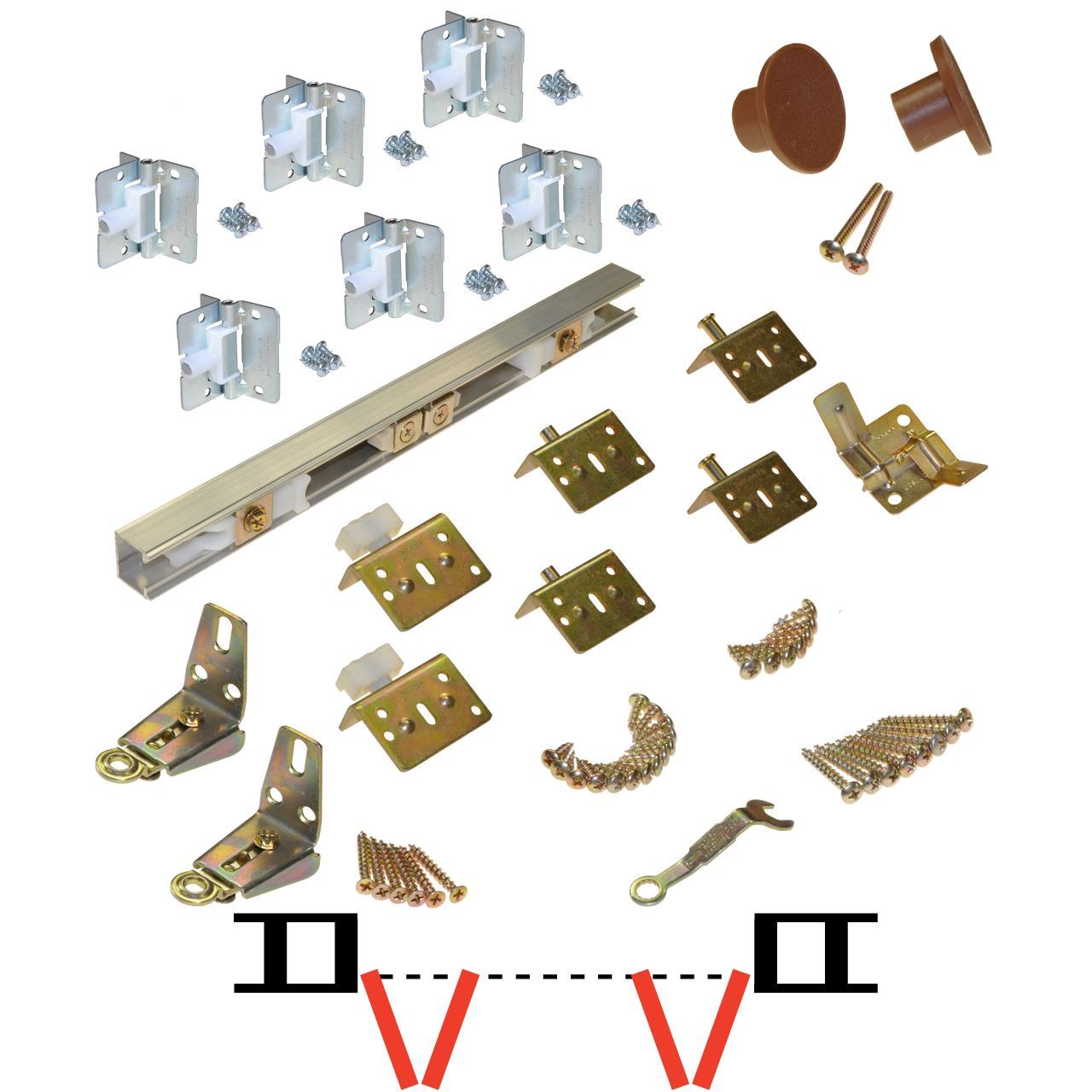

Picture of 1734726H 1700FS 4-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 72" 6/0 [1829mm] Track Length
Picture of 1734726H 1700FS 4-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 72" 6/0 [1829mm] Track Length Picture of 1734726H 1700FS 4-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 72" 6/0 [1829mm] Track Length

1734726H 1700FS 4-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 72" 6/0 [1829mm] Track Length

$63.08
  • 40lbs [18kg] Max Weight per Panel

  • 72" 6/0 [1829mm] Track Length

  • 17-3/4" [451mm] x 4 Max Width per Panel

  • 96" 8/0 [2438mm] Max Panel Height

  • 3/4" [19mm] Panel Thickness
  • Mill Aluminum Track Type

  • Side Mount Hardware Attachment

  • Residential Grade Top Hung Bi-Fold Door Hardware

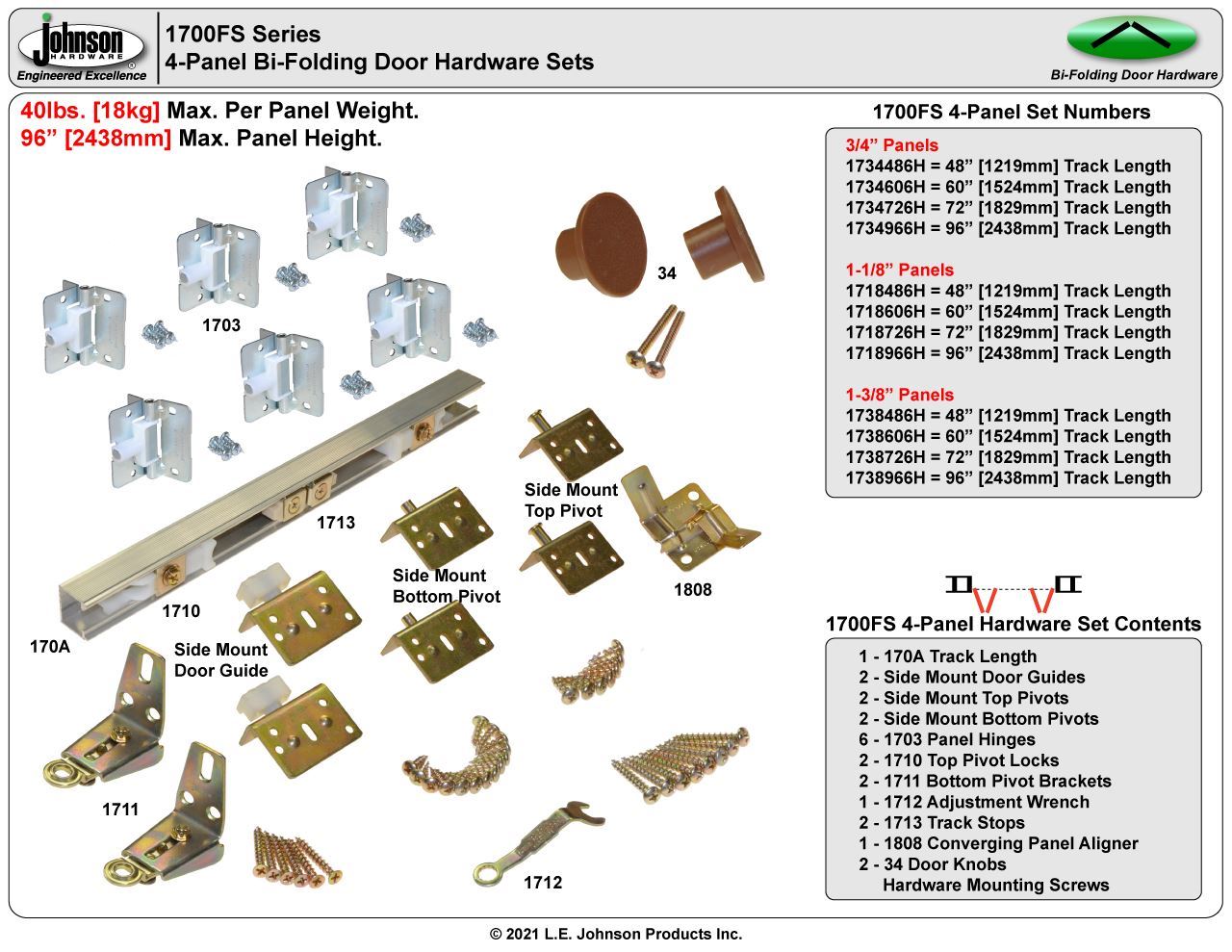

    • 1700FS Installation Instructions
    Manufacturer part number: 1734726H
    Products specifications
    Hardware Sets4-Panel
    Max. Panel Width18" x 4 (1' - 6" x 4) [457mm x 4]
    Track Length72" (6' - 0") [1829mm]
    Panel Thickness3/4" [19mm]
    Panels4-Panels
    Products specifications
    Hardware Sets4-Panel
    Max. Panel Width18" x 4 (1' - 6" x 4) [457mm x 4]
    Track Length72" (6' - 0") [1829mm]
    Panel Thickness3/4" [19mm]
    Panels4-Panels
