  • 1738726H 1700FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 72" 6/0 [1829mm] Track Length
Picture of 1738726H 1700FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 72" 6/0 [1829mm] Track Length
Picture of 1738726H 1700FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 72" 6/0 [1829mm] Track Length Picture of 1738726H 1700FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 72" 6/0 [1829mm] Track Length

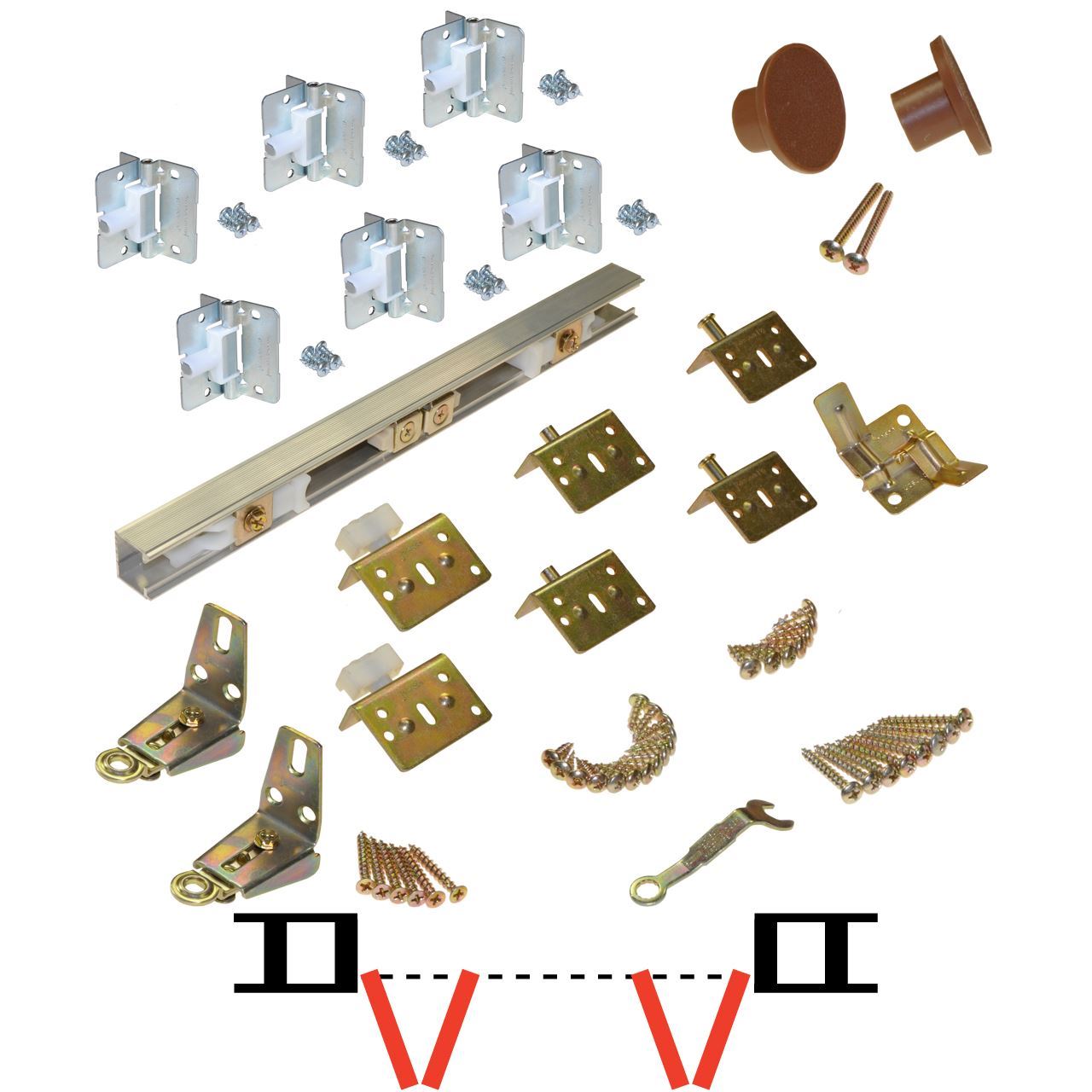

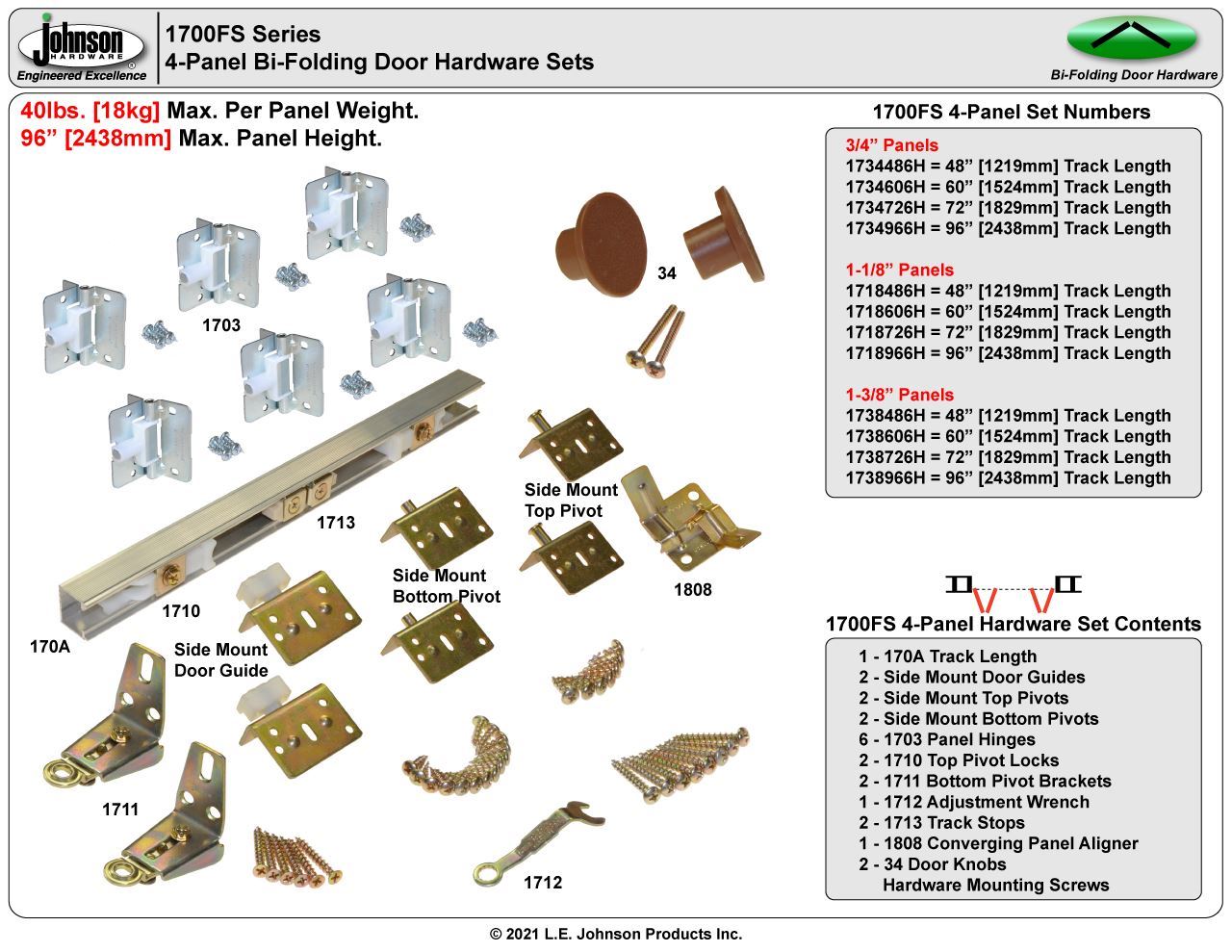

1738726H 1700FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 72" 6/0 [1829mm] Track Length

$62.52
  • 40lbs [18kg] Max Weight per Panel

  • 72" 6/0 [1829mm] Track Length

  • 17-3/4" [451mm] x 4 Max Width per Panel

  • 96" 8/0 [2438mm] Max Panel Height

  • 1-3/8" [35mm] Panel Thickness
  • Mill Aluminum Track Type

  • Side Mount Hardware Attachment

  • Residential Grade Top Hung Bi-Fold Door Hardware

    • 1700FS Installation Instructions
    Manufacturer part number: 1738726H
    Products specifications
    Hardware Sets4-Panel
    Max. Panel Width18" x 4 (1' - 6" x 4) [457mm x 4]
    Track Length72" (6' - 0") [1829mm]
    Panel Thickness1-3/8" [35mm]
    Panels4-Panels
    Products specifications
    Hardware Sets4-Panel
    Max. Panel Width18" x 4 (1' - 6" x 4) [457mm x 4]
    Track Length72" (6' - 0") [1829mm]
    Panel Thickness1-3/8" [35mm]
    Panels4-Panels
