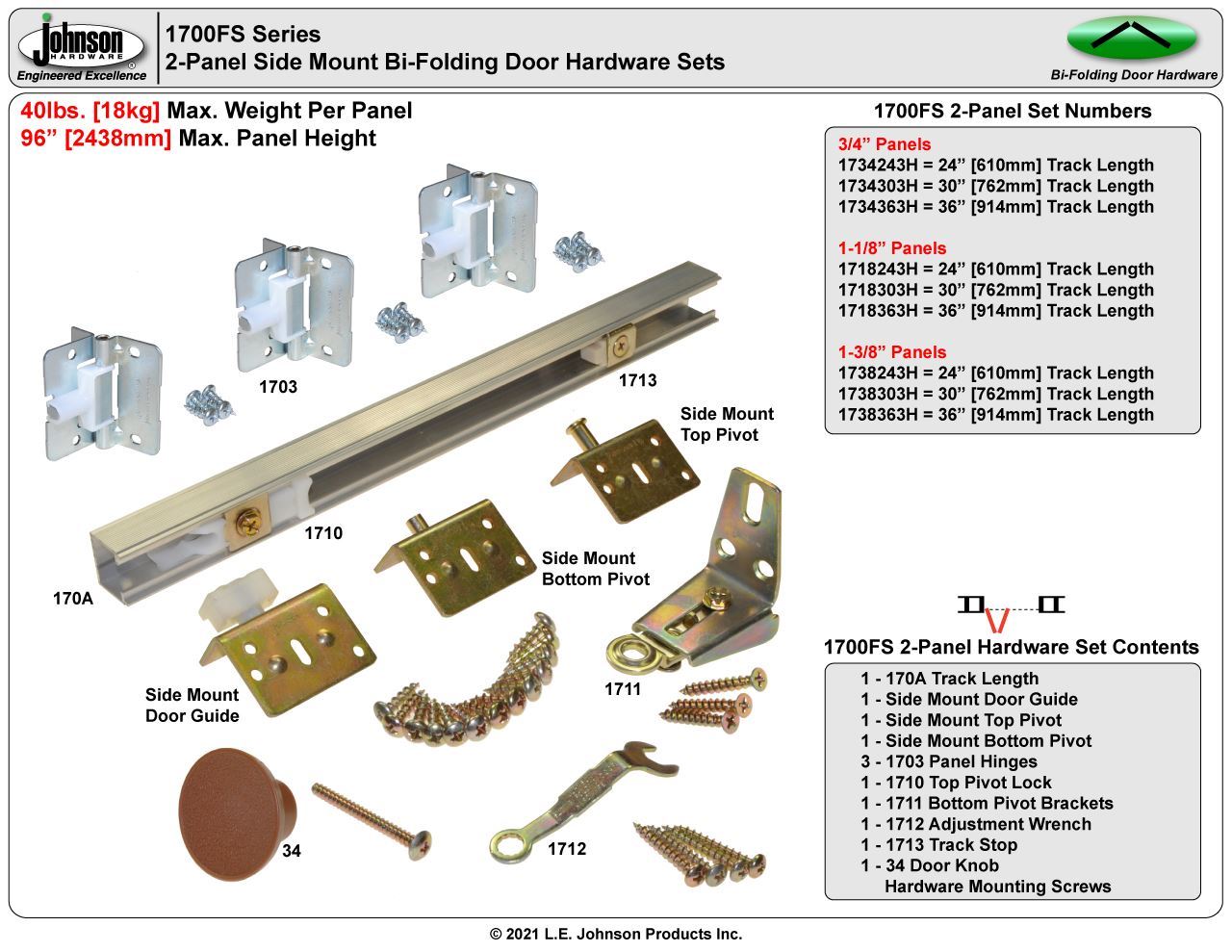

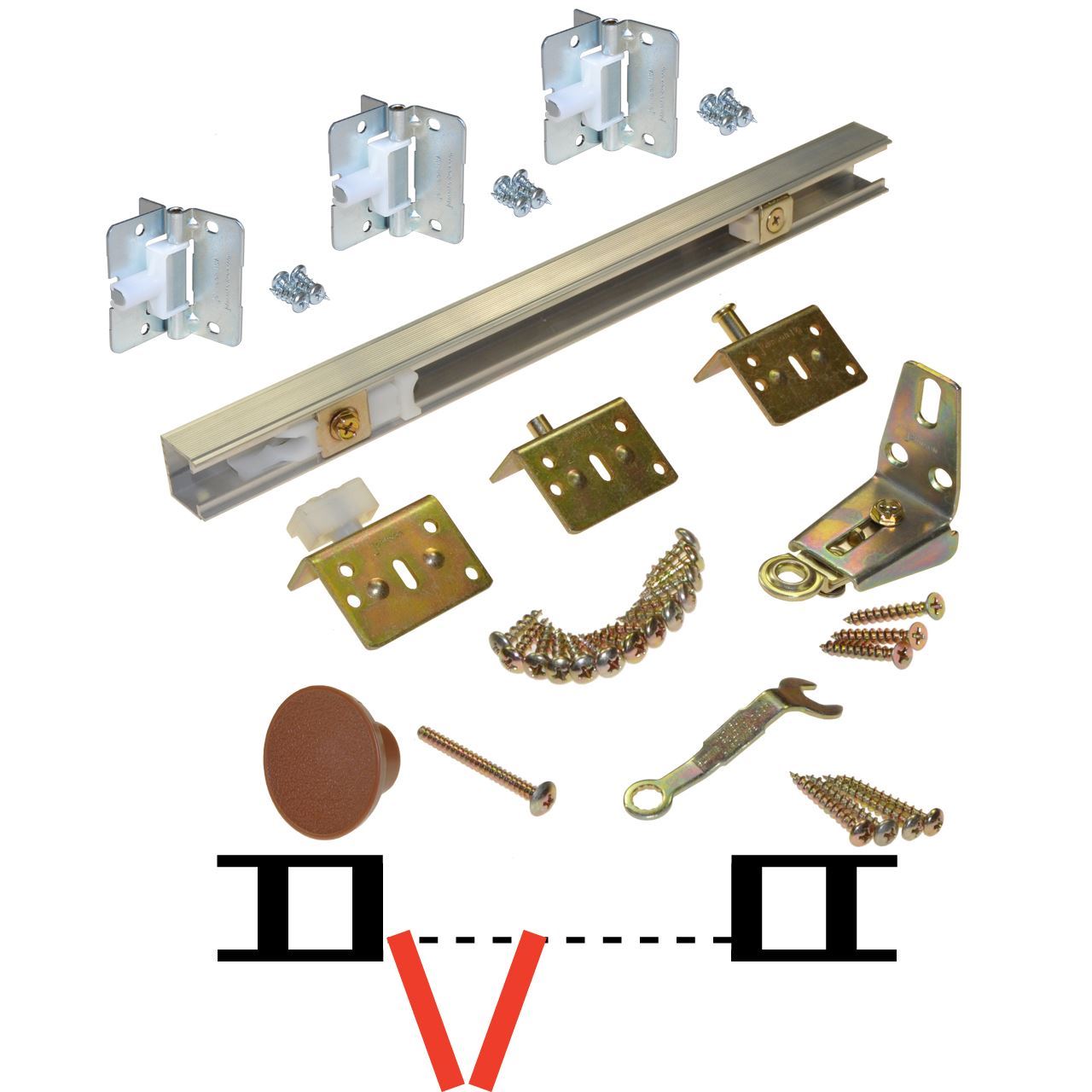

1734363H 1700FS 2-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 36" 3/0 [914mm] Track Length

$32.26
  • 40lbs [18kg] Max Weight per Panel

  • 36" 3/0 [914mm] Track Length

  • 17-3/4" [451mm] x 2 Max Width per Panel

  • 96" 8/0 [2438mm] Max Panel Height

  • 3/4" [19mm] Panel Thickness
  • Mill Aluminum Track Type

  • Side Mount Hardware Attachment

  • Residential Grade Top Hung Bi-Fold Door Hardware

    • 1700FS Installation Instructions
    Manufacturer part number: 1734363H
    Products specifications
    Hardware Sets2-Panel
    Max. Panel Width18" x 2 (1' - 6" x 2) [457mm x 2]
    Track Length36" (3' - 0") [914mm]
    Panel Thickness3/4" [19mm]
    Panels2-Panels
    Products specifications
    Hardware Sets2-Panel
    Max. Panel Width18" x 2 (1' - 6" x 2) [457mm x 2]
    Track Length36" (3' - 0") [914mm]
    Panel Thickness3/4" [19mm]
    Panels2-Panels
