  • 1718606H 1700FS 4-Panel Side Mount Hardware Set, 1-1/8" [29mm] Door, 60" 5/0 [1524mm] Track Length

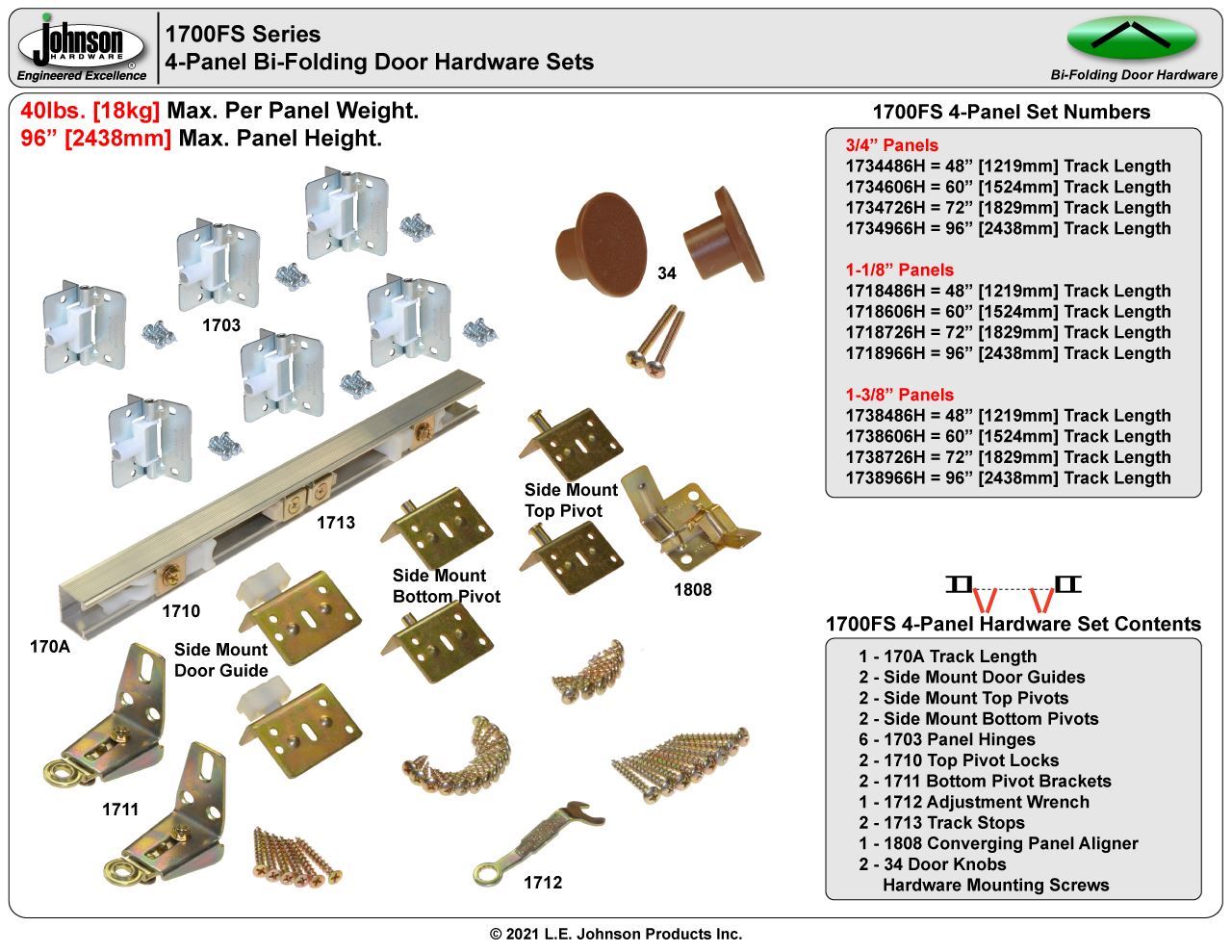

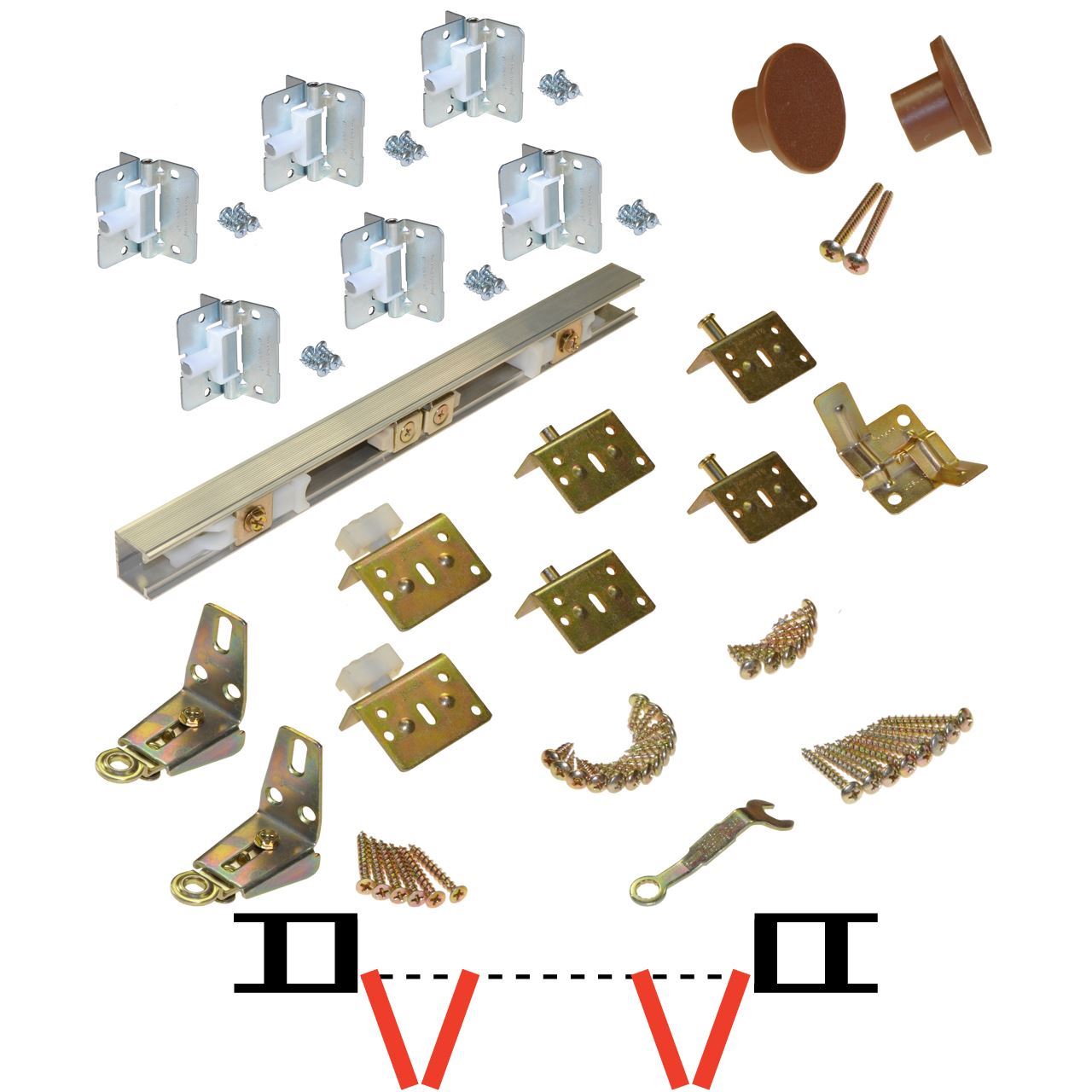

Picture of 1718606H 1700FS 4-Panel Side Mount Hardware Set, 1-1/8" [29mm] Door, 60" 5/0 [1524mm] Track Length
Picture of 1718606H 1700FS 4-Panel Side Mount Hardware Set, 1-1/8" [29mm] Door, 60" 5/0 [1524mm] Track Length Picture of 1718606H 1700FS 4-Panel Side Mount Hardware Set, 1-1/8" [29mm] Door, 60" 5/0 [1524mm] Track Length

1718606H 1700FS 4-Panel Side Mount Hardware Set, 1-1/8" [29mm] Door, 60" 5/0 [1524mm] Track Length

$61.45
  • 40lbs [18kg] Max Weight per Panel

  • 60" 5/0 [1524mm] Track Length

  • 14-3/4" [375mm] x 4 Max Width per Panel

  • 96" 8/0 [2438mm] Max Panel Height

  • 1-1/8" [29mm] Panel Thickness
  • Mill Aluminum Track Type

  • Side Mount Hardware Attachment

  • Residential Grade Top Hung Bi-Fold Door Hardware

    • 1700FS Installation Instructions
    Manufacturer part number: 1718606H
    Products specifications
    Hardware Sets4-Panel
    Max. Panel Width15" x 4 (1' - 3" x 4) [381mm x 4]
    Track Length60" (5' - 0") [1524mm]
    Panel Thickness1-1/8" [29mm]
    Panels4-Panels
    Products specifications
    Hardware Sets4-Panel
    Max. Panel Width15" x 4 (1' - 3" x 4) [381mm x 4]
    Track Length60" (5' - 0") [1524mm]
    Panel Thickness1-1/8" [29mm]
    Panels4-Panels
