  • 1734303H 1700FS 2-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 30" 2/6 [762mm] Track Length
Picture of 1734303H 1700FS 2-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 30" 2/6 [762mm] Track Length
Picture of 1734303H 1700FS 2-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 30" 2/6 [762mm] Track Length Picture of 1734303H 1700FS 2-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 30" 2/6 [762mm] Track Length

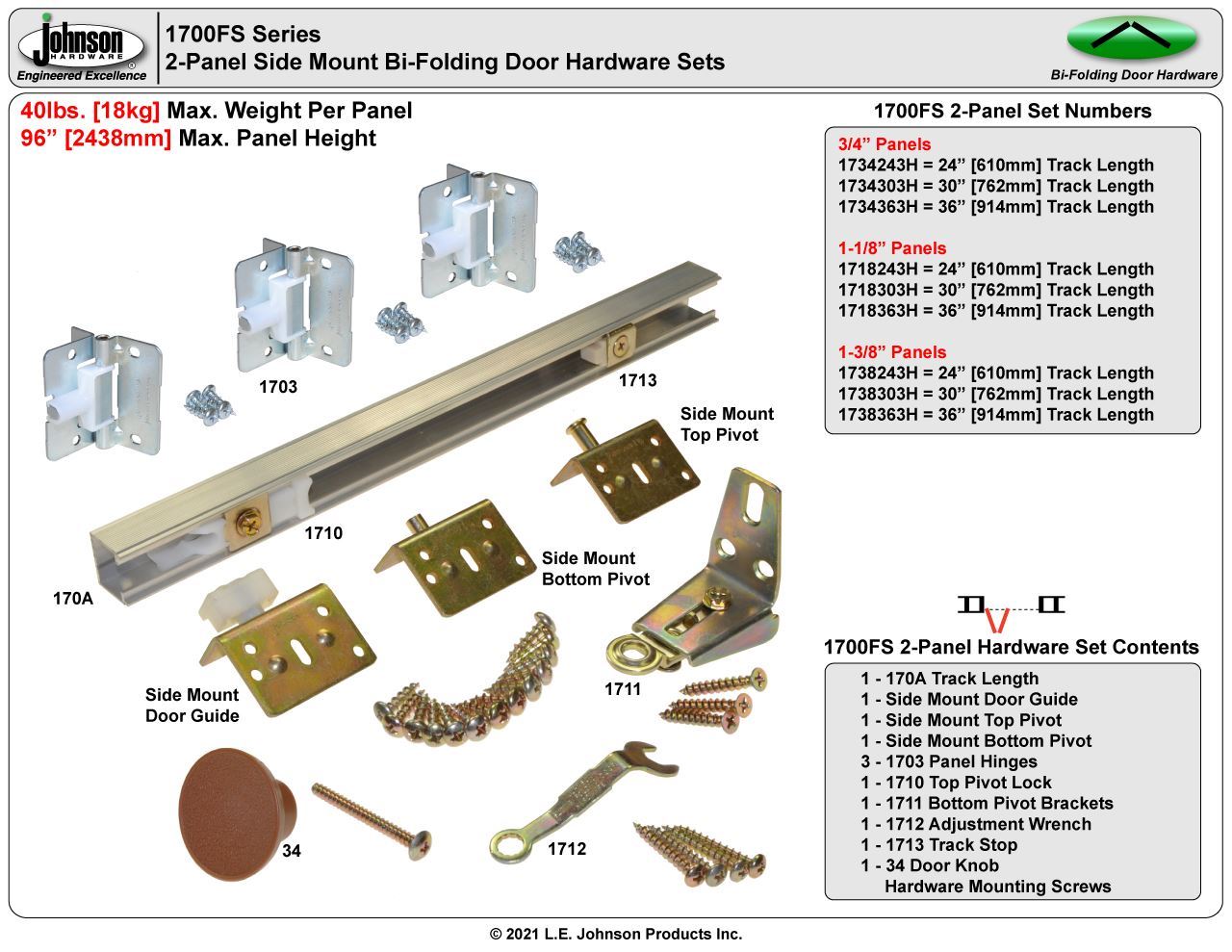

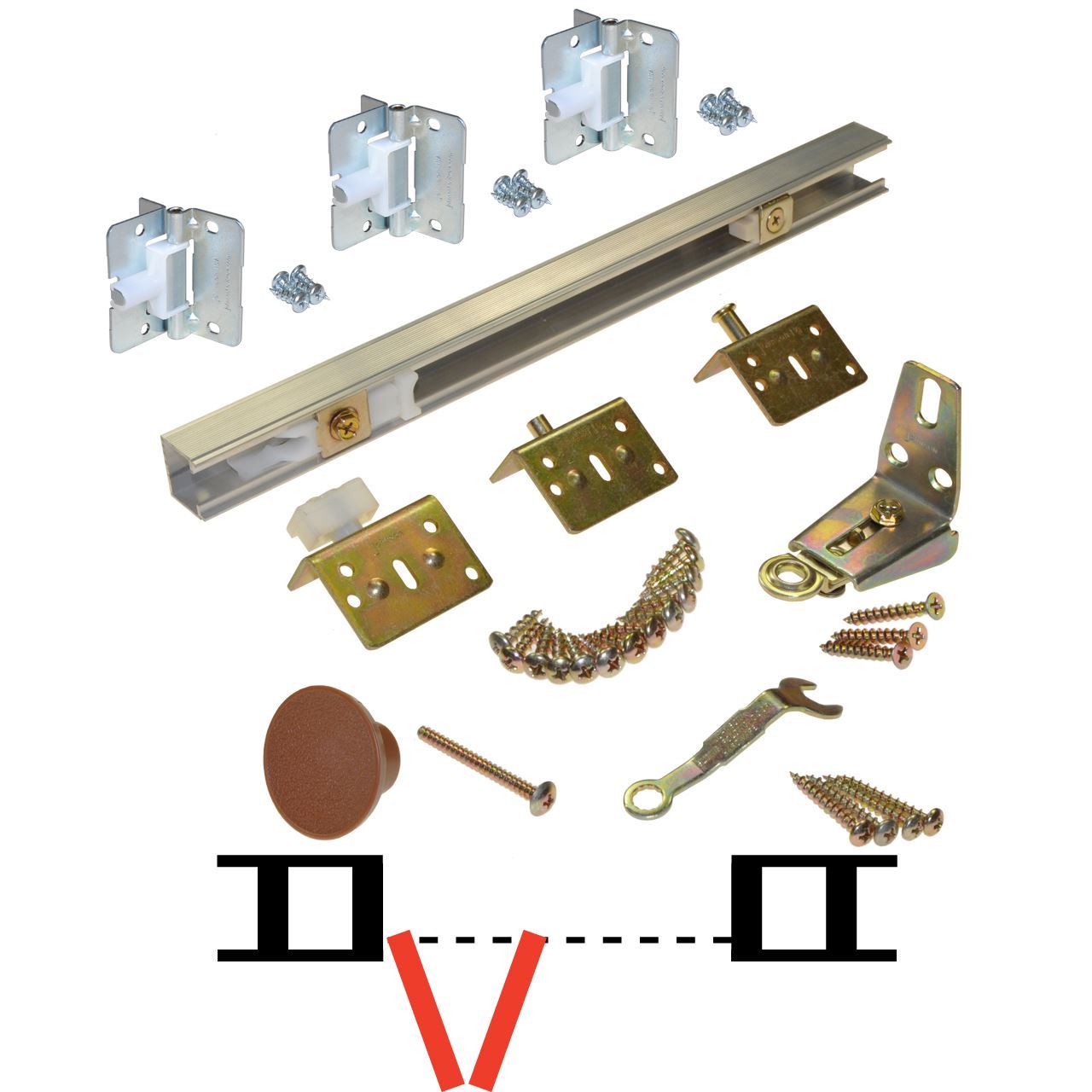

1734303H 1700FS 2-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 30" 2/6 [762mm] Track Length

$31.33
  • 40lbs [18kg] Max Weight per Panel

  • 30" 2/6 [762mm] Track Length

  • 14-3/4" [375mm] x 2 Max Width per Panel

  • 96" 8/0 [2438mm] Max Panel Height

  • 3/4" [19mm] Panel Thickness
  • Mill Aluminum Track Type

  • Side Mount Hardware Attachment

  • Residential Grade Top Hung Bi-Fold Door Hardware

    • 1700FS Installation Instructions
    Manufacturer part number: 1734303H
    Products specifications
    Panel Thickness3/4" [19mm]
    Hardware Sets2-Panel
    Max. Panel Width15" x 2 (1' - 3" x 2) [381mm x 2]
    Track Length30" (2' - 6") [762mm]
    Panels2-Panels
    Products specifications
    Panel Thickness3/4" [19mm]
    Hardware Sets2-Panel
    Max. Panel Width15" x 2 (1' - 3" x 2) [381mm x 2]
    Track Length30" (2' - 6") [762mm]
    Panels2-Panels
