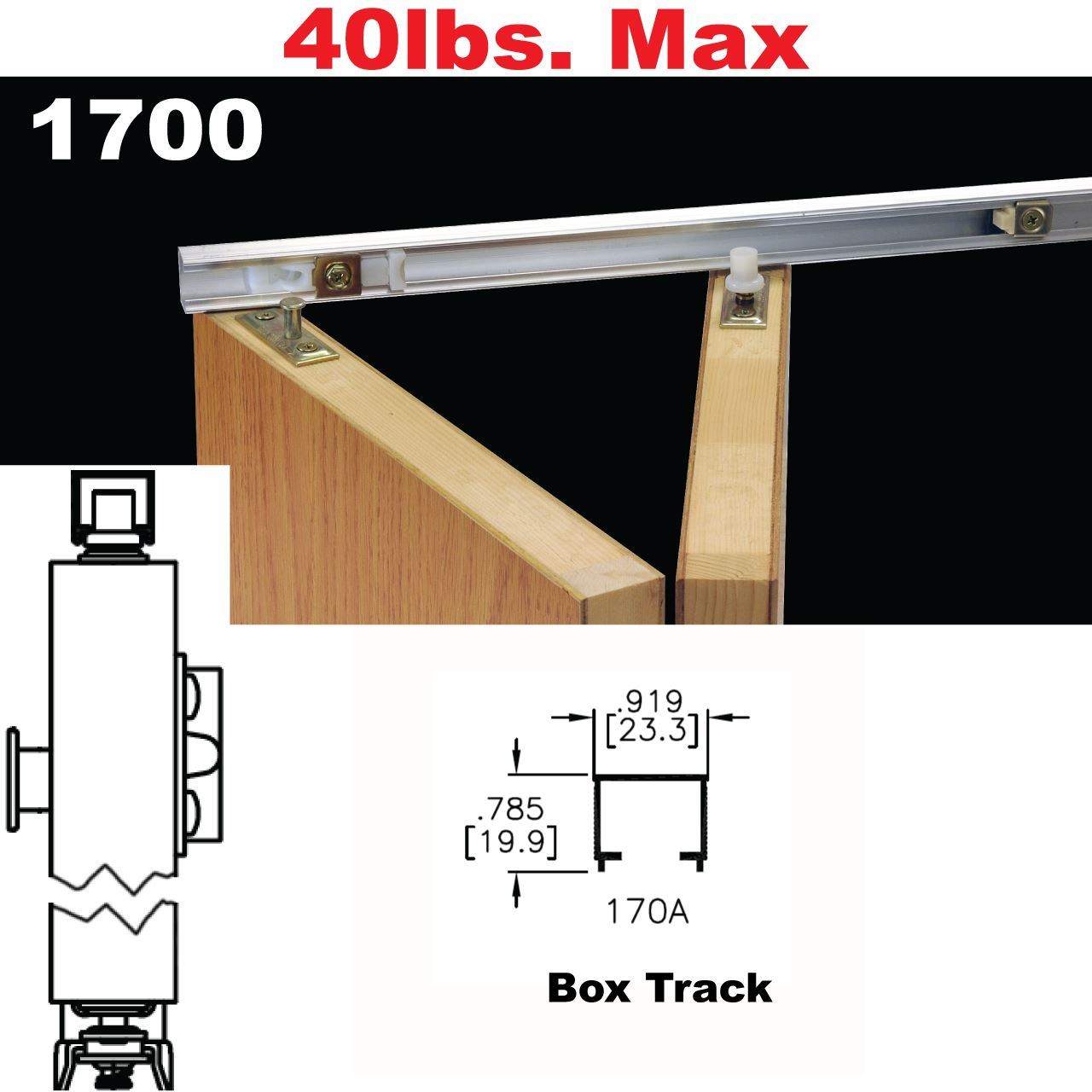

Picture of 1700 Bi-Fold Door Hardware

1700 Bi-Fold Door Hardware

  • 40lbs [18kg] Max Weight per Panel

  • 23-3/4" [603mm] Max Individual Panel Width

  • 96" [2438mm] Max Panel Height

  • 3/4" [19mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount or Side Mount Hardware Attachment Type

  • Residential Grade Top Hung Bi-Fold Door Hardware

    • 1700 Installation Instructions
    *
    *
    *
    *
    *
    *

    Products specifications
    Max. Weight Per Panel40 lbs. [18kg]
    ApplicationInterior Residential
    Panel Thickness3/4" [19mm] to 1-3/4" [44mm]
    Series Track1700
    Track ProfileBox Track
    Hanger TypeTop Mount
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeResidential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Panel40 lbs. [18kg]
    ApplicationInterior Residential
    Panel Thickness3/4" [19mm] to 1-3/4" [44mm]
    Series Track1700
    Track ProfileBox Track
    Hanger TypeTop Mount
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeResidential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
