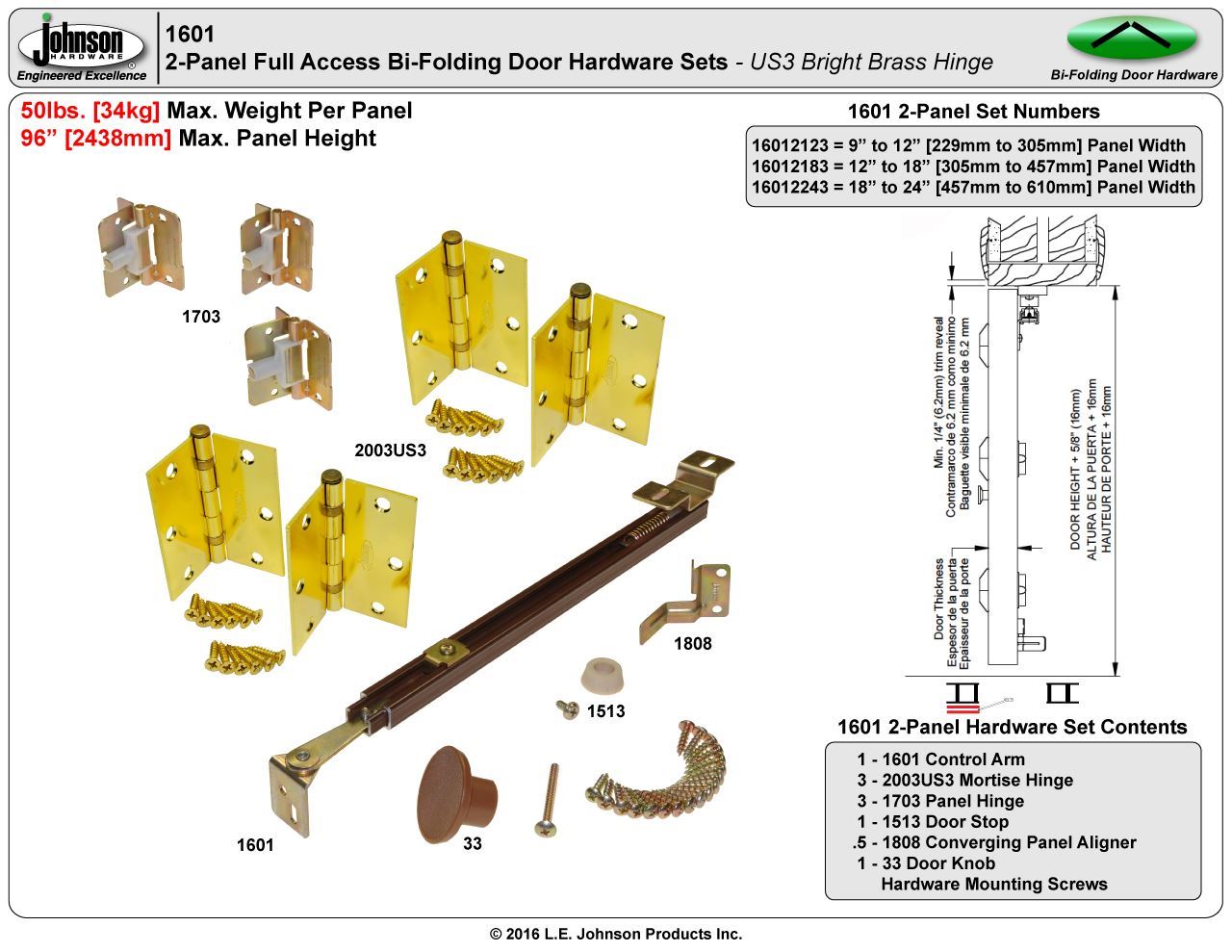

Picture of 1601HD 24" 2-Panel Mortise Hinge Hardware Set, US3

1601HD 24" 2-Panel Mortise Hinge Hardware Set, US3

$80.76
  • 50lbs. [22kg] Max. Panel Weight Each

  • 18" [457mm] to 24" [610mm] x 2 Panel Widths

  • 36" [914mm] to 48" [1219mm] Opening Widths

  • 1-3/8" [35mm] to 1-3/4" [44mm] Panel Thickness

  • US3 Bright Brass Hinge Finish

    • Manufacturer part number: 16012243
    Products specifications
    Hardware Sets2-Panel 50lb. Mortise Hinge
    Panels2-Panels
    Max. Weight Per Panel50 lbs. [23kg] (US3 Bright Brass Mortise Hinge)
    Opening Width36" to 48" (3' - 0" to 4' - 0") 914mm to 1219mm
    Panel Width18” to 24” x 2<br> (457mm to 610mm x 2)
    Mortise Hinge FinishUS3 Bright Brass
    Hinge TypeBall Bearing Mortise
    Hinge Size3-1/2 x 3-1/2"
    Products specifications
    Hardware Sets2-Panel 50lb. Mortise Hinge
    Panels2-Panels
    Max. Weight Per Panel50 lbs. [23kg] (US3 Bright Brass Mortise Hinge)
    Opening Width36" to 48" (3' - 0" to 4' - 0") 914mm to 1219mm
    Panel Width18” to 24” x 2<br> (457mm to 610mm x 2)
    Mortise Hinge FinishUS3 Bright Brass
    Hinge TypeBall Bearing Mortise
    Hinge Size3-1/2 x 3-1/2"
