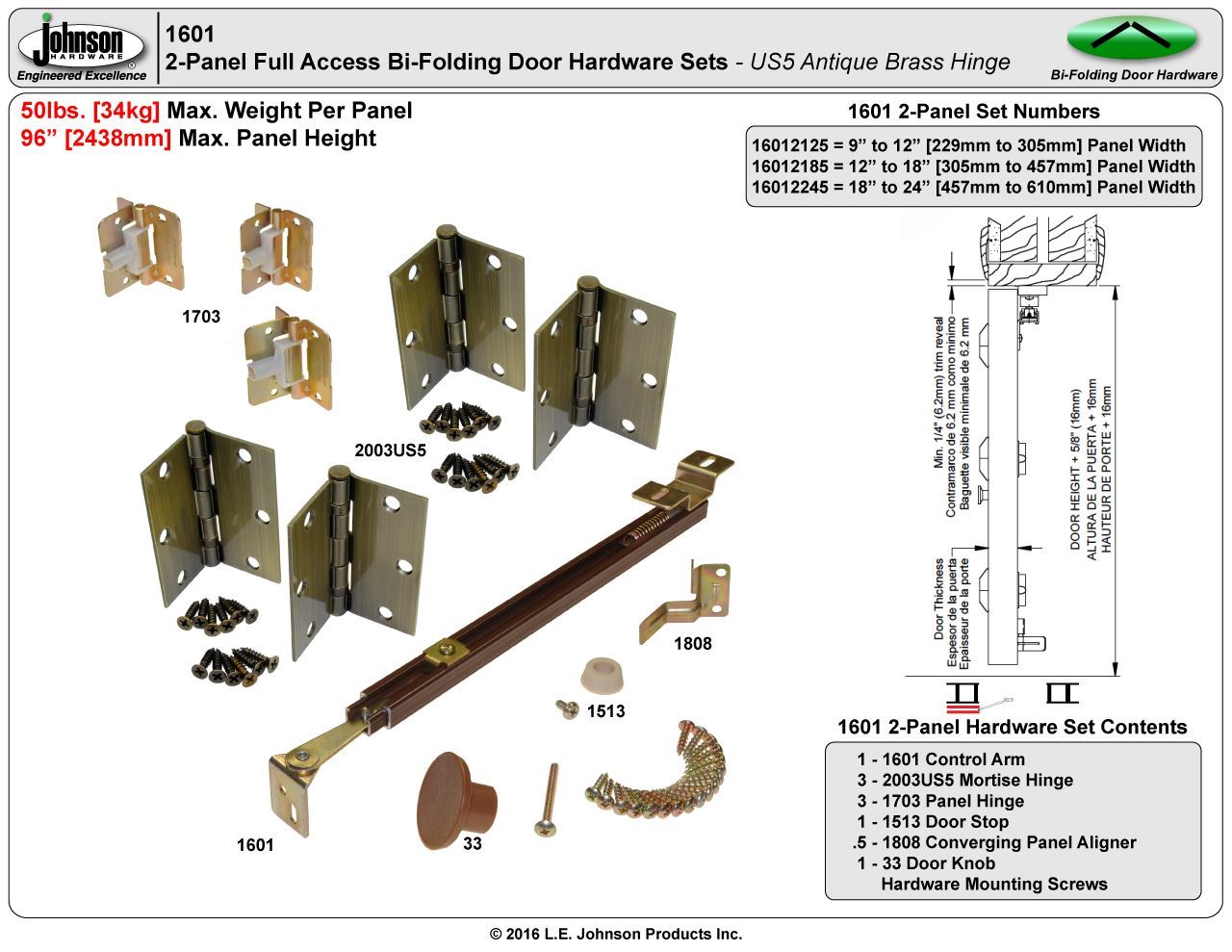

Picture of 1601HD 18" 2-Panel Mortise Hinge Hardware Set, US5

1601HD 18" 2-Panel Mortise Hinge Hardware Set, US5

$74.90
  • 50lbs. [22kg] Max. Panel Weight Each

  • 12" [305mm] to 18" [457mm] x 2 Panel Widths

  • 24" [610mm] to 36" [914mm] Opening Widths

  • 1-3/8" [35mm] to 1-3/4" [44mm] Panel Thickness

  • US5 Antique Brass Hinge Finish

    • Manufacturer part number: 16012185
    Products specifications
    Hardware Sets2-Panel 50lb. Mortise Hinge
    Panels2-Panels
    Max. Weight Per Panel50 lbs. [23kg] (US5 Antique Brass Mortise Hinge)
    Opening Width24" to 36" (2' - 0" to 3' - 0") 610mm to 914mm
    Panel Width12” to 18” x 2<br> (305mm to 457mm x 2)
    Mortise Hinge FinishUS5 Antique Brass
    Hinge TypeBall Bearing Mortise
    Hinge Size3-1/2 x 3-1/2"
    Products specifications
    Hardware Sets2-Panel 50lb. Mortise Hinge
    Panels2-Panels
    Max. Weight Per Panel50 lbs. [23kg] (US5 Antique Brass Mortise Hinge)
    Opening Width24" to 36" (2' - 0" to 3' - 0") 610mm to 914mm
    Panel Width12” to 18” x 2<br> (305mm to 457mm x 2)
    Mortise Hinge FinishUS5 Antique Brass
    Hinge TypeBall Bearing Mortise
    Hinge Size3-1/2 x 3-1/2"
