  • 1601HD 2-Panel Mortise Hinge Hardware Set, 9"-12" Panel, US3 Hinge

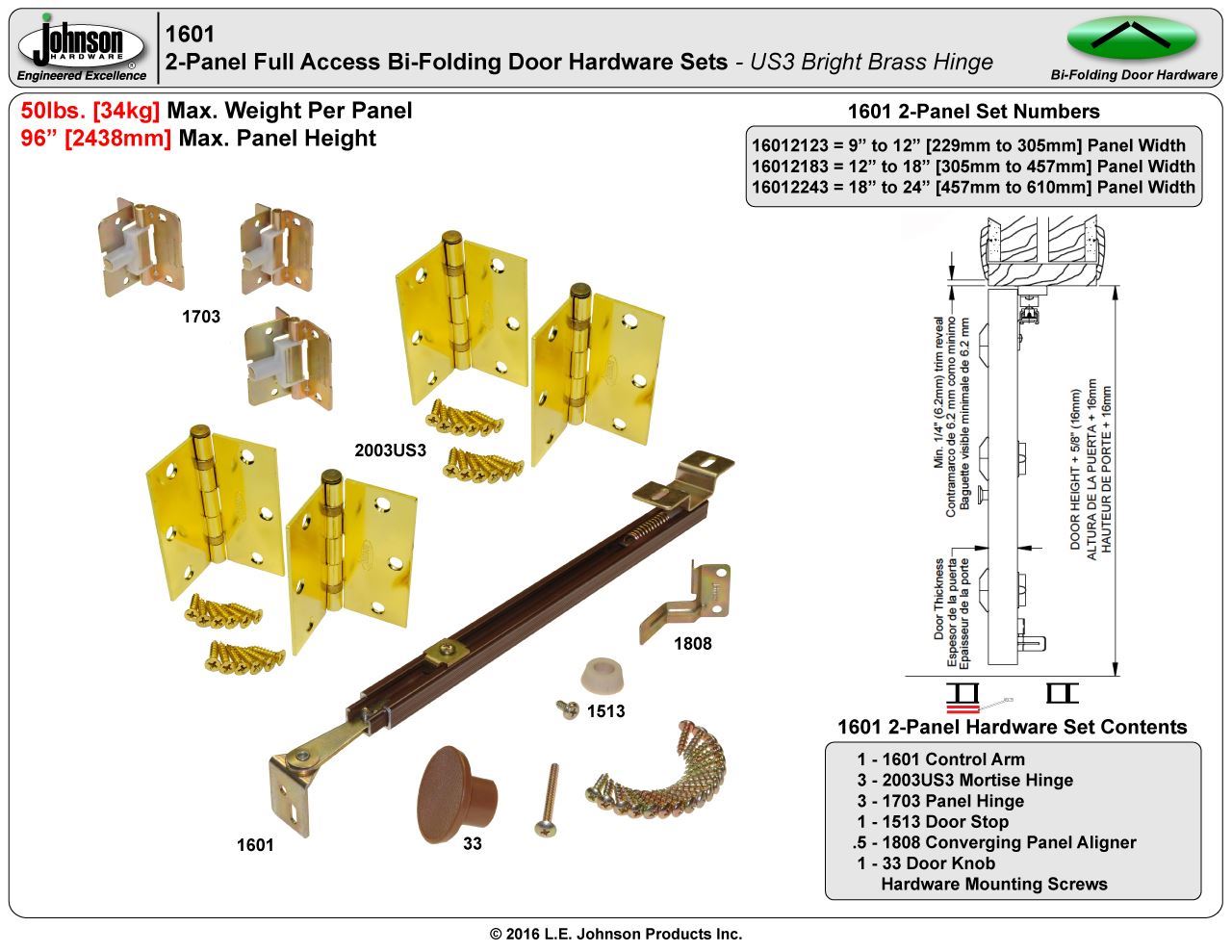

Picture of 1601HD 2-Panel Mortise Hinge Hardware Set, 9"-12" Panel, US3 Hinge

1601HD 2-Panel Mortise Hinge Hardware Set, 9"-12" Panel, US3 Hinge

$73.97
  • 8-3/4" [229mm] to 12" [305mm] 1/0 x 2 Individual Panel Width

  • 18" [457mm] 1/6 to 24" [610mm] 2/0 Opening Widths

  • 1-3/8" [35mm] to 1-3/4" [44mm] Panel Thickness

  • 50lbs. [22kg] Max. Weight per Panel

  • US3 Bright Brass Hinge Finish

    • Manufacturer part number: 16012123
    Products specifications
    Hardware Sets2-Panel 50lb. Mortise Hinge
    Panels2-Panels
    Max. Weight Per Panel50 lbs. [23kg] (US3 Bright Brass Mortise Hinge)
    Opening Width18" to 24" (1' - 6" to 2' - 0") 457mm to 610mm
    Panel Width8-3/4" to 12" x 2 <br>(229mm to 305mm x 2)
    Mortise Hinge FinishUS3 Bright Brass
    Hinge TypeBall Bearing Mortise
    Hinge Size3-1/2 x 3-1/2"
    Products specifications
    Hardware Sets2-Panel 50lb. Mortise Hinge
    Panels2-Panels
    Max. Weight Per Panel50 lbs. [23kg] (US3 Bright Brass Mortise Hinge)
    Opening Width18" to 24" (1' - 6" to 2' - 0") 457mm to 610mm
    Panel Width8-3/4" to 12" x 2 <br>(229mm to 305mm x 2)
    Mortise Hinge FinishUS3 Bright Brass
    Hinge TypeBall Bearing Mortise
    Hinge Size3-1/2 x 3-1/2"
