  • 1601424P 1601 4-Panel Brown Non-Mortise Hinge Hardware Set, 18" [457mm] to 24" [610mm] Panel

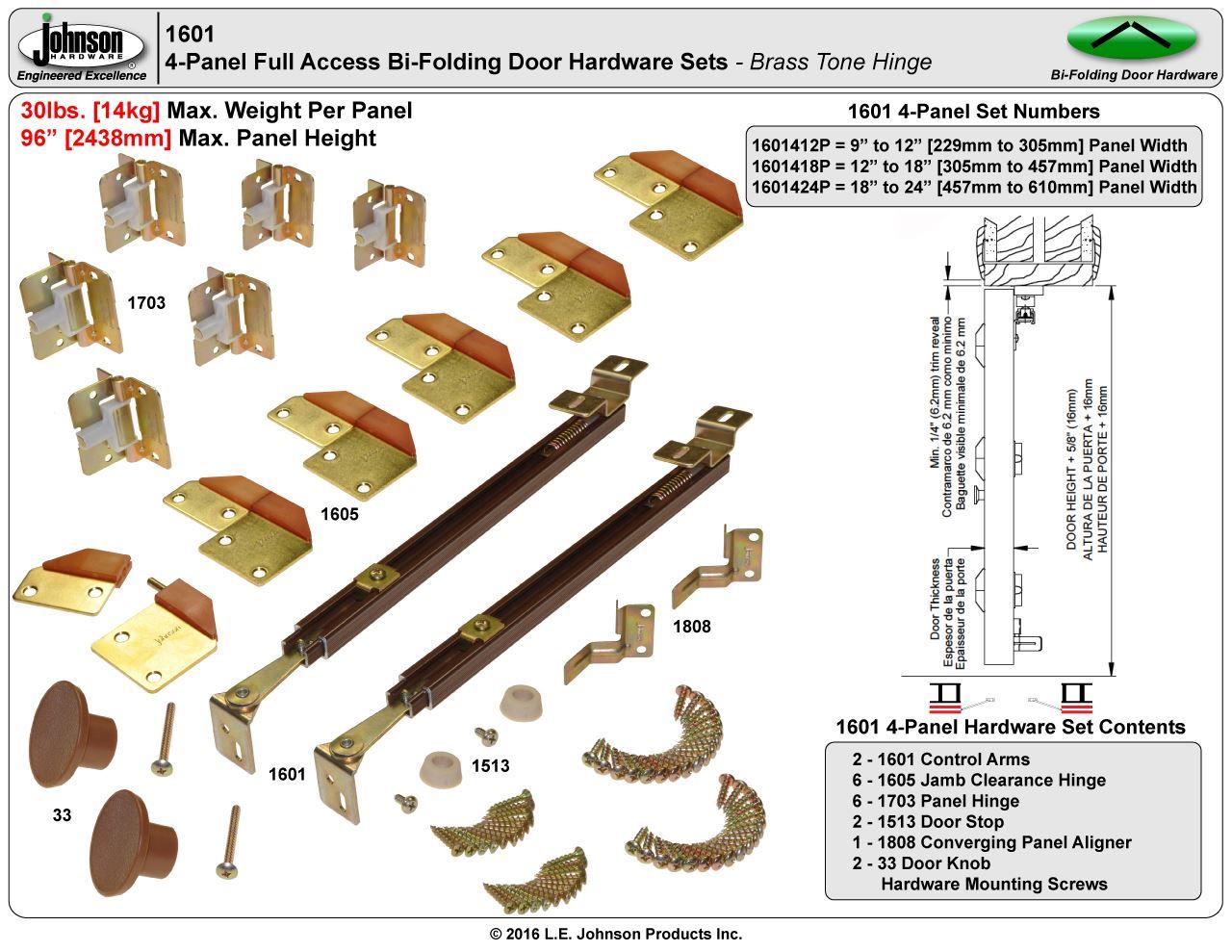

Picture of 1601424P 1601 4-Panel Brown Non-Mortise Hinge Hardware Set, 18" [457mm] to 24" [610mm] Panel

1601424P 1601 4-Panel Brown Non-Mortise Hinge Hardware Set, 18" [457mm] to 24" [610mm] Panel

$115.77
  • 18" [457mm] to 24" [610mm] x 4 Individual Panel Width

  • 1-1/8" [29mm] to 1-3/4" [44mm] Panel Thickness

  • 30lbs. [14kg] Max. Weight per Panel

  • Brass Tone/Brown Hinge Finish

    • 1601 Installation Instructions

    Manufacturer part number: 1601424P
    Products specifications
    Hardware Sets4-Panel 30lb. Non-Mortise Hinge
    Panels4-Panels
    Max. Weight Per Panel30 lbs. [14kg] (Brass Tone Non-Mortise Hinge)
    Opening Width72" to 96" (6' - 0" to 8' - 0") 1829mm to 2438mm
    Panel Width18” to 24” x 4<br> (457mm to 610mm x 4)
    Products specifications
    Hardware Sets4-Panel 30lb. Non-Mortise Hinge
    Panels4-Panels
    Max. Weight Per Panel30 lbs. [14kg] (Brass Tone Non-Mortise Hinge)
    Opening Width72" to 96" (6' - 0" to 8' - 0") 1829mm to 2438mm
    Panel Width18” to 24” x 4<br> (457mm to 610mm x 4)
