  • 1601418W 1601 4-Panel White Non-Mortise Hinge Hardware Set, 12" [305mm] to 18" [457mm] Panel

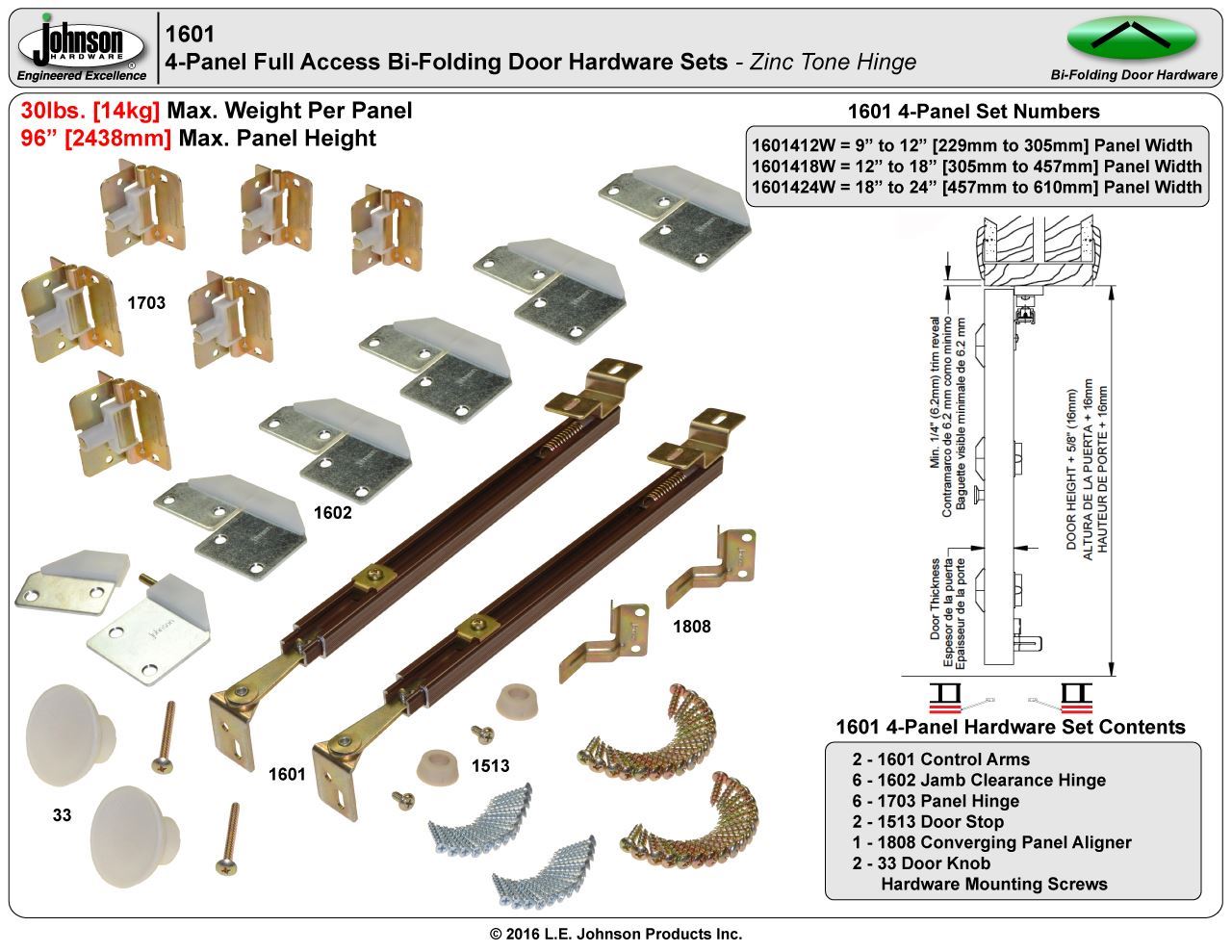

Picture of 1601418W 1601 4-Panel White Non-Mortise Hinge Hardware Set, 12" [305mm] to 18" [457mm] Panel

1601418W 1601 4-Panel White Non-Mortise Hinge Hardware Set, 12" [305mm] to 18" [457mm] Panel

$80.13
  • 12" [305mm] to 18" [457mm] x 4 Individual Panel Width

  • 1-1/8" [29mm] to 1-3/4" [44mm] Panel Thickness

  • 30lbs. [14kg] Max. Weight per Panel

  • Zinc/White Hinge Finish

    • 1601 Installation Instructions

    Manufacturer part number: 1601418W
    Products specifications
    Hardware Sets4-Panel 30lb. Non-Mortise Hinge
    Panels4-Panels
    Max. Weight Per Panel30 lbs. [14kg] (Zinc Tone Non-Mortise Hinge)
    Opening Width48" to 72" (4' - 0" to 6' - 0") 1219mm to 1829mm
    Panel Width12” to 18” x 4<br> (305mm to 457mm x 4)
    Products specifications
    Hardware Sets4-Panel 30lb. Non-Mortise Hinge
    Panels4-Panels
    Max. Weight Per Panel30 lbs. [14kg] (Zinc Tone Non-Mortise Hinge)
    Opening Width48" to 72" (4' - 0" to 6' - 0") 1219mm to 1829mm
    Panel Width12” to 18” x 4<br> (305mm to 457mm x 4)
