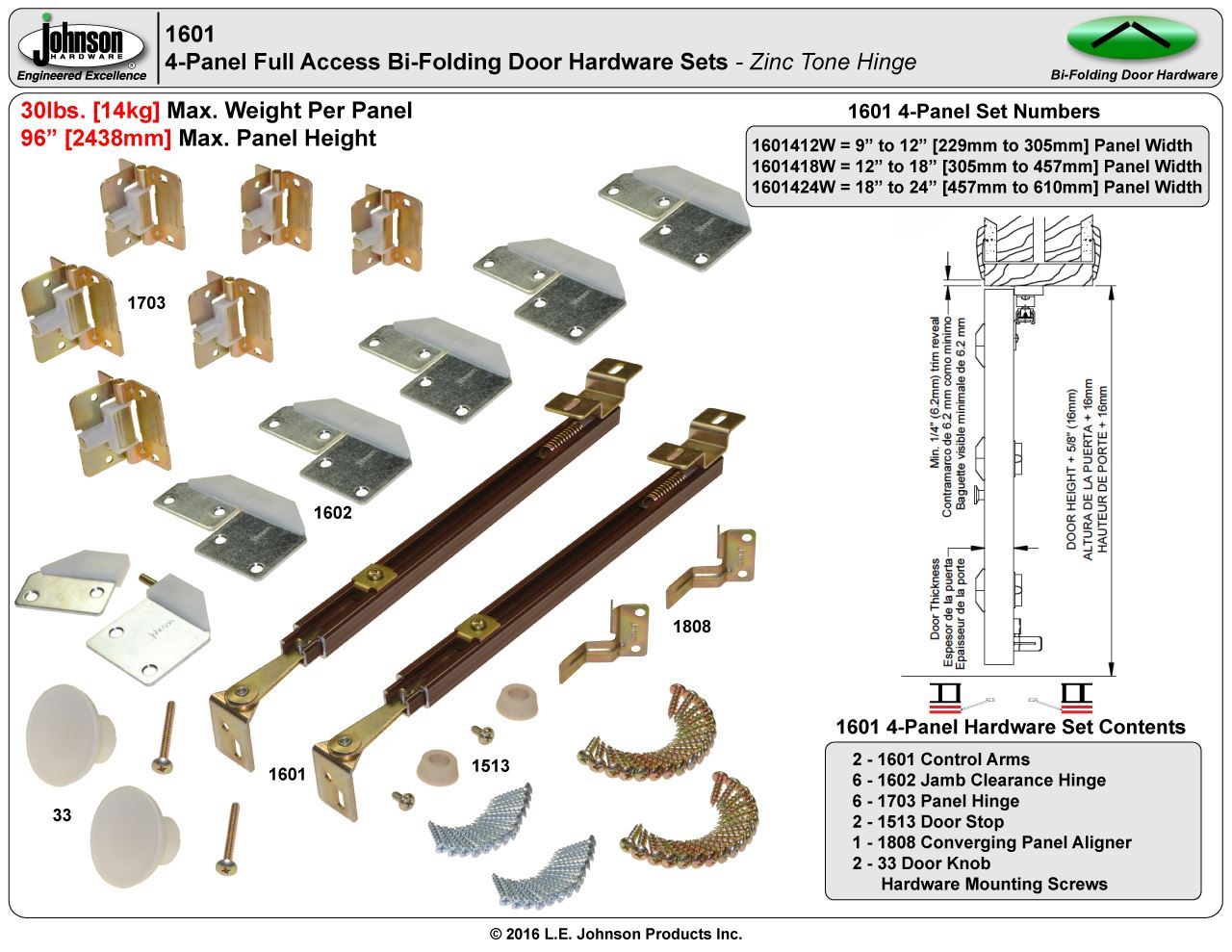

Picture of 1601 4-Panel Hardware Set, 9"-12" Panel, White Hinge

1601 4-Panel Hardware Set, 9"-12" Panel, White Hinge

$78.28
  • 8-3/4" [229mm] to 12" [305mm] 1/0 x 4 Individual Panel Width

  • 36" [914mm] 3/0 to 48" [1219mm] 4/0 Opening Width

  • 1-1/8" [29mm] to 1-3/4" [44mm] Panel Thickness

  • 30lbs. [14kg] Max. Weight per Panel

  • Zinc/White Jamb Hinge Finish

    • Manufacturer part number: 1601412W
    Products specifications
    Hardware Sets4-Panel 30lb. Non-Mortise Hinge
    Panels4-Panels
    Max. Weight Per Panel30 lbs. [14kg] (Zinc Tone Non-Mortise Hinge)
    Opening Width36" to 48" (3' - 0" to 4' - 0") 914mm to 1219mm
    Panel Width8-3/4" to 12" x 2 <br>(229mm to 305mm x 2), 8-3/4" to 12" x 4<br> (229mm to 305mm x 4)
    Products specifications
    Hardware Sets4-Panel 30lb. Non-Mortise Hinge
    Panels4-Panels
    Max. Weight Per Panel30 lbs. [14kg] (Zinc Tone Non-Mortise Hinge)
    Opening Width36" to 48" (3' - 0" to 4' - 0") 914mm to 1219mm
    Panel Width8-3/4" to 12" x 2 <br>(229mm to 305mm x 2), 8-3/4" to 12" x 4<br> (229mm to 305mm x 4)
