Products specifications

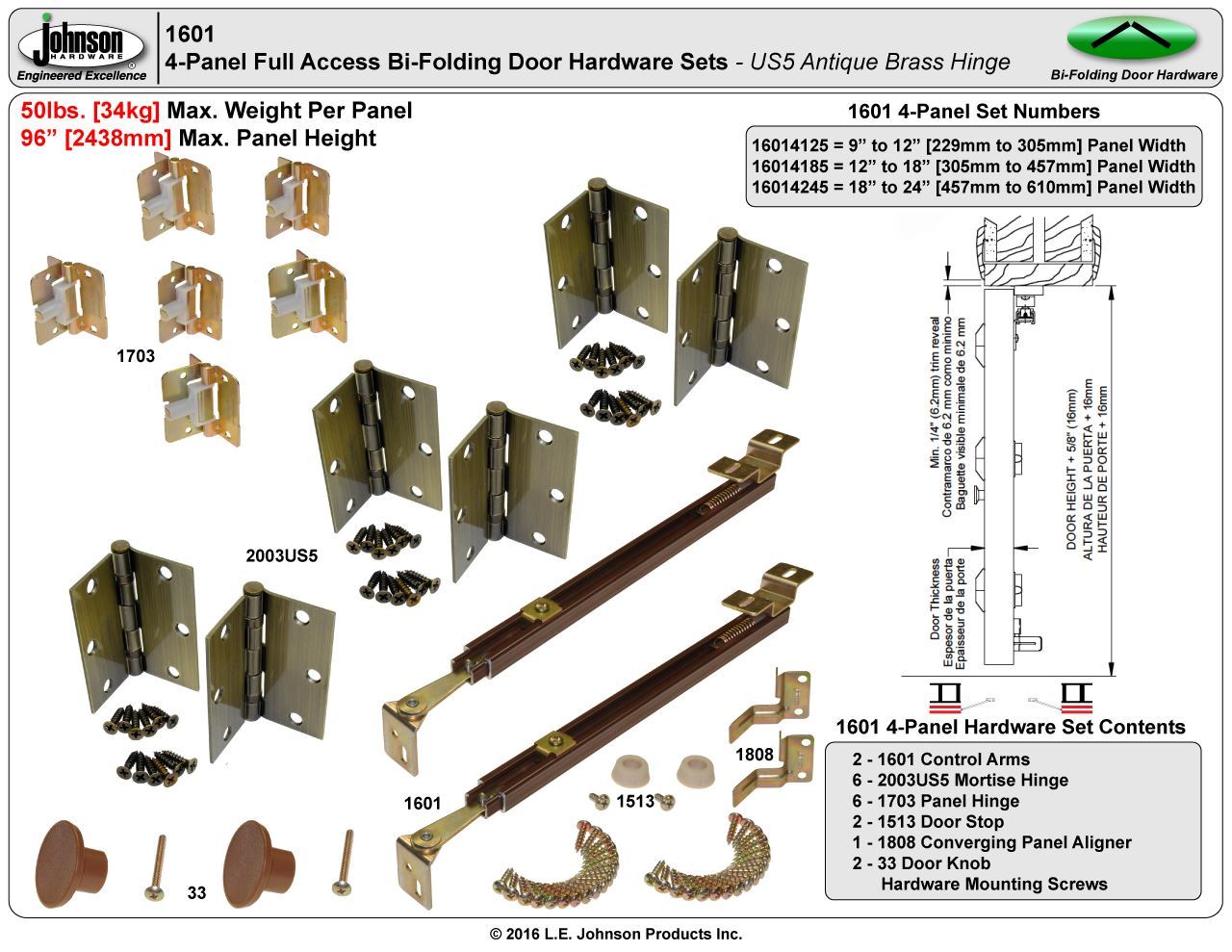

| Hardware Sets | 4-Panel 50lb. Mortise Hinge |
| Panels | 4-Panels |
| Max. Weight Per Panel | 50 lbs. [23kg] (US5 Antique Brass Mortise Hinge) |
| Opening Width | 36" to 48" (3' - 0" to 4' - 0") 914mm to 1219mm |
| Panel Width | 8-3/4" to 12" x 2 <br>(229mm to 305mm x 2), 8-3/4" to 12" x 4<br> (229mm to 305mm x 4) |
| Mortise Hinge Finish | US5 Antique Brass |
| Hinge Type | Ball Bearing Mortise |
| Hinge Size | 3-1/2 x 3-1/2" |
