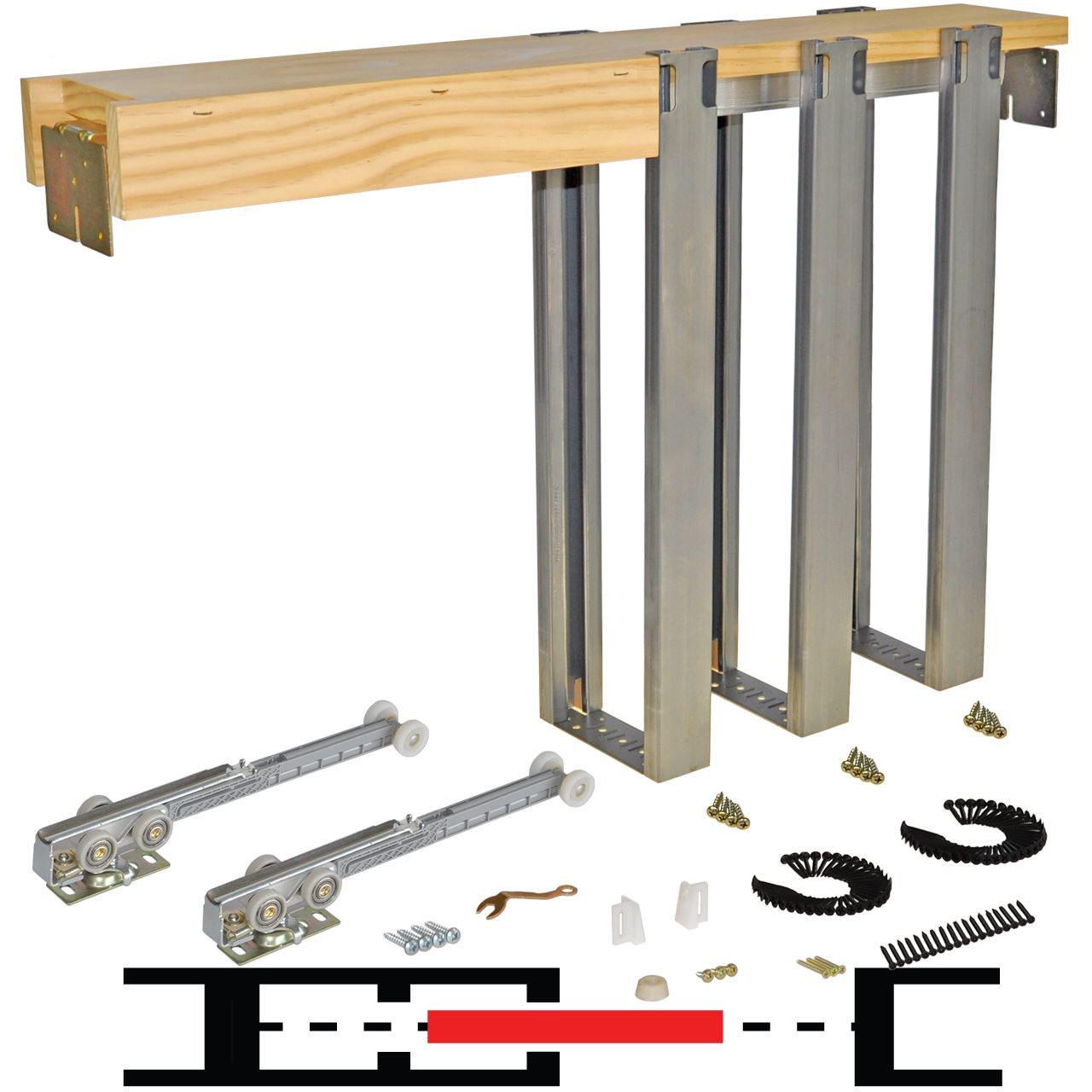

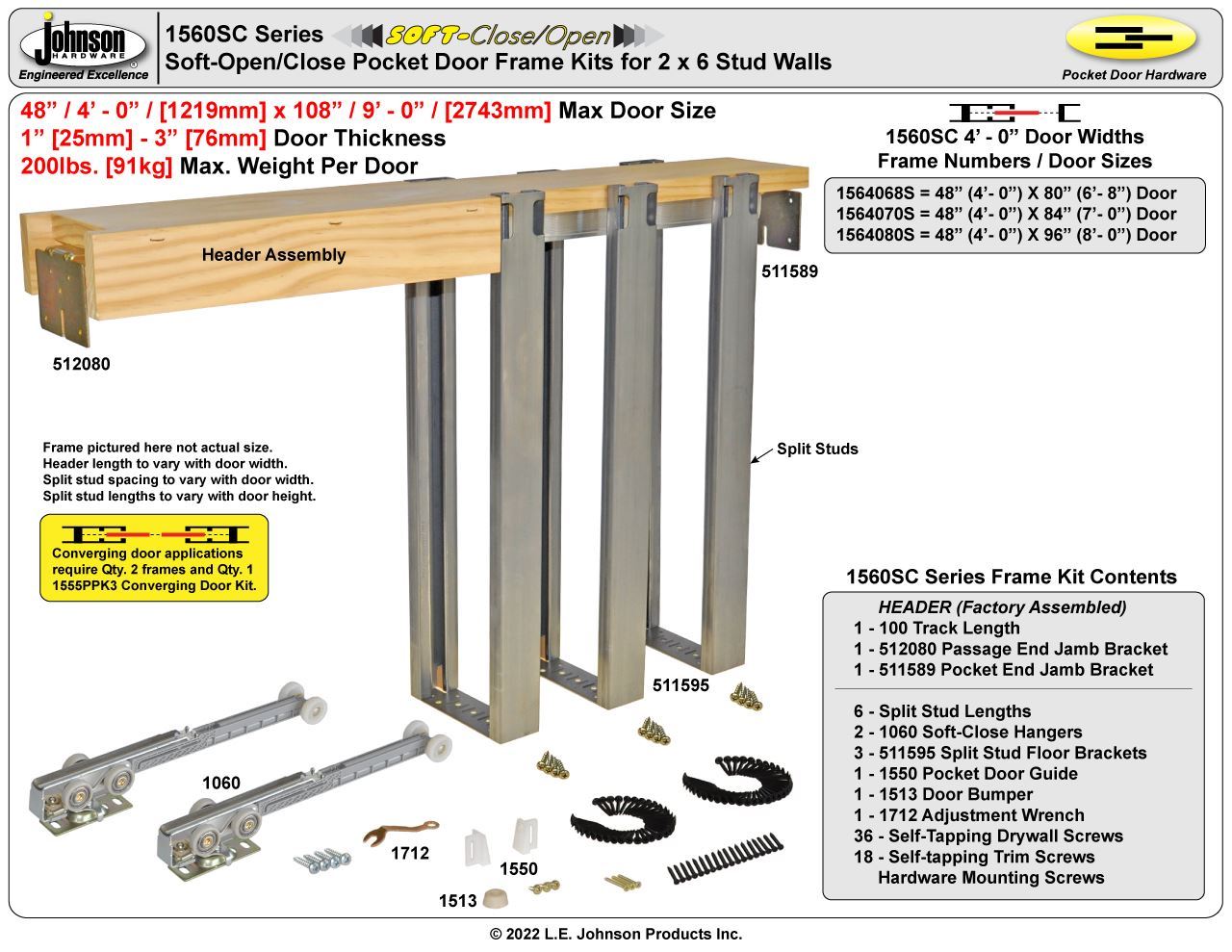

Picture of 1560SC 48" x 80" Soft-Close Pocket Door Frame
Picture of 1560SC 48" x 80" Soft-Close Pocket Door Frame Picture of 1560SC 48" x 80" Soft-Close Pocket Door Frame

1560SC 48" x 80" Soft-Close Pocket Door Frame

$441.41
  • BIDIRECTIONAL SOFT OPERATION

  • 165lbs [75kg] Max. Per Door

  • 48" 4/0 [1219mm] x 80" 6/8 [2032mm] Max. Door Size

  • 1" [25mm] to 3" [76mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

  • Soft-Close/Open Door Operation

    • Manufacturer part number: 1564068S
    Products specifications
    Max. Weight Per Door165lbs. [75kg]
    Max. Door Width48" (4'- 0") [1219mm]
    Max. Door Height80" (6'- 8") [2032mm]
    Door Thickness1" [25mm] (to) 3" [76mm]
    Min. Wall Structure Thickness5-1/2" (2 x 6) [140mm]
