  • 1560SC 30" x 84" Soft-Close Pocket Door Frame

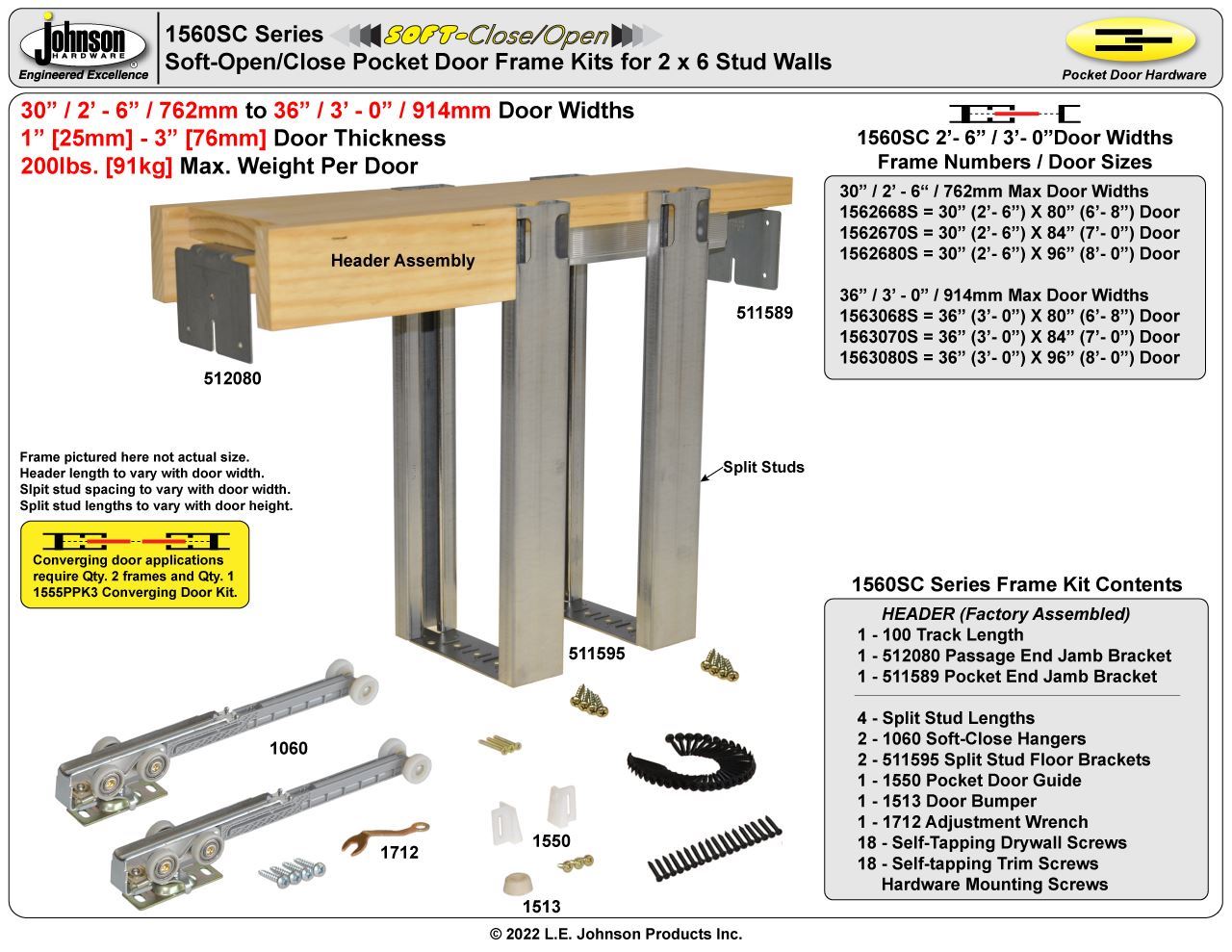

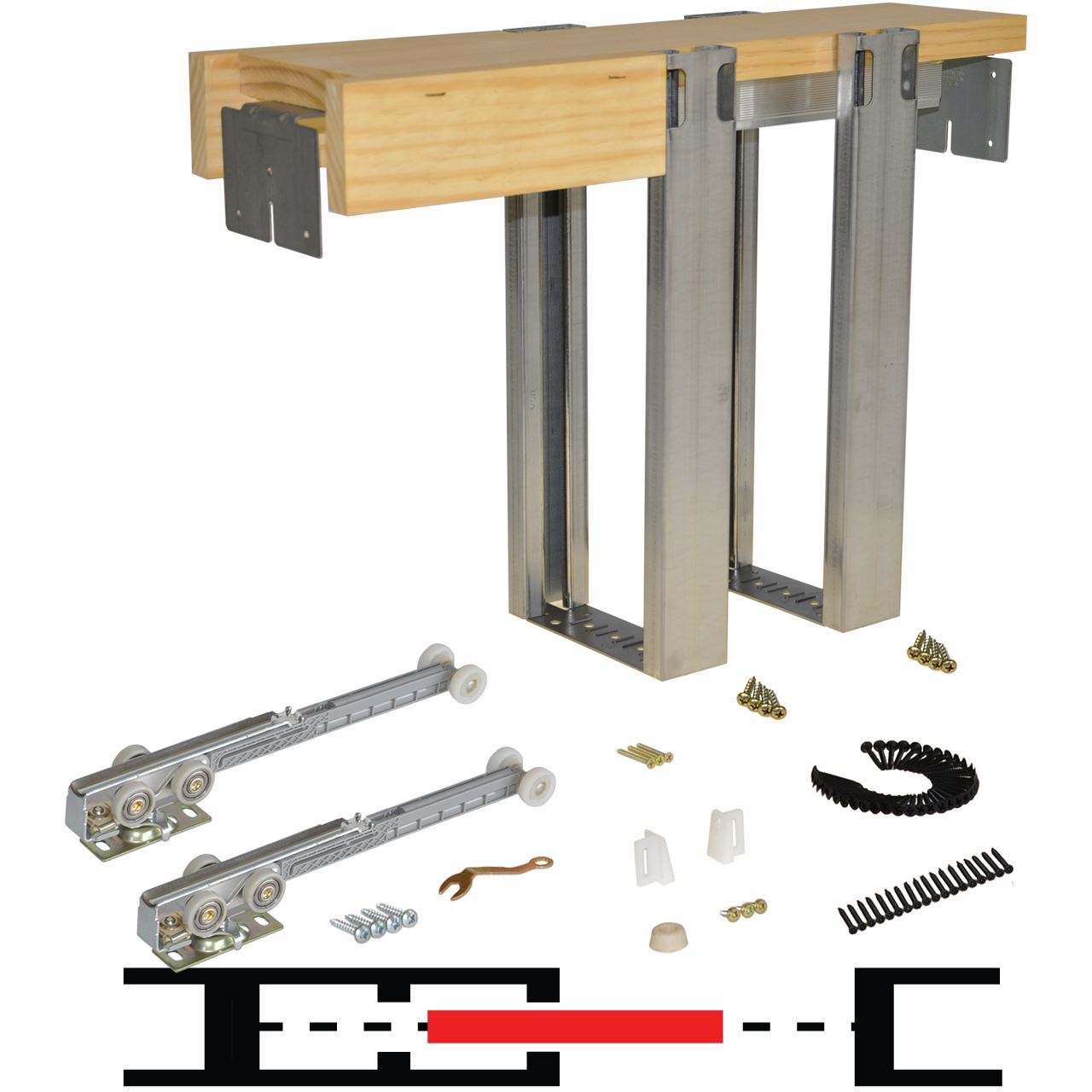

Picture of 1560SC 30" x 84" Soft-Close Pocket Door Frame
Picture of 1560SC 30" x 84" Soft-Close Pocket Door Frame Picture of 1560SC 30" x 84" Soft-Close Pocket Door Frame

1560SC 30" x 84" Soft-Close Pocket Door Frame

$338.75
  • BIDIRECTIONAL SOFT OPERATION Doors operate softly in both directions

  • 165lbs [75kg] Max. per door

  • 30" 2/6 [762mm] x 84" 7/0 [2134mm] Max. door size

  • 1" [25mm] to 3" [76mm] Door thickness

  • 5-1/2" [140mm] (2x6) Min. wall structure thickness
  • Commercial Grade Pocket Door Frame Kit

    • 28" 2/4 [711mm] min. door width for bidirectional soft operation

    20" 1/8 [508mm] min. door width for single direction soft operation
    Manufacturer part number: 1562670S
    Products specifications
    Max. Weight Per Door165lbs. [75kg]
    Max. Door Width30" (2'- 6") [762mm]
    Max. Door Height84" (7'-0") [2134mm]
    Door Thickness1" [25mm] (to) 3" [76mm]
    Min. Wall Structure Thickness5-1/2" (2 x 6) [140mm]
    Products specifications
    Max. Weight Per Door165lbs. [75kg]
    Max. Door Width30" (2'- 6") [762mm]
    Max. Door Height84" (7'-0") [2134mm]
    Door Thickness1" [25mm] (to) 3" [76mm]
    Min. Wall Structure Thickness5-1/2" (2 x 6) [140mm]
