1560SC 30" x 80" Soft-Close Pocket Door Frame

Name: 1560SC 30" x 80" Soft-Close Pocket Door Frame
SKU: 1562668S
Price: 315.51 USD
Availability: InStock

$315.51

BIDIRECTIONAL SOFT OPERATION Doors operate softly in both directions

165lbs [75kg] Max. per door

30" 2/6 [762mm] x 80" 6/8 [2032mm] Max. door size

1" [25mm] to 3" [76mm] Door thickness

5-1/2" [140mm] (2x6) Min. wall structure thickness

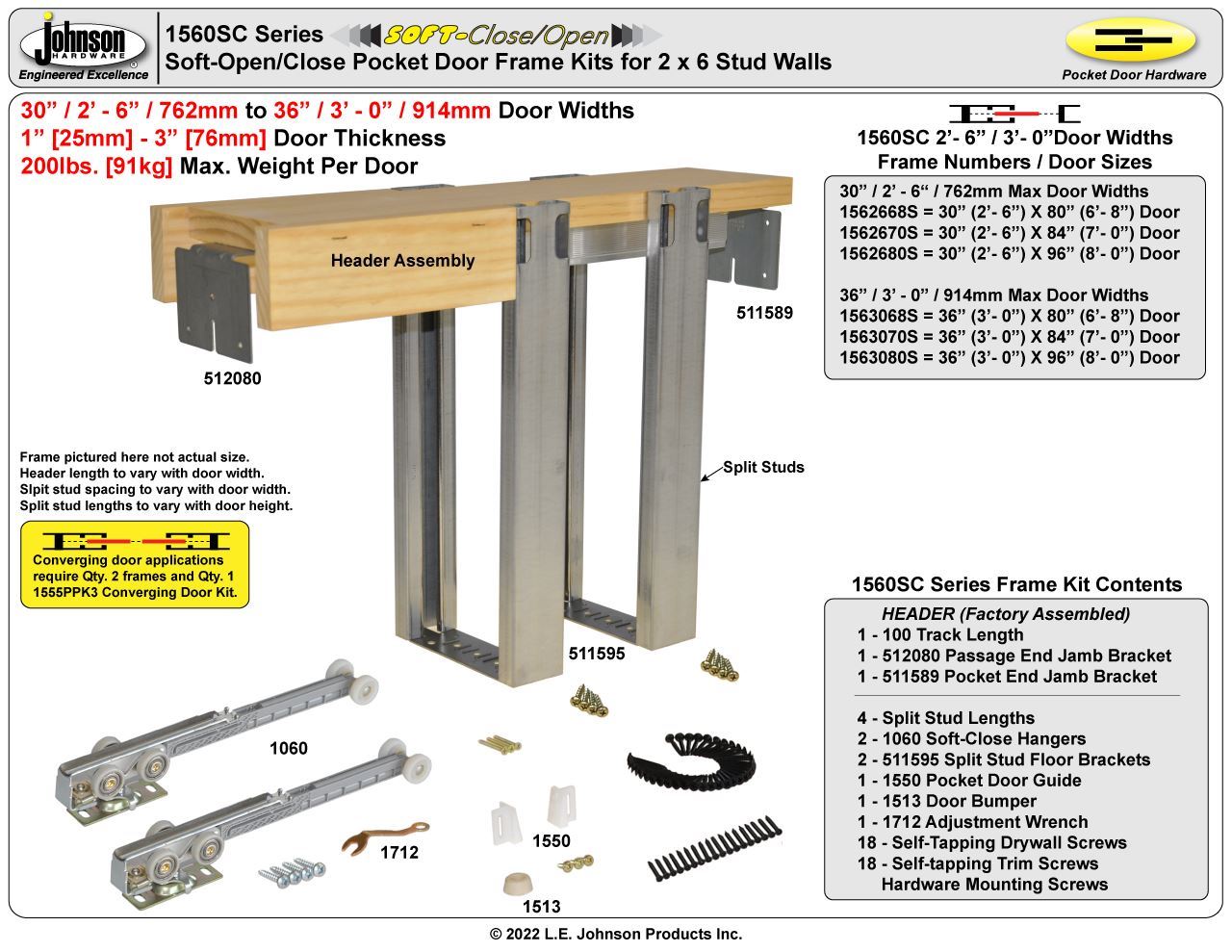

Commercial Grade Pocket Door Frame Kit

28" 2/4 [711mm] min. door width for bidirectional soft operation

20" 1/8 [508mm] min. door width for single direction soft operation

Manufacturer part number: 1562668S

Qty:

Products specifications

Max. Weight Per Door	165lbs. [75kg]
Max. Door Width	30" (2'- 6") [762mm]
Max. Door Height	80" (6'- 8") [2032mm]
Door Thickness	1" [25mm] (to) 3" [76mm]
Min. Wall Structure Thickness	5-1/2" (2 x 6) [140mm]
