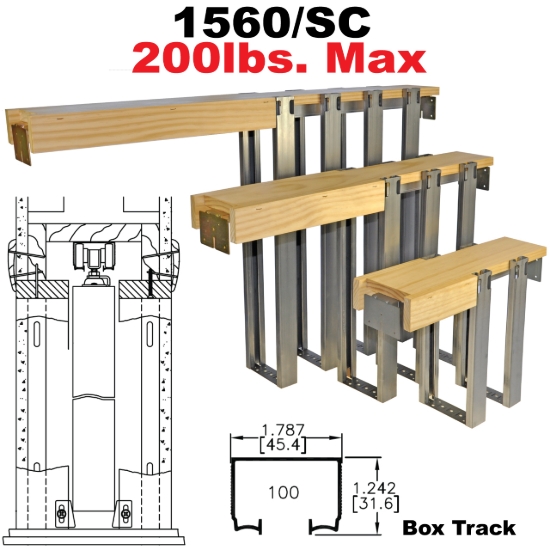

Picture of 1560 Series Pocket Door Frames

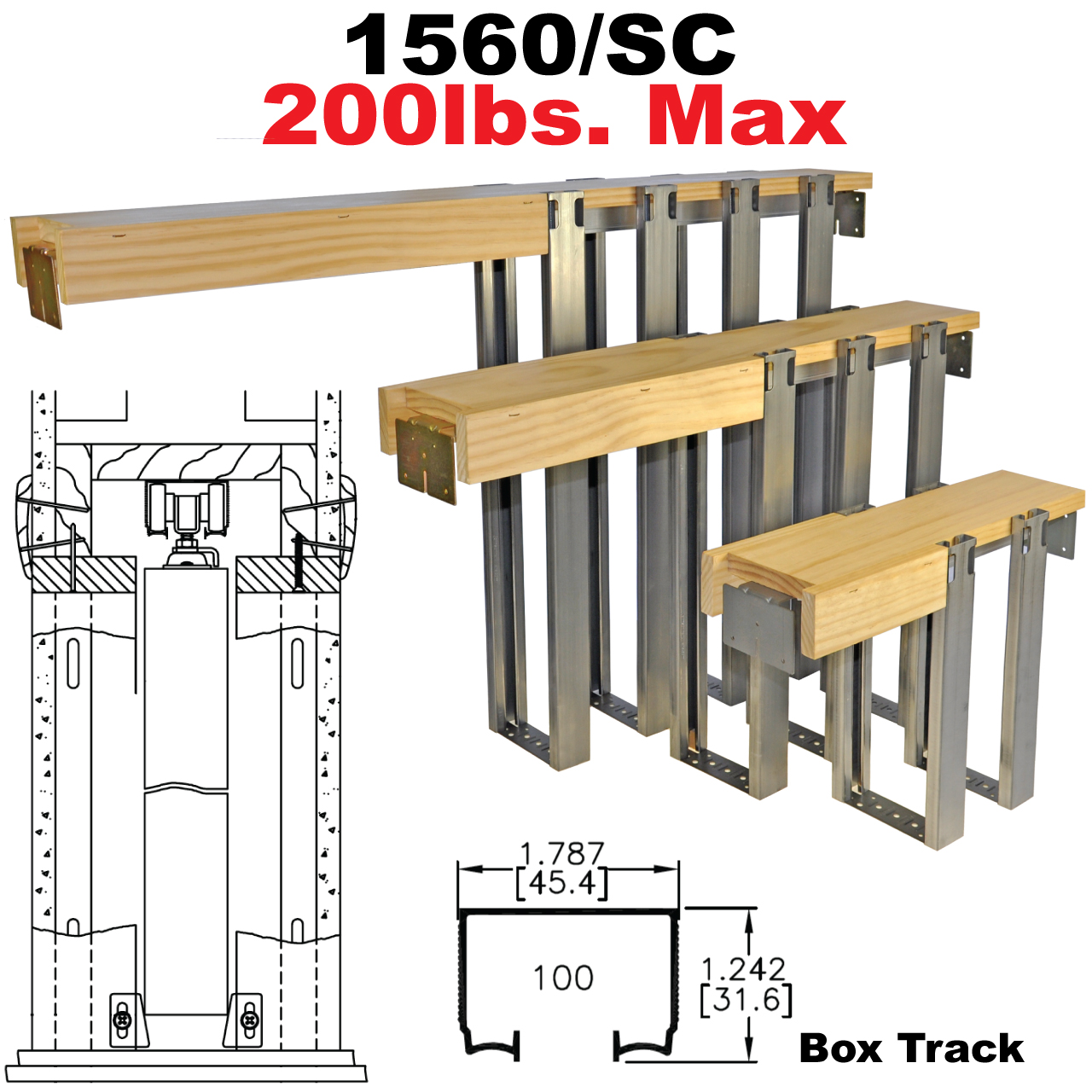

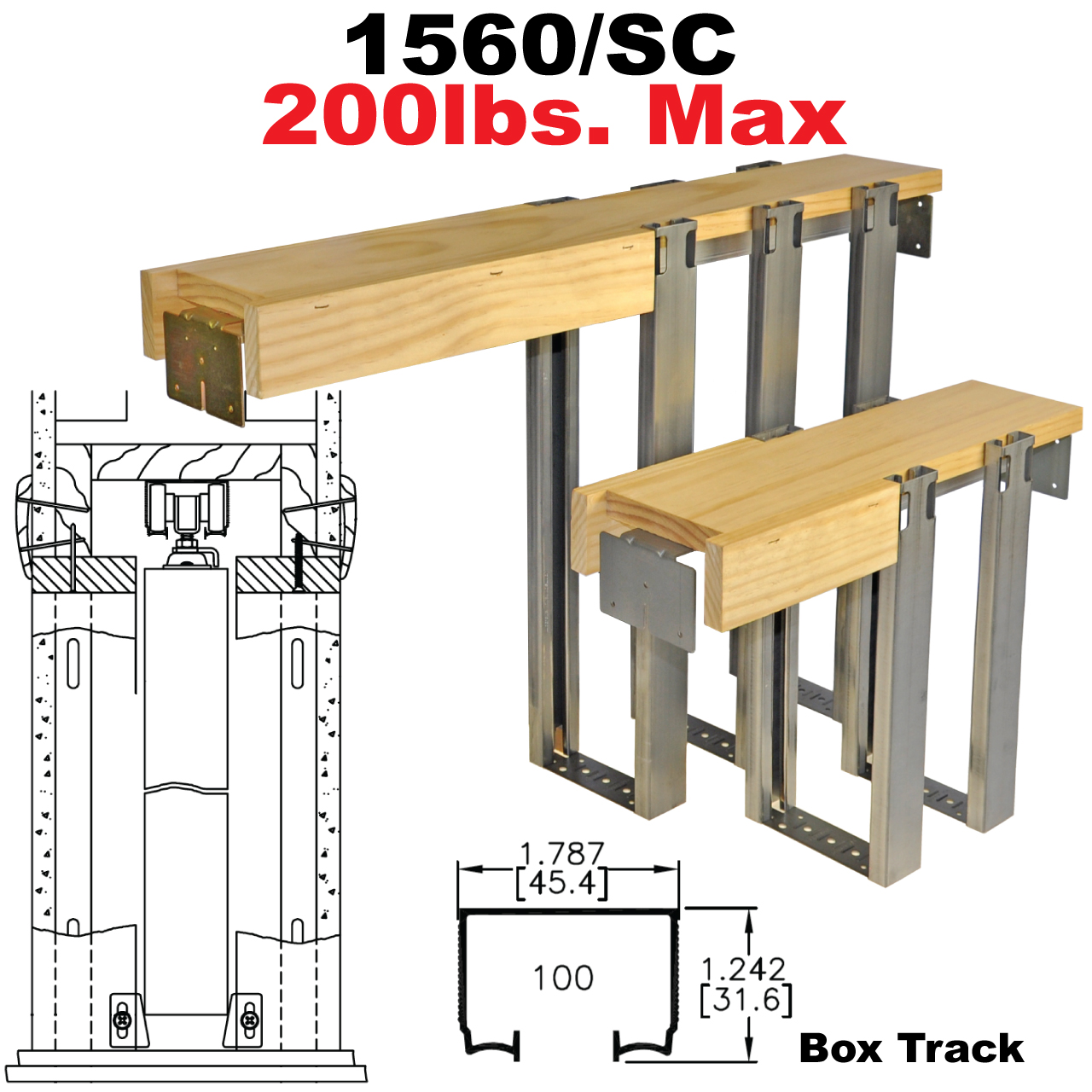

1560 Series Pocket Door Frames

  • 165lbs [75kg] Max. per door SC soft operation hanger

  • 200lbs [91kg] Max. per door standard operation hanger

  • 48" [1219mm] x 96" [2438mm] Max. Door Size

  • 1" [25mm] - 3" [76mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

    • 1560 Installation Instructions
    *
    *
    *

    Products specifications
    Max. Weight Per Door200lbs. [91kg]
    Max. Door Width60" (5'- 0") [1524mm]
    Max. Door Height96" (8'-0") [2438mm]
    Min. Wall Structure Thickness5-1/2" (2 x 6) [140mm]
    Series Track100
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeBall Bearing Wheel(200lbs Max.)
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Split Stud Construction18 Gauge Cold Rolled Galvanized Steel
    Frame Header MaterialSpruce, Pine or Fir (#3 or better)
    ApplicationInterior Residential/Commercial
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door200lbs. [91kg]
    Max. Door Width60" (5'- 0") [1524mm]
    Max. Door Height96" (8'-0") [2438mm]
    Min. Wall Structure Thickness5-1/2" (2 x 6) [140mm]
    Series Track100
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeBall Bearing Wheel(200lbs Max.)
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Split Stud Construction18 Gauge Cold Rolled Galvanized Steel
    Frame Header MaterialSpruce, Pine or Fir (#3 or better)
    ApplicationInterior Residential/Commercial
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
