Picture of 1555PPK3 CONVERGING DOOR KIT
Picture of 1555PPK3 CONVERGING DOOR KIT Picture of 1555PPK3 CONVERGING DOOR KIT Picture of 1555PPK3 CONVERGING DOOR KIT Picture of 1555PPK3 CONVERGING DOOR KIT Picture of 1555PPK3 CONVERGING DOOR KIT

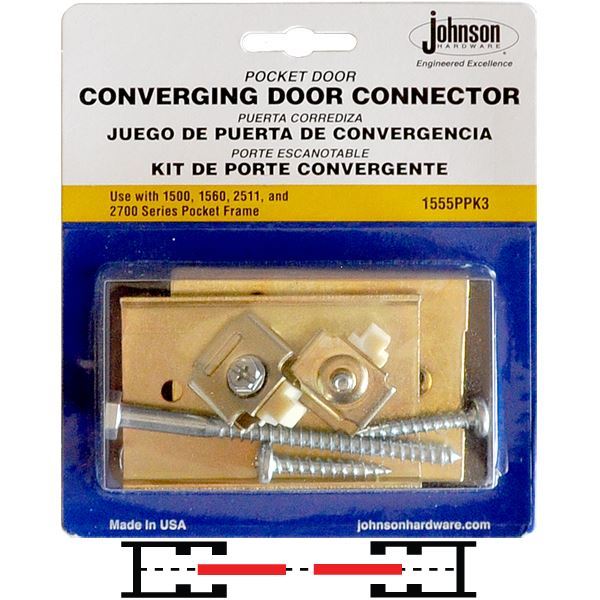

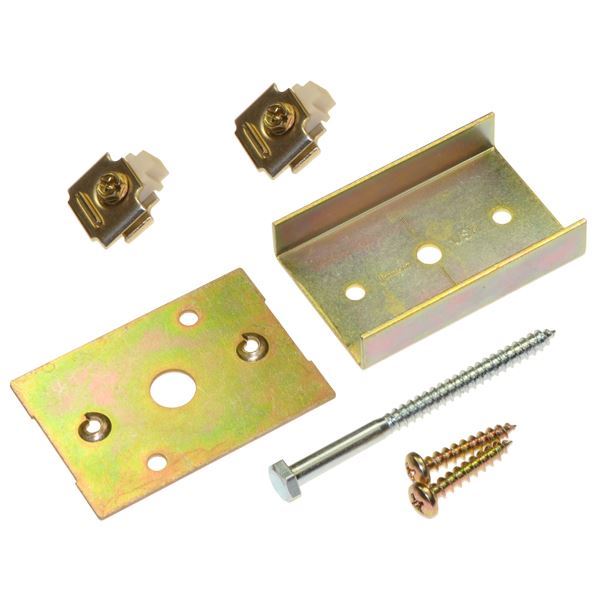

1555PPK3 CONVERGING DOOR KIT

$9.60
  • Frame Series Compatibility: 1500, 1500HD, 1500SC, 1560, 1560SC

    • The 1555PPK3 Converging Door Kit connects 2 pocket door frame headers together allowing for 2 door (converging) pocket door installations.

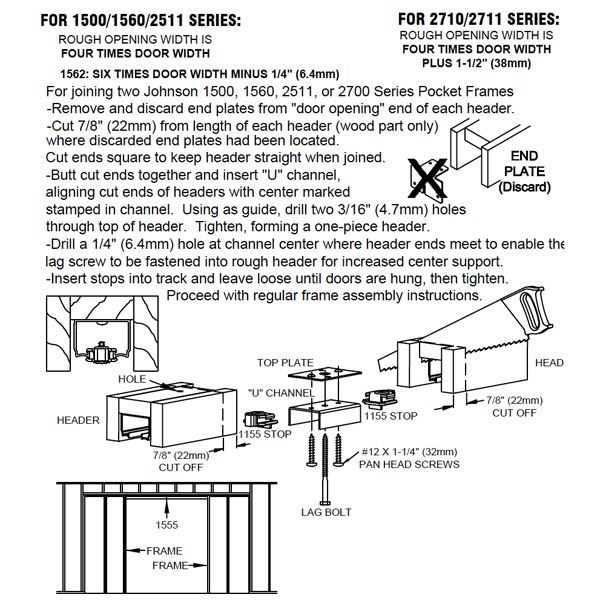

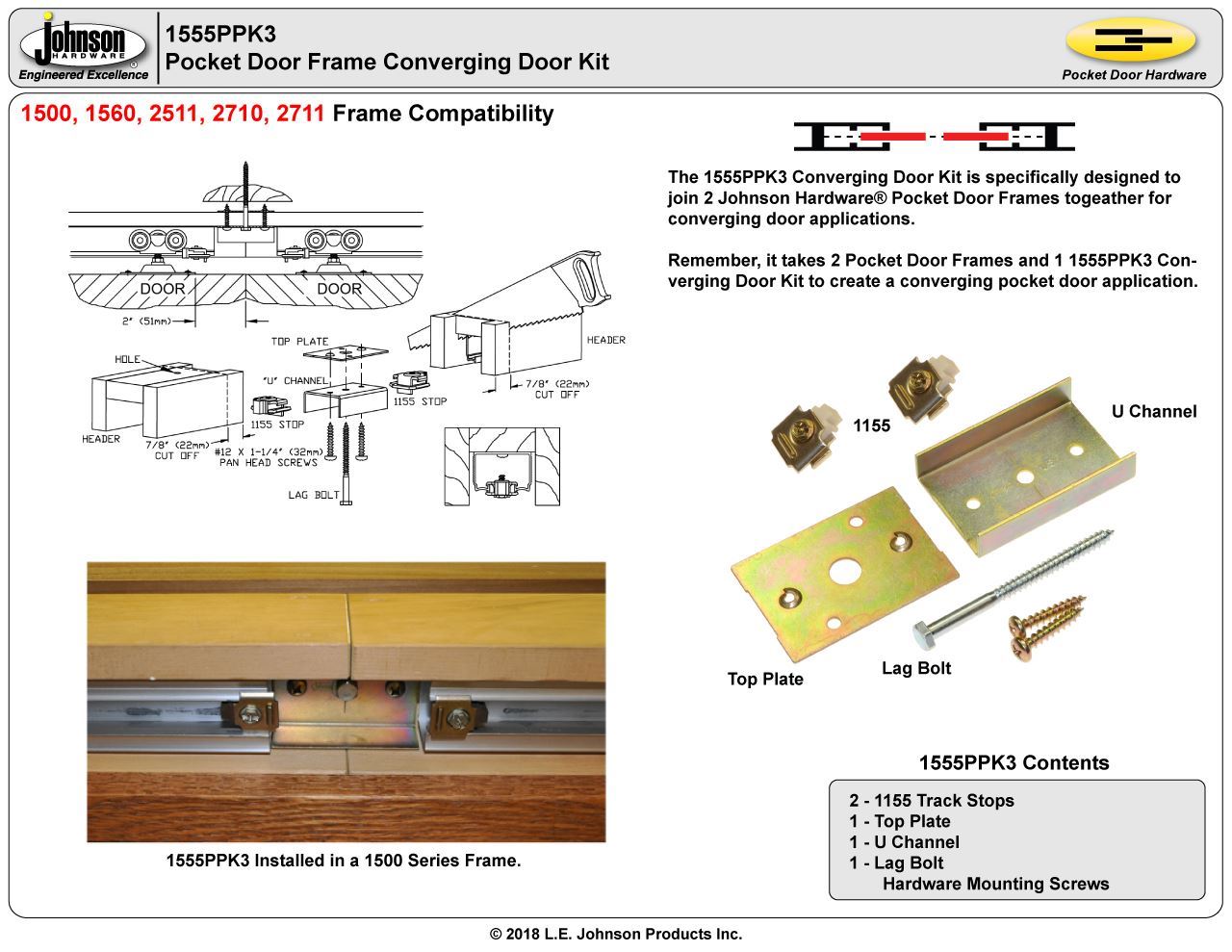

    1555PPK3 Converging Door Kit Installation Instructions
    Manufacturer part number: 1555PPK3
