Picture of 1515-PLY PDF PLYWOOD CLIP SET
Picture of 1515-PLY PDF PLYWOOD CLIP SET Picture of 1515-PLY PDF PLYWOOD CLIP SET

1515-PLY PDF PLYWOOD CLIP SET

$28.03

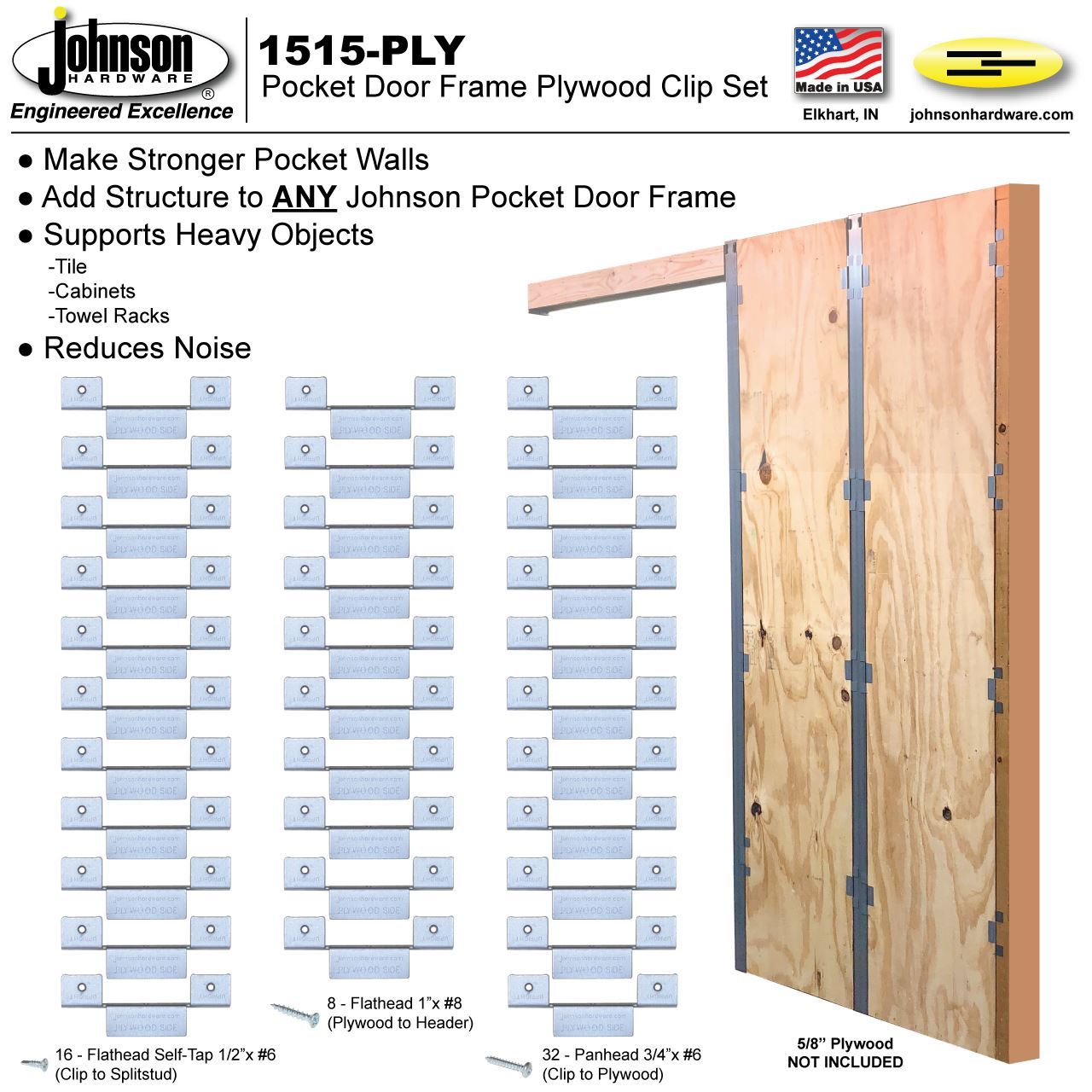

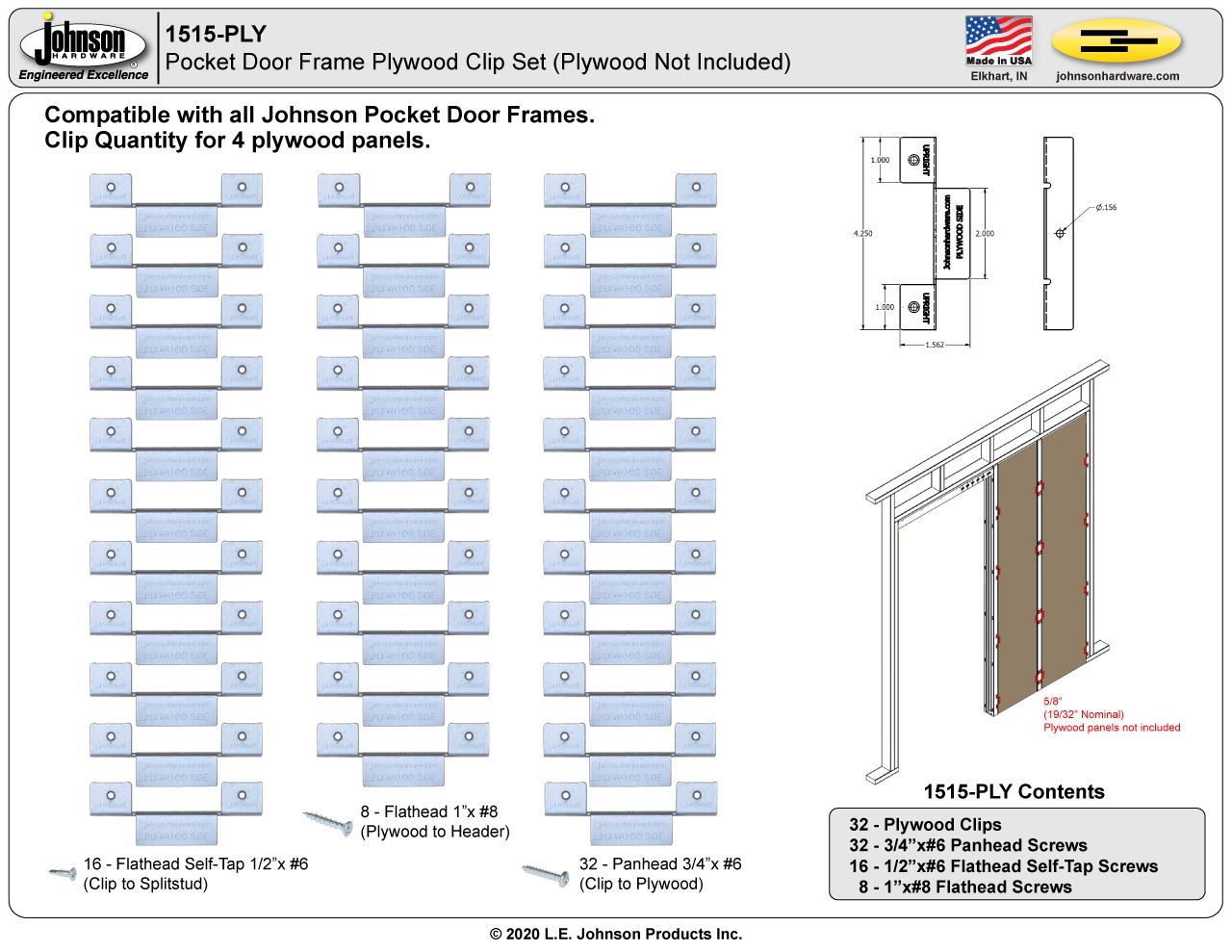

The 1515-PLY clips 5/8" (19/32" Nominal) plywood panels (not Included) into ANY Johnson Hardware Pocket Door Frame resulting in a stronger pocket wall.
  • Replaces ALL previous versions of Johnson Plywood clips

  • Compatible With ALL Johnson Pocket Door Frames

  • Add Strength and Rigidity to Pocket Door Walls

  • Solid Mounting Structure To Hang Objects or Tile

  • Requires 5/8" (19/32" Nominal) Plywood (NOT INCLUDED)


    • 1515-PLY Installation Instructions
    Manufacturer part number: 1515-PLY

    Related Products

    Picture of 322156 1515-PLY SCREW BAG

    322156 1515-PLY SCREW BAG

    $3.88
    1515-PLY Screw Bag Contents:
    16 - Flathead Self-Tap 1/2"x#6
    8 - Flathead 1"x#8
    32 - Panhead 3/4"x#6
    Picture of 2060/SC Series Pocket Door Frames

    2060/SC Series Pocket Door Frames

    From $355.63
  • 400lbs [181kg] Max. Per Door

  • 60" 5/0 [1524mm] x 120" 10/0 [3048mm] Max. Door Size

  • 1-1/8" [29mm] - 2-1/4" [57mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

    • 2060 Installation Instructions
    2066 Installation Instructions
    Picture of 1560/SC Series Pocket Door Frames

    1560/SC Series Pocket Door Frames

    From $207.39
  • 165lbs [75kg] Max. per door SC soft operation hanger

  • 200lbs [91kg] Max. per door standard operation hanger

  • 48" 4/0 [1219mm] x 96" 8/0 [2438mm] Max. Door Size

  • 1" [25mm] - 3" [76mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

    • 1560 Installation Instructions
    Picture of 1562 Series Bypass Pocket Door Frames

    1562 Series Bypass Pocket Door Frames

    From $306.23
  • 200lbs [91kg] Max. Weight Per Door

  • 18" [457mm], 24" [610mm], 30" [762mm], 36" [914mm] Door Widths

  • 96" [2438mm] Max Door Height

  • 1-3/8" [35mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

    • 1562 Installation Instructions
    Picture of 2000/SC Series Pocket Door Frames

    2000/SC Series Pocket Door Frames

    From $276.67
  • 400lbs [181kg] Max. per door standard operation

  • 335lbs [150kg] Max. per door soft operation

  • 60" 5/0 [1524mm] x 108" 9/0 [2743mm] Max. door size

  • 1-1/8" [29mm] - 1-3/4" [44mm] Door thickness

  • 3-1/2" [89mm] (2x4) Min. wall structure thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws included
  • Commercial Grade Pocket Door Frame Kit

    • 2000 Installation Instructions
    2066 Installation Instructions
    Picture of 1500HD/SC Series Pocket Door Frames

    1500HD/SC Series Pocket Door Frames

    From $156.85
  • 165lbs [75kg] Max. per door SC soft operation hanger

    • 1500SC Installation Instructions
  • 200lbs [91kg] Max. per door HD ball bearing wheel hanger

    • 1500HD Installation Instructions
  • 48" 4/0 [1219mm] x 96" 8/0 [2438mm] Max. Door Size

  • 1" [25mm] - 1-3/4 [44mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit
