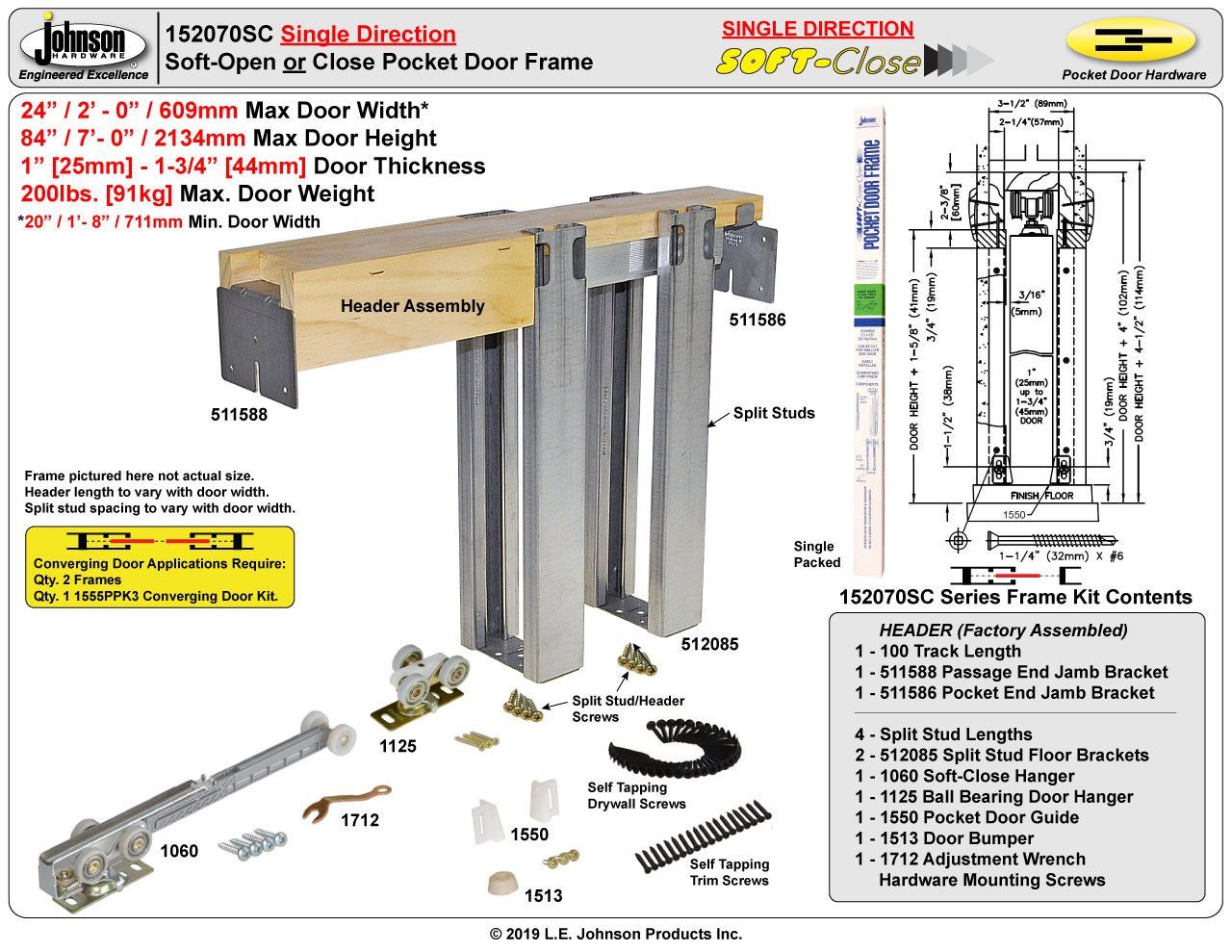

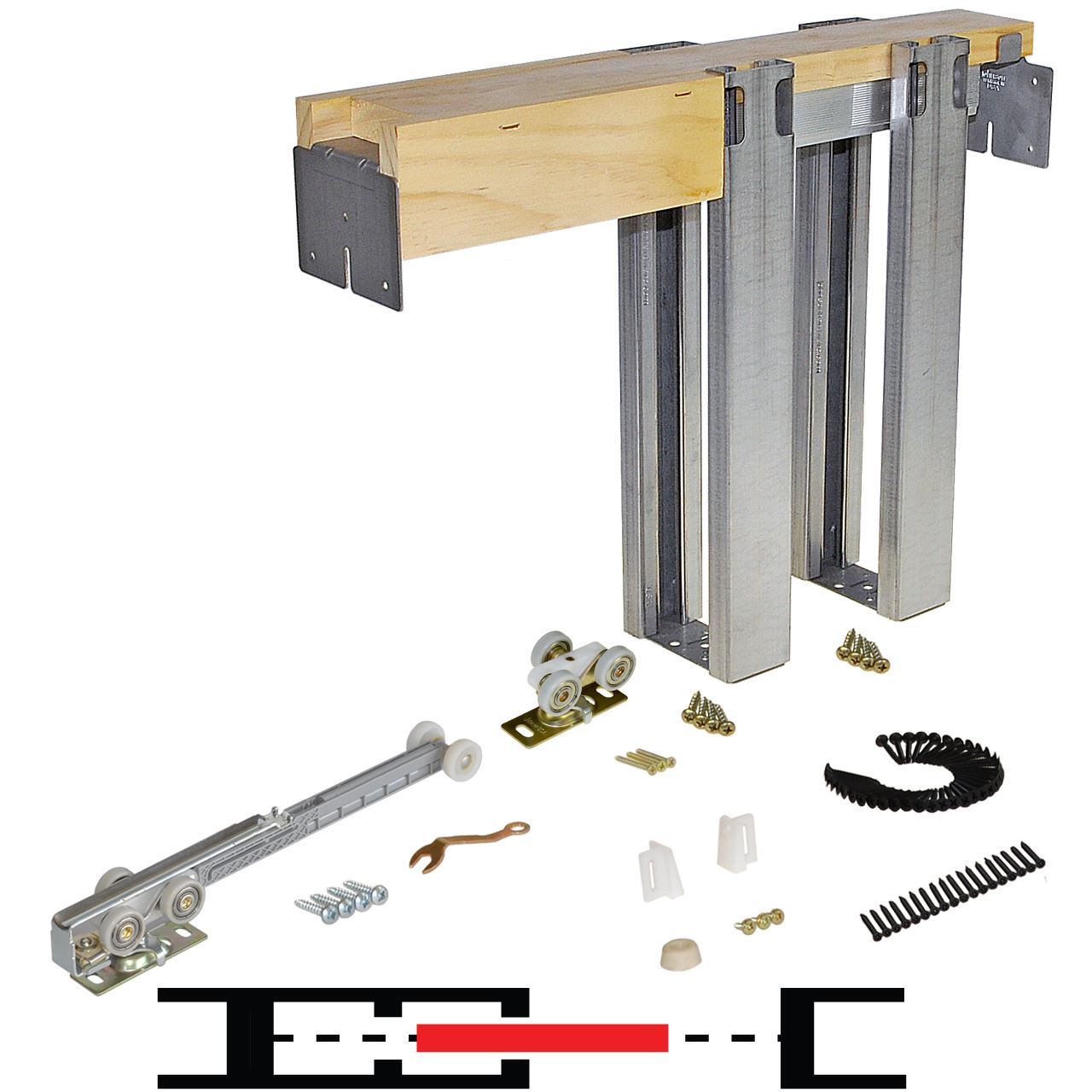

Products specifications
| Max. Weight Per Door | 200lbs. [91kg] |
| Max. Door Width | 24" (2'- 0") [609mm] |
| Max. Door Height | 84" (7'-0") [2134mm] |
| Door Thickness | (*SINGLE DIRECTION SOFT OPERATION ONLY)1" [25mm] to 1-3/4" [44mm] |
| Min. Wall Structure Thickness | 3-1/2" (2 x 4) [89mm] |
| Frame Header Material | Spruce, Pine or Fir (#3 or better) |
| Series Track | 100 |
| Track Profile | Box Track |
| Track Material | 6063T6 Extruded Aluminum |
| Track Finish | Mill Aluminum |
| Split Stud Construction | 18 Gauge Cold Rolled Galvanized Steel |
| Hanger Type | Top Mount, Soft-Close |
| Wheel Type | Nylon Encapsulated Sealed Ball Bearing |
| Wheel Dia. | 1" |
| Steel Components | 12-14 Gauge |
| Steel Component Finish | Zinc Trivalent Plated |
| Product Grade | Commercial/Residential |
| Packaging | Single Packed, Reinforced Corrugated Box |
| Country of Origin | U.S.A. |
