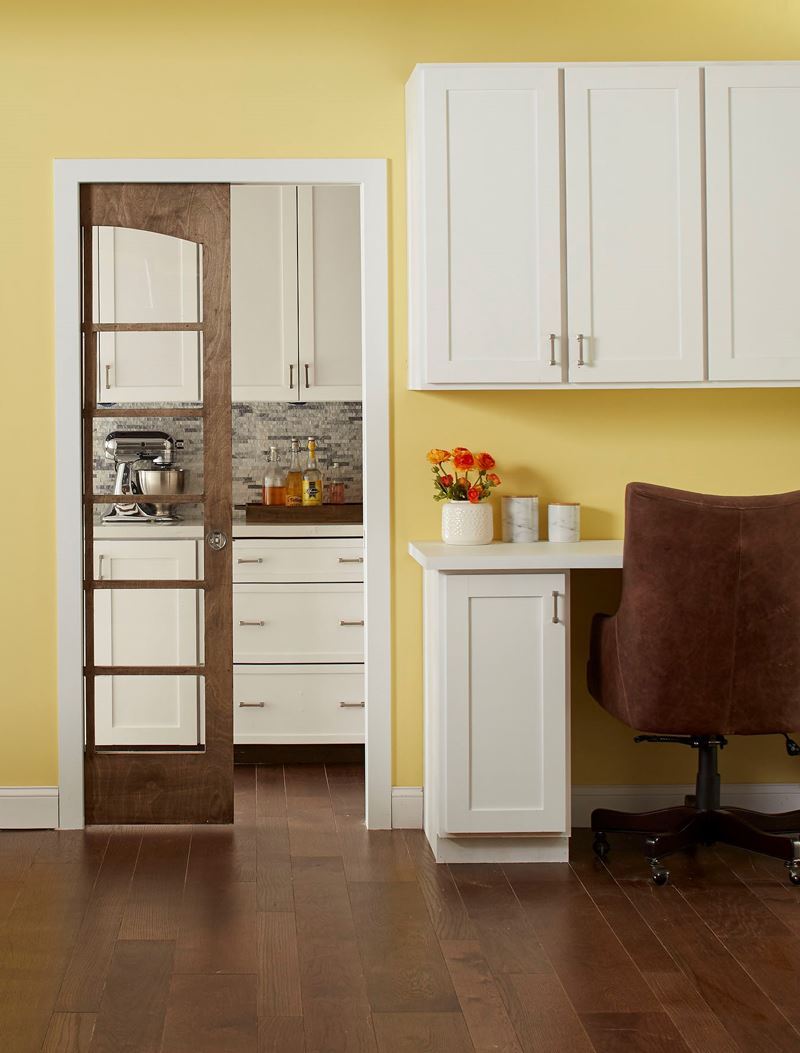

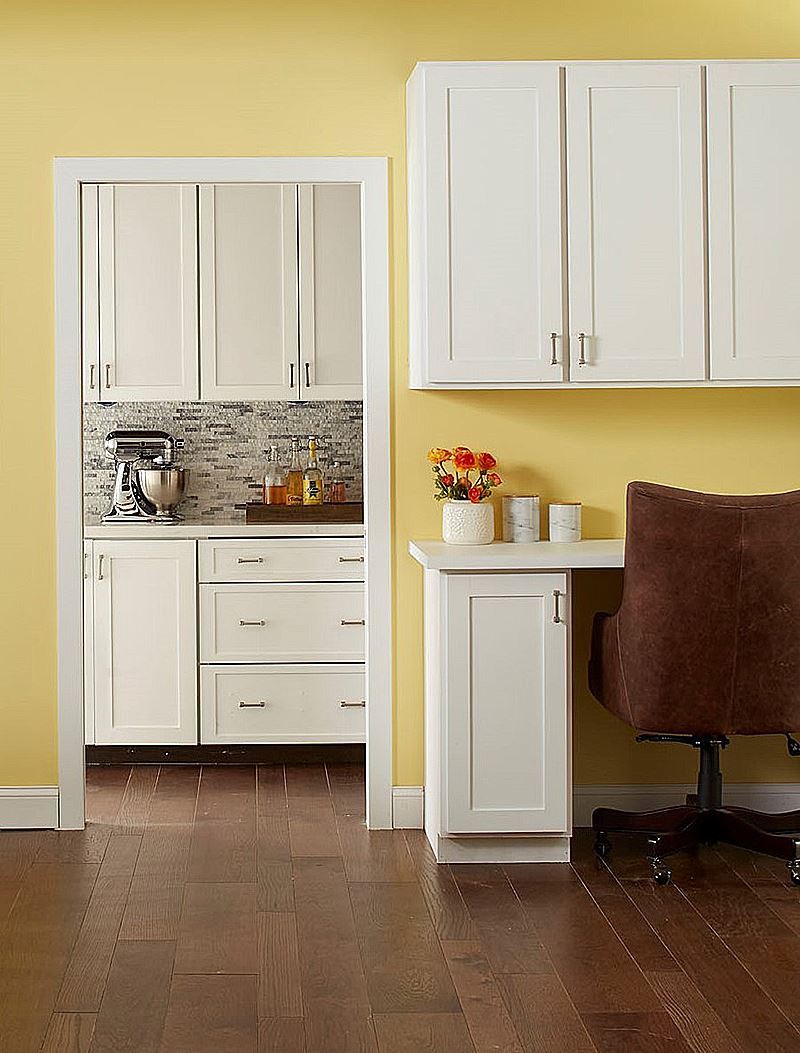

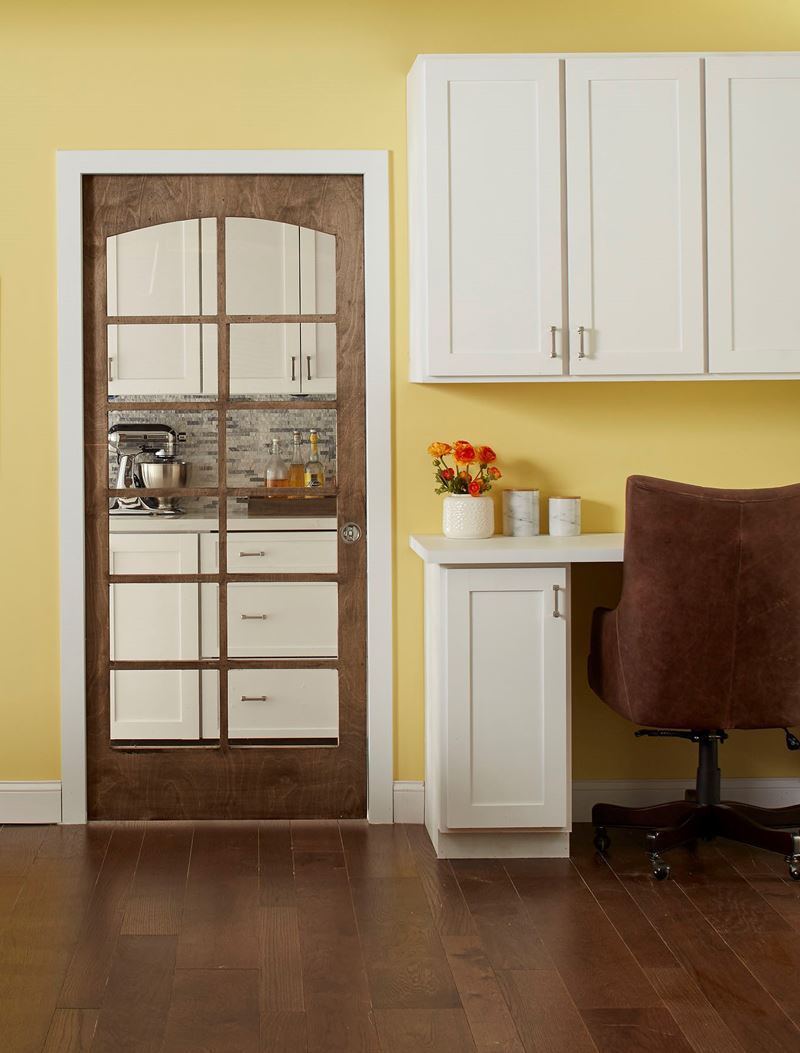

Picture of 1500PF Series Pocket Door Frames
Picture of 1500PF Series Pocket Door Frames Picture of 1500PF Series Pocket Door Frames Picture of 1500PF Series Pocket Door Frames Picture of 1500PF Series Pocket Door Frames

1500PF Series Pocket Door Frames

  • 125lbs [57kg] Max. per door

  • 36" 3/0 [914mm] Max. Door Width

  • 80" 6/8 [2032mm] Max. Door Height

  • 1" [25mm] - 1-3/4 [44mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

  • Soft-Operation See 1500SC Frames

    • 1500PF Installation Instructions

    Products specifications
    Max. Weight Per Door125lbs. [57kg]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
    Max. Door Width36" (3'- 0") [914mm]
    Max. Door Height80" (6'- 8") [2032mm]
    Door Thickness1" [25mm] to 1-3/4" [44mm]
    Frame Header MaterialSpruce, Pine or Fir (#3 or better)
    Split Stud Construction18 Gauge Cold Rolled Galvanized Steel

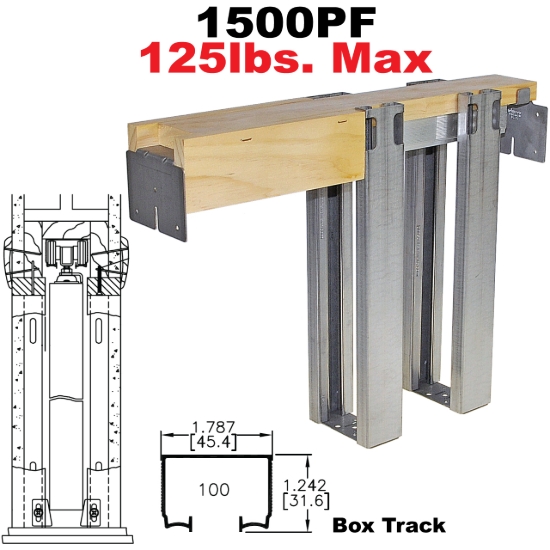

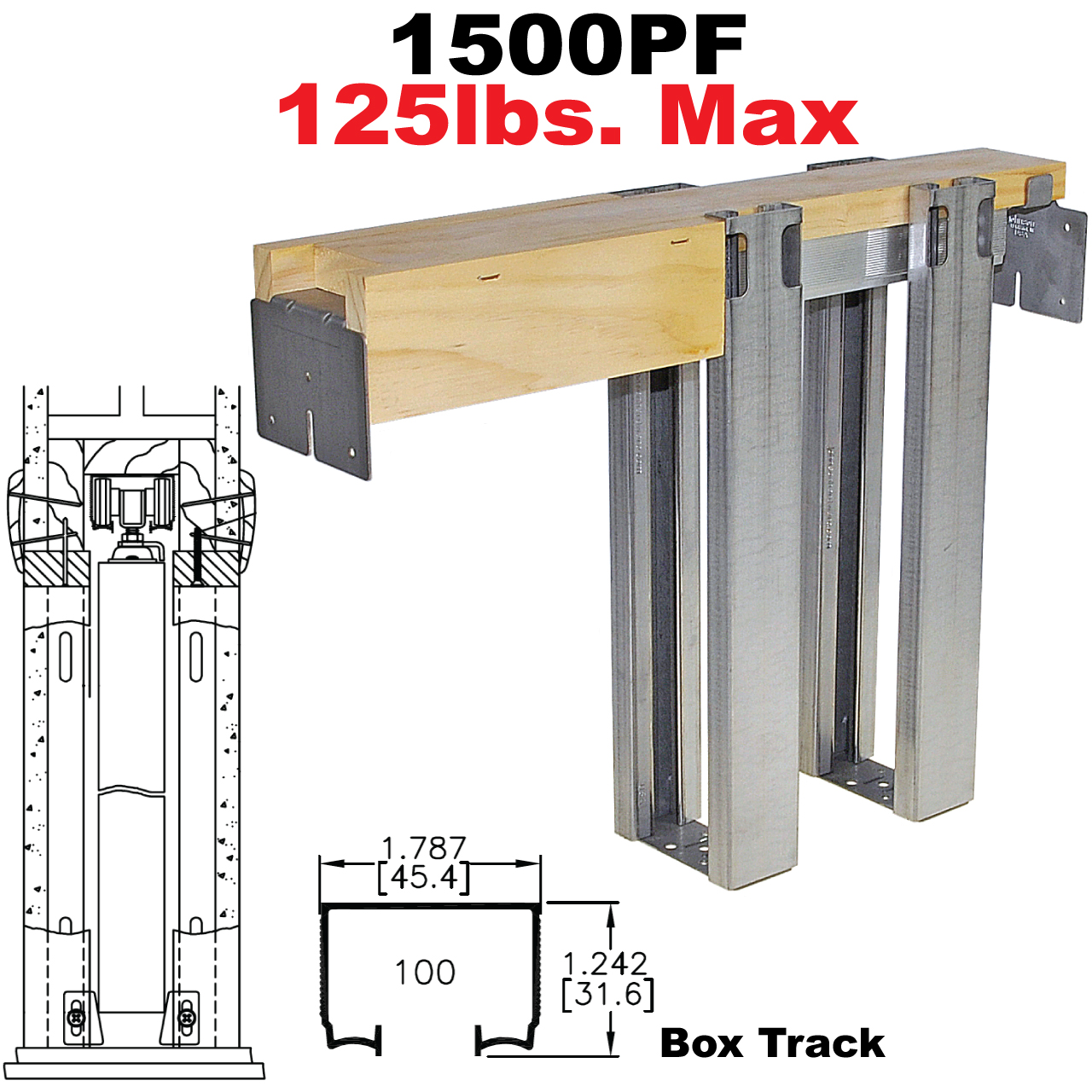

    Track ProfileBox Track
    Track Material6063T6 Extruded Aluminum
    Track FinishMill Aluminum
    Wheel Dia.1"
    Wheel TypeMachine Turned and Balanced Nylon, Factory Greased
    Steel Components12-14 Gauge
    Steel Component FinishZinc Trivalent Plated
    ApplicationInterior Residential/Commercial
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door125lbs. [57kg]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
    Max. Door Width36" (3'- 0") [914mm]
    Max. Door Height80" (6'- 8") [2032mm]
    Door Thickness1" [25mm] to 1-3/4" [44mm]
    Frame Header MaterialSpruce, Pine or Fir (#3 or better)
    Split Stud Construction18 Gauge Cold Rolled Galvanized Steel
    Track ProfileBox Track
    Track Material6063T6 Extruded Aluminum
    Track FinishMill Aluminum
    Wheel Dia.1"
    Wheel TypeMachine Turned and Balanced Nylon, Factory Greased
    Steel Components12-14 Gauge
    Steel Component FinishZinc Trivalent Plated
    ApplicationInterior Residential/Commercial
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
